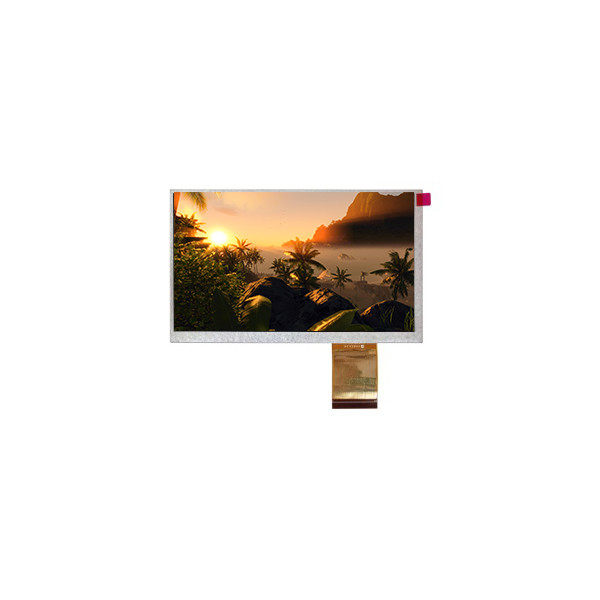

TM070RVHG01-02 800*480 7.0 inch 262K LCD SCREEN Panel module

All Category

Floor Standing Digital Signage

TM070RVHG01-02 800*480 7.0 inch 262K LCD SCREEN Panel module

Brand Name:	TIANMA
Model Number:	TM070RVHG01-02
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TM070RVHG01-02

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

800(RGB)×480, WVGA 134PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

154.08(W)×85.92(H) Mm

Application:

Industrial

Touch Screen:

PCAP, Air Bonding, I²C

Supply Ability:

100000 Unit/Units per Month

Product Description

TM070RVHG01-02 800*480 7.0 inch 262K LCD SCREEN Panel module

TM070RVHG01-02 LCD Panel Product details :

Brand	TIANMA
Model P/N	TM070RVHG01-02
Diagonal Size	7.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×480, WVGA 134PPI
Pixel Format	RGB Vertical Stripe
Active Area	154.08(W)×85.92(H) mm
Bezel Opening	157.08(W)×89.39(H) mm
Outline Dim.	171.5(H)×110.3(V)×7.65(D)mm
Treatment	Hard coating (3H), Reflection 4.0% (Max.)
Luminance	300 cd/m² (Typ.)
Contrast Ratio	500:1 (Typ.) (TM)
View Direction	12 o'clock
Response Time	20 (Typ.)(Tr+Td)
Viewing Angle	70/70/60/70 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	262K/16.7M 50%NTSC
Light Source	WLED [3S8P], 30K hours, W/O Driver
Weight	216g (Typ.)
Designed For	Industrial
Frame Rate	60Hz
Touch Panel	PCAP, Air Bonding, I²C
Interface Type	Parallel RGB (1 ch, 6/8-bit), 50 pinsFPC
Power Supply	3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGG/VEE)
Environment	Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C
TM070RVHG01-02 800*480 7.0 inch 262K LCD SCREEN Panel module

TM070RVHG01-02 LCD Panel Note :

Model Verification:

Please ensure that the model number you need is exactly the same as the model number you have ordered. We will ship the LCD panel based strictly on the model specified in your order. Ensuring the correct model number is crucial to avoid any compatibility issues.

Comprehensive Testing:

We conduct 100% testing on each LCD panel to ensure it meets our stringent quality standards. This thorough testing process guarantees that you receive a fully functional and reliable product. Our commitment to quality ensures that each panel is meticulously checked before it is shipped to you.

TM070RVHG01-02 LCD Panel Shipping and Package :

TM070RVHG01-02 800*480 7.0 inch 262K LCD SCREEN Panel module 0

TM070RVHG01-02 LCD Panel Shipping Guidelines:

Address Confirmation:

It is crucial to verify that the shipping address provided in your order is accurate. We will ship the LCD panel to the address listed in the order. If you need the panel to be shipped to a different address, please email us the new address immediately after making the payment to avoid any shipping errors.

Shipment Timeline:

Your order will be processed and shipped within three business days after we have received your payment. Please note that business days do not include weekends or public holidays, so take this into account when estimating your delivery date.

TM070RVHG01-02 LCD Panel ESTIMATED DELIVERY TIME :

Standard Shipping:

The estimated delivery time for standard shipping is between 10 to 35 working days. This timeframe may vary depending on the destination and other factors such as customs processing and local postal services.

Expedited Shipping:

For a faster delivery option, expedited shipping is available with an estimated delivery time of 4 to 7 working days. This option is ideal if you need the LCD panel urgently and prefer a quicker shipping method.

TM070RVHG01-02 LCD Panel FAQ :

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: How long will I receive my goods TM070RVHG01-02 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: Can you give me a discount if I need a large quantity of TM070RVHG01-02 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can You declare my order of TM070RVHG01-02 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .
