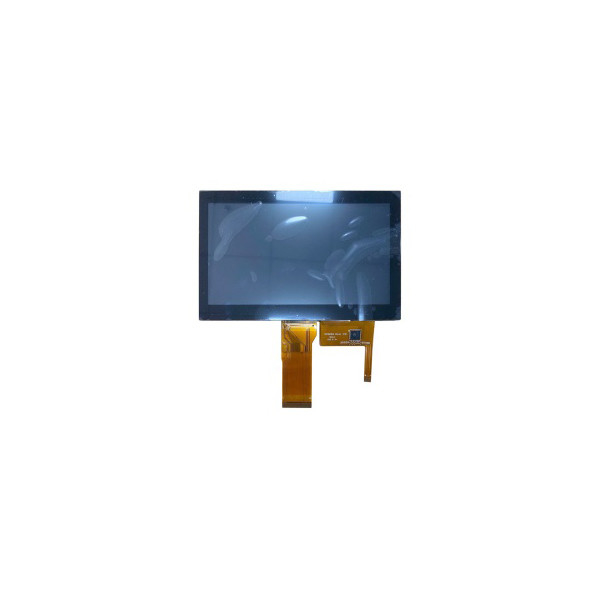

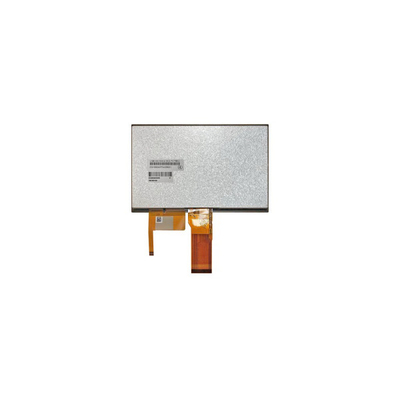

TM070RVHG01-00 800*480 7.0 inch PCAP LCD SCREEN Monitor

All Category

Floor Standing Digital Signage

TM070RVHG01-00 800*480 7.0 inch PCAP LCD SCREEN Monitor

Brand Name:	TIANMA
Model Number:	TM070RVHG01-00
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TM070RVHG01-00

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

800(RGB)×480, WVGA 134PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

154.08(W)×85.92(H) Mm

Application:

Industrial

Touch Screen:

PCAP, Air Bonding, I²C

Supply Ability:

100000 Unit/Units per Month

Product Description

TM070RVHG01-00 800*480 7.0 inch PCAP LCD SCREEN Monitor

TM070RVHG01-00 LCD Panel Product details :

Brand	TIANMA
Model P/N	TM070RVHG01-00
Diagonal Size	7.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×480, WVGA 134PPI
Pixel Format	RGB Vertical Stripe
Active Area	154.08(W)×85.92(H) mm
Bezel Opening	157.08(W)×89.39(H) mm
Outline (mm)	171.5×110.3×7.65 (H×V×D)
Treatment	Hard coating (3H), Reflection 4.0% (Max.)
Luminance	300 cd/m² (Typ.)
Contrast Ratio	500 : 1 (Typ.) (TM)
Viewing Angle	70/70/60/70 (Typ.)(CR≥10)
Response	20 (Typ.)(Tr+Td) ms
Good View at	12 o'clock
Work Mode	TN, Normally White, Transmissive
Color Depth	262K/16.7M 50%NTSC
Backlight	3S8PWLED, 30K hours, No Driver
Mass	216g (Typ.)
Used for	Industrial
Refresh Rate	60Hz
Touchscreen	PCAP, Air Bonding, I²C
Signal Type	Parallel RGB (1 ch, 6/8-bit), FPC50 pins
Voltage Supply	3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGG/VEE)
Max. Ratings	Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C
TM070RVHG01-00 800*480 7.0 inch PCAP LCD SCREEN Monitor

TM070RVHG01-00 LCD Panel Note :

Model Verification:

Please ensure that the model number you need is exactly the same as the model number you have ordered. We will ship the LCD panel based strictly on the model specified in your order. Ensuring the correct model number is crucial to avoid any compatibility issues.

Comprehensive Testing:

We conduct 100% testing on each LCD panel to ensure it meets our stringent quality standards. This thorough testing process guarantees that you receive a fully functional and reliable product. Our commitment to quality ensures that each panel is meticulously checked before it is shipped to you.

TM070RVHG01-00 LCD Panel Shipping and Package :

TM070RVHG01-00 800*480 7.0 inch PCAP LCD SCREEN Monitor 0

TM070RVHG01-00 LCD Panel Shipping Guidelines:

Address Confirmation:

It is crucial to verify that the shipping address provided in your order is accurate. We will ship the LCD panel to the address listed in the order. If you need the panel to be shipped to a different address, please email us the new address immediately after making the payment to avoid any shipping errors.

Shipment Timeline:

Your order will be processed and shipped within three business days after we have received your payment. Please note that business days do not include weekends or public holidays, so take this into account when estimating your delivery date.

TM070RVHG01-00 LCD Panel ESTIMATED DELIVERY TIME :

Standard Shipping:

The estimated delivery time for standard shipping is between 10 to 35 working days. This timeframe may vary depending on the destination and other factors such as customs processing and local postal services.

Expedited Shipping:

For a faster delivery option, expedited shipping is available with an estimated delivery time of 4 to 7 working days. This option is ideal if you need the LCD panel urgently and prefer a quicker shipping method.

TM070RVHG01-00 LCD Panel FAQ :

Q: Are you manufactory or trade company?

A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.

Q: Can you declared low value for my order when shipping?

A: Yes, We can do it for you if you need.

Q: How to do if I can't find the screen that I require in your listings?

A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .

Q: Why big order delivery time are long?

A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
