Industrial LCD Panel Display

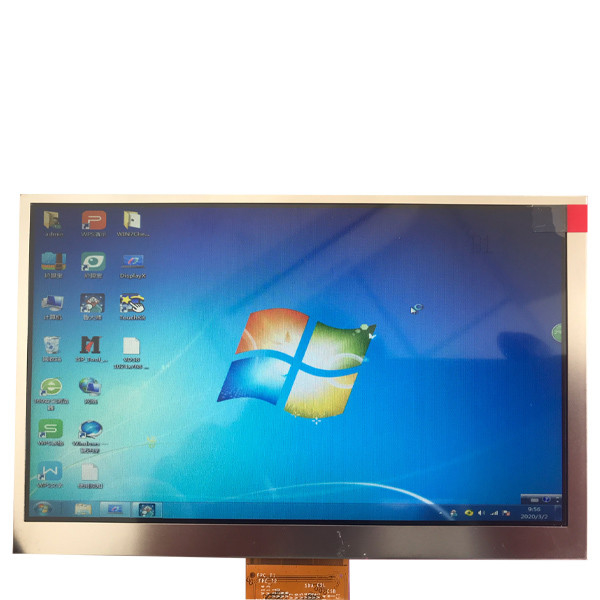

7.0 inch TM070DDHG03-40 1000 : 1 tft lcd panel LCD Screen

All Category

Floor Standing Digital Signage

7.0 inch TM070DDHG03-40 1000 : 1 tft lcd panel LCD Screen

Brand Name:	TIANMA
Model Number:	TM070DDHG03-40
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TM070DDHG03-40

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1024(RGB)×600, WSVGA 169PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

153.6(W)×90(H) Mm

Signal Type:

LVDS (1 Ch, 6/8-bit) , 40 Pins FPC

Color Depth:

262K/16.7M 51% NTSC

Supply Ability:

100000 Unit/Units per Month

Product Description

7.0 inch TM070DDHG03-40 1000 : 1 tft lcd panel LCD Screen

TM070DDHG03-40 LCD Panel Product details :

TIANMA LCD SCREEN TM070DDHG03-40
Manufacturer	TIANMA
Model Name	TM070DDHG03-40
Screen Size	7.0 inch
Screen Type	LCM , a-Si TFT-LCD
Pixel Number	1024(RGB)×600 (WSVGA) 169PPI
Arrangement	RGB Vertical Stripe
Active Area(mm)	153.6 × 90 (H×V)
Outline(mm)	165.75 × 105.39 × 3.7 (H×V×D)
Bezel Area(mm)	156.2 × 92.6 (H×V)
Luminance	320 cd/m² (Typ.)
Contrast Ratio	1000 : 1 (Typ.) (TM)
Viewing Angle	75/75/70/75 (Typ.)(CR≥10)
Response	20 (Typ.)(Tr+Td) ms
Work Mode	TN, Normally White, Transmissive
Color Depth	262K/16.7M 51% NTSC
Backlight	3S6P WLED , 15K hours , No Driver
Mass	111.7g (Typ.)
Signal Type	LVDS (1 ch, 6/8-bit) , 40 pins FPC
Voltage Supply	3.3/10.0/16.0/-6.8V (Typ.)(VDD/AVDD/VGH/VGL)
Max. Ratings	Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C
7.0 inch TM070DDHG03-40 1000 : 1 tft lcd panel LCD Screen

TM070DDHG03-40 LCD Panel Note :

Model Verification:

Please ensure that the model number you need is exactly the same as the model number you have ordered. We will ship the LCD panel based strictly on the model specified in your order. Ensuring the correct model number is crucial to avoid any compatibility issues.

Comprehensive Testing:

We conduct 100% testing on each LCD panel to ensure it meets our stringent quality standards. This thorough testing process guarantees that you receive a fully functional and reliable product. Our commitment to quality ensures that each panel is meticulously checked before it is shipped to you.

TM070DDHG03-40 LCD Panel Shipping and Package :

7.0 inch TM070DDHG03-40 1000 : 1 tft lcd panel LCD Screen 0

TM070DDHG03-40 LCD Panel Shipping Guidelines:

Address Confirmation:

It is crucial to verify that the shipping address provided in your order is accurate. We will ship the LCD panel to the address listed in the order. If you need the panel to be shipped to a different address, please email us the new address immediately after making the payment to avoid any shipping errors.

Shipment Timeline:

Your order will be processed and shipped within three business days after we have received your payment. Please note that business days do not include weekends or public holidays, so take this into account when estimating your delivery date.

TM070DDHG03-40 LCD Panel ESTIMATED DELIVERY TIME :

Standard Shipping:

The estimated delivery time for standard shipping is between 10 to 35 working days. This timeframe may vary depending on the destination and other factors such as customs processing and local postal services.

Expedited Shipping:

For a faster delivery option, expedited shipping is available with an estimated delivery time of 4 to 7 working days. This option is ideal if you need the LCD panel urgently and prefer a quicker shipping method.

TM070DDHG03-40 LCD Panel FAQ :

Q:Can you declared low value for my order when shipping?

A:Yes, We can do it for you if you need.

Q: What happen if the lcd panel TM070DDHG03-40 I received can't work ?

A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.

Q: How to do if I can't find the screen that I require in your listings?

A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .

Q: Why big order delivery time are long?

A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
