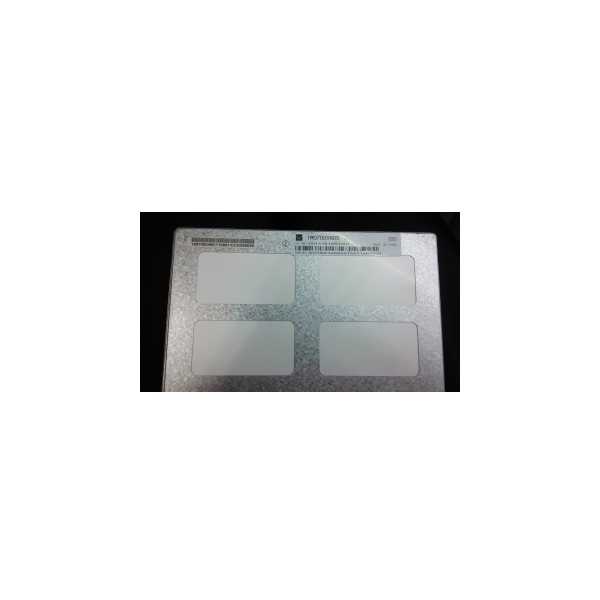

original 7.0 inch TM070DDH03 LCD Screen lcd for Automotive

All Category

Floor Standing Digital Signage

original 7.0 inch TM070DDH03 LCD Screen lcd for Automotive

Brand Name:	TIANMA
Model Number:	TM070DDH03
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TM070DDH03

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1024(RGB)×600, WSVGA 169PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

153.6(W)×90(H) Mm

Application:

Industrial、Automotive Display

Touch Screen:

Without

Supply Ability:

100000 Unit/Units per Month

Product Description

original 7.0 inch TM070DDH03 LCD Screen lcd for Automotive

TM070DDH03 LCD Panel Product details :

Brand	TIANMA
Model P/N	TM070DDH03
Diagonal Size	7.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)×600, WSVGA 169PPI
Pixel Format	RGB Vertical Stripe
Active Area	153.6(W)×90(H) mm
Bezel Opening	156.2(W)×92.6(H) mm
Outline Size	165.75(W)×105.39(H)×3.7(D) mm
Brightness	320 cd/m² (Typ.)
Viewing Angle	75/75/70/75 (Typ.)(CR≥10)
Best View on	12 o'clock
Display Colors	262K/16.7M 50%NTSC
Frequency	60Hz
Weight	112g (Typ.)
Surface	Antiglare
Contrast Ratio	500:1 (Typ.) (TM)
Display Mode	TN, Normally White, Transmissive
Response Time	20 (Typ.)(Tr+Td)
Lamp Type	3S6P WLED , 15K hours , Without Driver
Touch Screen	Without
Application	Industrial,Automotive Display
Signal Interface	LVDS (1 ch, 6/8-bit), 40 pinsFPC
Input Voltage	3.3/11.0/20.0/-6.8V (Typ.)(VDD/AVDD/VGH/VGL)
Environment	Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C
original 7.0 inch TM070DDH03 LCD Screen lcd for Automotive

TM070DDH03 LCD Panel Note :

Model Verification:

Please ensure that the model number you need is exactly the same as the model number you have ordered. We will ship the LCD panel based strictly on the model specified in your order. Ensuring the correct model number is crucial to avoid any compatibility issues.

Comprehensive Testing:

We conduct 100% testing on each LCD panel to ensure it meets our stringent quality standards. This thorough testing process guarantees that you receive a fully functional and reliable product. Our commitment to quality ensures that each panel is meticulously checked before it is shipped to you.

TM070DDH03 LCD Panel Shipping and Package :

original 7.0 inch TM070DDH03 LCD Screen lcd for Automotive 0

TM070DDH03 LCD Panel Shipping Guidelines:

Address Confirmation:

It is crucial to verify that the shipping address provided in your order is accurate. We will ship the LCD panel to the address listed in the order. If you need the panel to be shipped to a different address, please email us the new address immediately after making the payment to avoid any shipping errors.

Shipment Timeline:

Your order will be processed and shipped within three business days after we have received your payment. Please note that business days do not include weekends or public holidays, so take this into account when estimating your delivery date.

TM070DDH03 LCD Panel ESTIMATED DELIVERY TIME :

Standard Shipping:

The estimated delivery time for standard shipping is between 10 to 35 working days. This timeframe may vary depending on the destination and other factors such as customs processing and local postal services.

Expedited Shipping:

For a faster delivery option, expedited shipping is available with an estimated delivery time of 4 to 7 working days. This option is ideal if you need the LCD panel urgently and prefer a quicker shipping method.

TM070DDH03 LCD Panel FAQ :

Q: Can you give me a discount if I need a large quantity of TM070DDH03 ?

A: Of course!If you make a large order, we will give you a discount.

Q: How can I trace my order of TM070DDH03 ?

A: we will give you tracking number then you can trace your order from website.

Q: If I place order now,when will you ship the goods of TM070DDH03 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Do you accept sample orders of TM070DDH03 ?

A: Of course!sample order is welcome !
