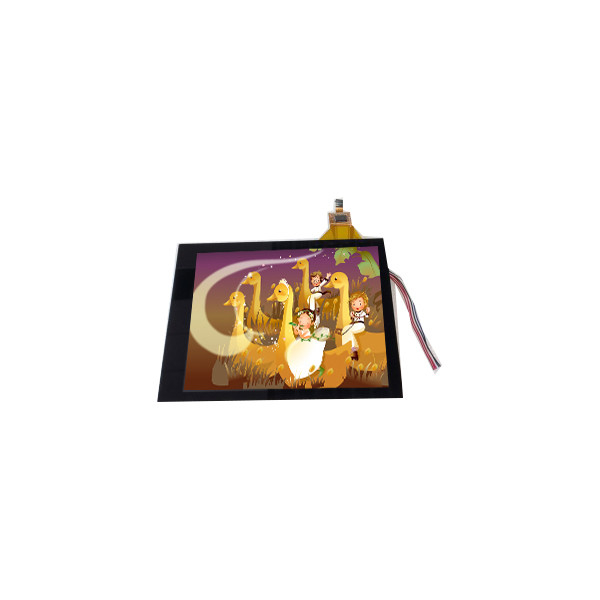

640*480 TM057QVHG01 5.7 inch PCAP LCD Screen lcd Panel

Brand Name:	TIANMA
Model Number:	TM057QVHG01
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TM057QVHG01

Diagonal Size:

Panel Type:

A-Si TFT-LCD, CELL, Full Cell

Resolution:

640(RGB)×480, VGA 141PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

115.2(W)×86.4(H) Mm

Application:

Industrial

Touch Screen:

PCAP, I²C

Supply Ability:

100000 Unit/Units per Month

Product Description

640*480 TM057QVHG01 5.7 inch PCAP LCD Screen lcd Panel

TM057QVHG01 LCD Panel Product details :

Brand	TIANMA
Model P/N	TM057QVHG01
Diagonal Size	5.7"
Panel Type	a-Si TFT-LCD, LCM
Resolution	640(RGB)×480, VGA 141PPI
Pixel Format	RGB Vertical Stripe
Active Area	115.2(W)×86.4(H) mm
Bezel Opening	116.6(W)×87.8(H) mm
Outline Dim.	144(H)×104.6(V)×14.15(D) mm
Treatment	-
Luminance	300 cd/m² (Typ.)
Contrast Ratio	500:1 (Typ.) (TM)
View Direction	6 o'clock
Response Time	20 (Typ.)(Tr+Td)
Viewing Angle	70/70/70/60 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	262K 50%NTSC
Light Source	WLED [7S3P], 50K hours, W/O Driver
Weight	TBD
Designed For	Industrial
Frame Rate	60Hz
Touch Panel	PCAP, I²C
Interface Type	Parallel RGB (1 ch, 6-bit), 33 pinsConnector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: -20 ~ 70 °C; Storage Temperature: -30 ~ 80 °C
640*480 TM057QVHG01 5.7 inch PCAP LCD Screen lcd Panel

TM057QVHG01 LCD Panel Note :

Model Verification:

Please ensure that the model number you need is exactly the same as the model number you have ordered. We will ship the LCD panel based strictly on the model specified in your order. Ensuring the correct model number is crucial to avoid any compatibility issues.

Comprehensive Testing:

We conduct 100% testing on each LCD panel to ensure it meets our stringent quality standards. This thorough testing process guarantees that you receive a fully functional and reliable product. Our commitment to quality ensures that each panel is meticulously checked before it is shipped to you.

TM057QVHG01 LCD Panel Shipping and Package :

640*480 TM057QVHG01 5.7 inch PCAP LCD Screen lcd Panel 0

TM057QVHG01 LCD Panel Shipping Guidelines:

Address Confirmation:

It is crucial to verify that the shipping address provided in your order is accurate. We will ship the LCD panel to the address listed in the order. If you need the panel to be shipped to a different address, please email us the new address immediately after making the payment to avoid any shipping errors.

Shipment Timeline:

Your order will be processed and shipped within three business days after we have received your payment. Please note that business days do not include weekends or public holidays, so take this into account when estimating your delivery date.

TM057QVHG01 LCD Panel ESTIMATED DELIVERY TIME :

Standard Shipping:

The estimated delivery time for standard shipping is between 10 to 35 working days. This timeframe may vary depending on the destination and other factors such as customs processing and local postal services.

Expedited Shipping:

For a faster delivery option, expedited shipping is available with an estimated delivery time of 4 to 7 working days. This option is ideal if you need the LCD panel urgently and prefer a quicker shipping method.

TM057QVHG01 LCD Panel FAQ :

Q: If I place order now,when will you ship the goods of TM057QVHG01 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Can I pay my order of TM057QVHG01 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: Can You declare my order of TM057QVHG01 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How long will I receive my goods TM057QVHG01 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
