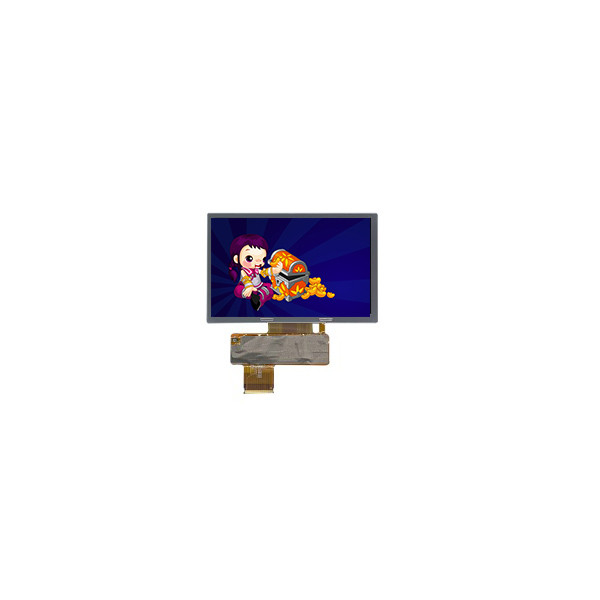

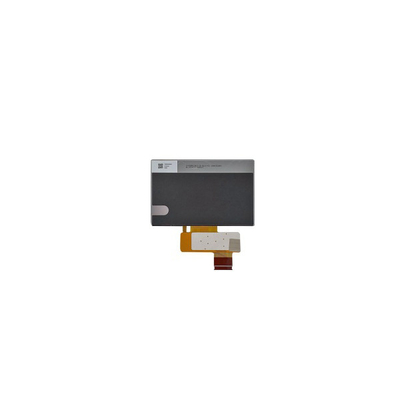

5.0 inch TM050RDZG03-30 800*480 40 pins lcd screen display
Product Details:
| Place of Origin: | China |
| Brand Name: | TIANMA |
| Model Number: | TM050RDZG03-30 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TM050RDZG03-30 | Diagonal Size: | 5.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 800(RGB)×480, WVGA, 188PPI |
| Pixel Format: | RGBW Vertical Stripe | Active Area: | 108(W)×64.8(H) Mm |
| Used For: | Industrial | Touch Panel: | Without |
Product Description
5.0 inch TM050RDZG03-30 800*480 40 pins lcd screen display
TM050RDZG03-30 LCD Panel Product details :
| Brand | TIANMA |
| Model P/N | TM050RDZG03-30 |
| Diagonal Size | 5.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 188PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 108(W)×64.8(H) mm |
| Bezel Opening | 111.1(W)×67.9(H) mm |
| Outline Dim. | 120.7(H)×77.8(V)×5.9(D)mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 1000 cd/m² (Typ.) |
| Contrast Ratio | 600:1 (Typ.) (TM) |
| View Direction | 12 o'clock |
| Response Time | 20/30 (Typ./Max.)(Tr+Td) |
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 16.7M 50%NTSC |
| Light Source | WLED [3S6P], 50K hours |
| Weight | TBD |
| Designed For | Industrial |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | Parallel RGB (1 ch, 8-bit), 40 pinsFPC |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 90 °C |
| 5.0 inch TM050RDZG03-30 800*480 40 pins lcd screen display | |
TM050RDZG03-30 LCD Display Features :
High Quality:
Highest quality touch LCD screen replacement parts.
Repair Utility:
Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.
Thorough Testing:
Each assembly is tested before shipping to ensure 100% functionality.
Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.
TM050RDZG03-30 LCD Panel Shipping and Package :
TM050RDZG03-30 LCD Display Shipping Policy :
Shipping Method:
If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.
Specified Logistics:
If you require a specific logistics company, please inform us in advance.
TM050RDZG03-30 LCD Display Return Policy :
Product Status:
The product's condition (new or old) will be indicated in the product title.
Return and Exchange Conditions:
If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.
Return Procedure:
When returning the product, please provide a detailed explanation of the issues encountered.
Include actual photos showing the problems with the product.
TM050RDZG03-30 LCD Panel FAQ :
Q: Can I pay my order of TM050RDZG03-30 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: If I place order now,when will you ship the goods of TM050RDZG03-30 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How to make payment of TM050RDZG03-30 ?
A: We accept T/T , Paypal , western union .
Q: Do you accept sample orders of TM050RDZG03-30 ?
A: Of course!sample order is welcome !
