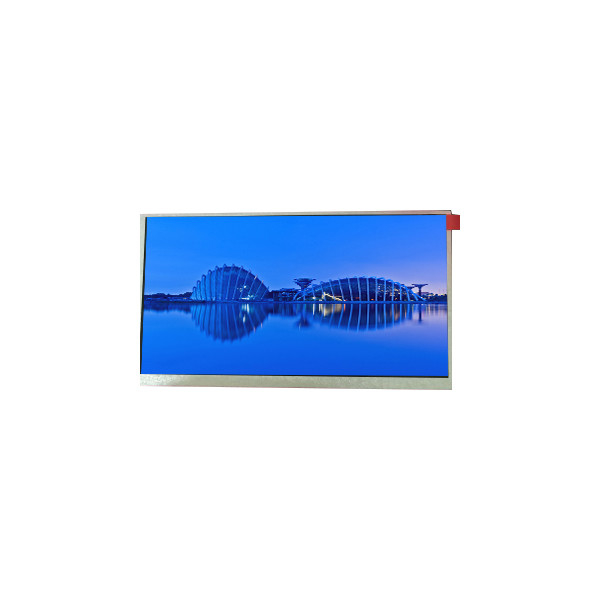

Name: 7.0 inch TM070DYH02 1024*600 TFT lcd display screen
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: TM070DYH02
Availability: InStock

Brand Name:	AVIC
Model Number:	TM070DYH02
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TM070DYH02

Diagonal Size:

7.0"

Panel Type:

A-Si TFT-LCD, CELL, Q-CUT (Full Cell)

Resolution:

1024(RGB)×600, WSVGA 169PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

153.6(W)×90(H) Mm

Application:

Netbook PC、Digital Photo Frame、Portable DVD Player

Max. Ratings:

Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C

Treatment:

Without Polarizer

Work Mode:

TN, Normally White, Transmissive

Supply Ability:

100000 Unit/Units per Month

Product Description

7.0 inch TM070DYH02 1024*600 TFT lcd display screen

TM070DYH02 LCD Panel Product details :

Brand	AVIC
Model P/N	TM070DYH02
Diagonal Size	7.0"
Panel Type	a-Si TFT-LCD, CELL, Q-CUT (Full Cell)
Resolution	1024(RGB)×600, WSVGA 169PPI
Pixel Format	RGB Vertical Stripe
Active Area	153.6(W)×90(H) mm
Bezel Opening	-
Outline(mm)	159.3(W)×100.5(H)×1(D)
Luminance	0 (cd/m²)
Viewing Angle	75/75/70/75 (Typ.)(CR≥10)
Good View at	6 o'clock
Glass Thickness	0.50+0.50 mm
Color Depth	16.7M 50% NTSC
Outline Shape	-
Refresh Rate	60Hz
Treatment	Without Polarizer
Contrast Ratio	500 : 1 (Typ.) (TM)
Work Mode	TN, Normally White, Transmissive
Response	25 (Typ.)(Tr+Td) ms
Transmissivity	4.8% (Typ.)(with Polarizer)
Backlight	No B/L
Used for	Netbook PC,Digital Photo Frame,Portable DVD Player
Touchscreen	Without
Driver IC list	SuggestCOGHX8677-G + HX8282-A
Max. Ratings	Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C

TM070DYH02 LCD Display Features :

High Quality:

Highest quality touch LCD screen replacement parts.

Repair Utility:

Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.

Thorough Testing:

Each assembly is tested before shipping to ensure 100% functionality.

Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.

TM070DYH02 LCD Panel Shipping and Package :

7.0 inch TM070DYH02 1024*600 TFT lcd display screen 0

TM070DYH02 LCD Display Shipping Policy :

Shipping Method:

If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.

Specified Logistics:

If you require a specific logistics company, please inform us in advance.

TM070DYH02 LCD Display Return Policy :

Product Status:

The product's condition (new or old) will be indicated in the product title.

Return and Exchange Conditions:

If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.

Return Procedure:

When returning the product, please provide a detailed explanation of the issues encountered.

Include actual photos showing the problems with the product.

TM070DYH02 LCD Panel FAQ :

Q: How do you ship my goods TM070DYH02 ?

A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.

Q: How long is the warranty of TM070DYH02 ?

A: 90days warranty .

Q: Are you manufactory or trade company ?

A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.

Q: Can You declare my order of LCD panel TM070DYH02 at a very low value ?

A: Yes , we can . pls inform us before shipping .
