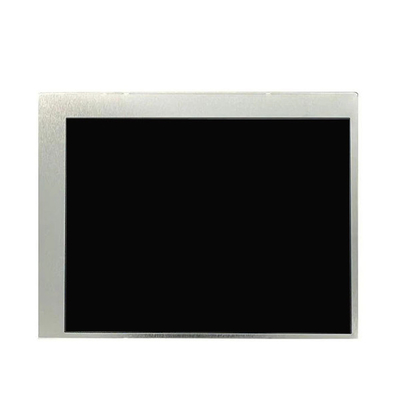

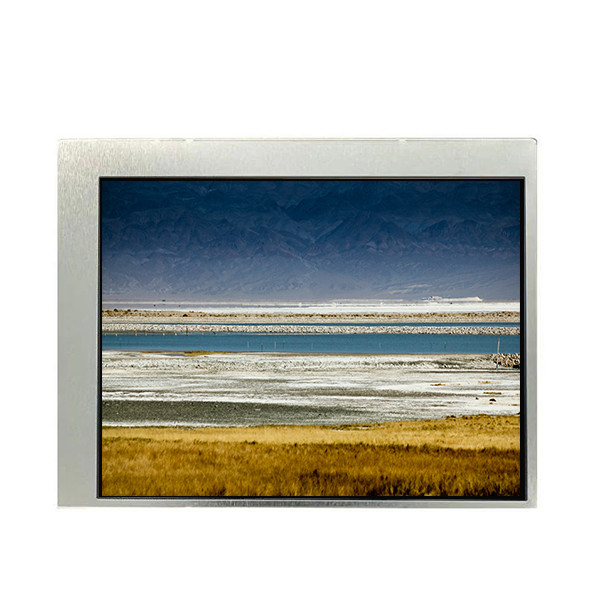

Original 5.7 inch TCG057VGLCAJ-G00 640*480 lcd display for Industrial
Product Details:
| Place of Origin: | China |
| Brand Name: | Kyocera |
| Model Number: | TCG057VGLCAJ-G00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TCG057VGLCAJ-G00 | Diagonal Size: | 5.7" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 640(RGB)×480, VGA 141PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 115.2(W)×86.4(H) Mm |
| Application: | Industrial、Automotive Display | Signal Interface: | Parallel RGB (1 Ch, 6-bit), 33 PinsConnector |
| Input Voltage: | 3.3V (Typ.) | Environment: | Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -40 ~ 80 °C ; Vibration Level: 6.0G (58.8 M/s²) |
Product Description
Original 5.7 inch TCG057VGLCAJ-G00 640*480 lcd display for Industrial
TCG057VGLCAJ-G00 LCD Panel Product details :
| Brand | Kyocera |
| Model P/N | TCG057VGLCAJ-G00 |
| Diagonal Size | 5.7" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 640(RGB)×480, VGA 141PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 115.2(W)×86.4(H) mm |
| Bezel Opening | 118.4(W)×89.6(H) mm |
| Outline Size | 144(W)×104.8(H)×13.5(D) mm |
| Surface | Glare (Haze 0%) |
| Brightness | 600 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White |
| Best View on | - |
| Response Time | 10/25 (Typ.)(Tr/Td) |
| Display Colors | 262K 52%NTSC |
| Lamp Type | WLED, 50K hours, With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | - |
| Application | Industrial,Automotive Display |
| Signal Interface | Parallel RGB (1 ch, 6-bit), 33 pinsConnector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -40 ~ 80 °C ; Vibration Level: 6.0G (58.8 m/s²) |
| TCG057VGLCAJ-G00 5.7 Inch 640(RGB)*480 VGA 141PPI 600 cd/m2 (Typ.) For Industrial | |
TCG057VGLCAJ-G00 LCD Display Features :
High Quality:
Highest quality touch LCD screen replacement parts.
Repair Utility:
Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.
Thorough Testing:
Each assembly is tested before shipping to ensure 100% functionality.
Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.
