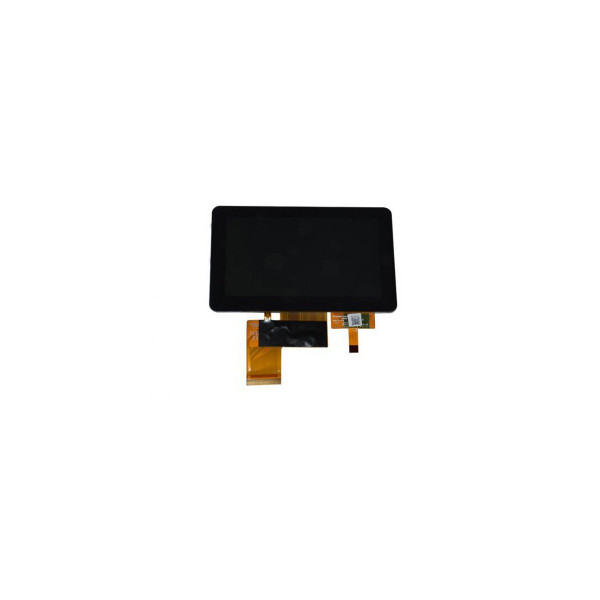

Name: TM043NVHG08 480*272 4.3 inch 60Hz 40 pins lcd display
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: TM043NVHG08
Availability: InStock

Brand Name:	TIANMA
Model Number:	TM043NVHG08
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TM043NVHG08

Diagonal Size:

4.3"

Panel Type:

A-Si TFT-LCD, Assembly

Resolution:

480(RGB)×272, WQVGA 128PPI

Pixel Format:

RGBW Vertical Stripe

Active Area:

95.04(W)×53.856(H) Mm

Application:

Industrial

Touch Screen:

PCAP, I²C

Supply Ability:

100000 Unit/Units per Month

Product Description

TM043NVHG08 480*272 4.3 inch 60Hz 40 pins lcd display

TM043NVHG08 LCD Panel Product details :

Brand	TIANMA
Model P/N	TM043NVHG08
Diagonal Size	4.3"
Panel Type	a-Si TFT-LCD, Assembly
Resolution	480(RGB)×272, WQVGA 128PPI
Pixel Format	RGB Vertical Stripe
Active Area	95.04(W)×53.856(H) mm
Bezel Opening	96.04(W)×54.86(H) mm
Outline Dim.	113.44(H)×71.46(V)×5(D)mm
Treatment	-
Luminance	350 cd/m² (Typ.)
Contrast Ratio	900:1 (Typ.) (TM)
View Direction	6 o'clock
Response Time	20 (Typ.)(Tr/Td)
Viewing Angle	80/80/80/60 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	16.7M 50%NTSC
Light Source	WLED [5S2P], 20K hours, W/O Driver
Weight	TBD
Designed For	Industrial
Frame Rate	60Hz
Touch Panel	PCAP, I²C
Interface Type	Parallel RGB (1 ch, 8-bit), 40 pinsFPC
Power Supply	3.3/7.5V (Typ.)(VDD/VPP)
Environment	Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C
TM043NVHG08 480*272 4.3 inch 60Hz 40 pins lcd display

TM043NVHG08 LCD Display Features :

High Quality:

Highest quality touch LCD screen replacement parts.

Repair Utility:

Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.

Thorough Testing:

Each assembly is tested before shipping to ensure 100% functionality.

Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.

TM043NVHG08 LCD Panel Shipping and Package :

TM043NVHG08 480*272 4.3 inch 60Hz 40 pins lcd display 0

TM043NVHG08 LCD Display Shipping Policy :

Shipping Method:

If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.

Specified Logistics:

If you require a specific logistics company, please inform us in advance.

TM043NVHG08 LCD Display Return Policy :

Product Status:

The product's condition (new or old) will be indicated in the product title.

Return and Exchange Conditions:

If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.

Return Procedure:

When returning the product, please provide a detailed explanation of the issues encountered.

Include actual photos showing the problems with the product.

TM043NVHG08 LCD Panel FAQ :

Q: What does "We may ship a 100% compatible part number for your screen" mean?

A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.

Q: What is the different between original lcd panel and compatible lcd display?

A: Function is the same , Of course the original lcd’s quality and lifetime better than that compatible lcd .

Q: Do you accept the TM043NVHG08 sample order?

A: Yes , sample order is welcome.

Q: How to order if I don’t know the lcd panel number ?

A: You can offer 2-3 photos (back-side and front-side) for your lcd panel ,So that we can check the panel to you.
