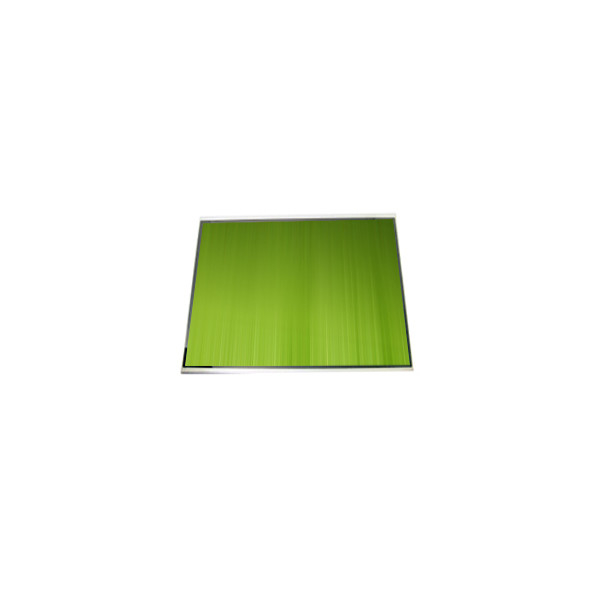

Name: new 720*1280 HSD050BHW1-A00 5.0 inch lcd display LCD Screen
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: HSD050BHW1-A00
Availability: InStock

Brand Name:	HannStar
Model Number:	HSD050BHW1-A00
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

HSD050BHW1-A00

Diagonal Size:

5.0"

Panel Type:

A-Si TFT-LCD, CELL, Q-CUT (Full Cell)

Resolution:

720(RGB)×1280, WXGA 294PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

62.1(W)×110.4(H) Mm

Application:

Mobile Phone

Support Color:

16.7M 70%NTSC

Operating Mode:

IPS Pro, Normally Black, Transmissive

Plate Thickness:

0.40+0.40 Mm

Supply Ability:

100000 Unit/Units per Month

Product Description

new 720*1280 HSD050BHW1-A00 5.0 inch lcd display LCD Screen

HSD050BHW1-A00 LCD Panel Product details :

Brand	HannStar
Model P/N	HSD050BHW1-A00
Diagonal Size	5.0"
Panel Type	a-Si TFT-LCD, CELL, Q-CUT (Full Cell)
Resolution	720(RGB)×1280, WXGA 294PPI
Pixel Format	RGB Vertical Stripe
Active Area	62.1(W)×110.4(H) mm
Bezel Opening	-
Outline Dim.	65.1(H)×118.3(V)×0.8(D) mm
Treatment	Without Polarizer
Luminance	0 cd/m²
Contrast Ratio	800:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	10/20 (Typ.)(Tr/Td)
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Operating Mode	IPS Pro, Normally Black, Transmissive
Plate Thickness	0.40+0.40 mm
Transmittance	3.3% (Typ.)(with Polarizer)
Support Color	16.7M 70%NTSC
Light Source	No B/L
Weight	-
Designed For	Mobile Phone
Frame Rate	-
Touch Panel	Without
D-IC Detail	COG Suggest HX8394-A01, HX8394-B, NT35520, NT35521, OTM1283A, OTM1288A
Environment	Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C

HSD050BHW1-A00 LCD Display Features :

High Quality:

Highest quality touch LCD screen replacement parts.

Repair Utility:

Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.

Thorough Testing:

Each assembly is tested before shipping to ensure 100% functionality.

Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.

HSD050BHW1-A00 LCD Panel Shipping and Package :

new 720*1280 HSD050BHW1-A00 5.0 inch lcd display LCD Screen 0

HSD050BHW1-A00 LCD Display Shipping Policy :

Shipping Method:

If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.

Specified Logistics:

If you require a specific logistics company, please inform us in advance.

HSD050BHW1-A00 LCD Display Return Policy :

Product Status:

The product's condition (new or old) will be indicated in the product title.

Return and Exchange Conditions:

If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.

Return Procedure:

When returning the product, please provide a detailed explanation of the issues encountered.

Include actual photos showing the problems with the product.

HSD050BHW1-A00 LCD Panel FAQ :

Q: Can you test the lcd panel HSD050BHW1-A00 before shipping ?

A: Yes , of course , don't worry , our item was tested ok before shipping .

Q: Do you accept the sample order HSD050BHW1-A00 ?

A: Yes , sample order is welcome.

Q: Can you declared low value of my order HSD050BHW1-A00 ?

A: Yes , we can , you can tell us before shipping .

Q: How long the warranty of lcd HSD050BHW1-A00 ?

A: 90 days .
