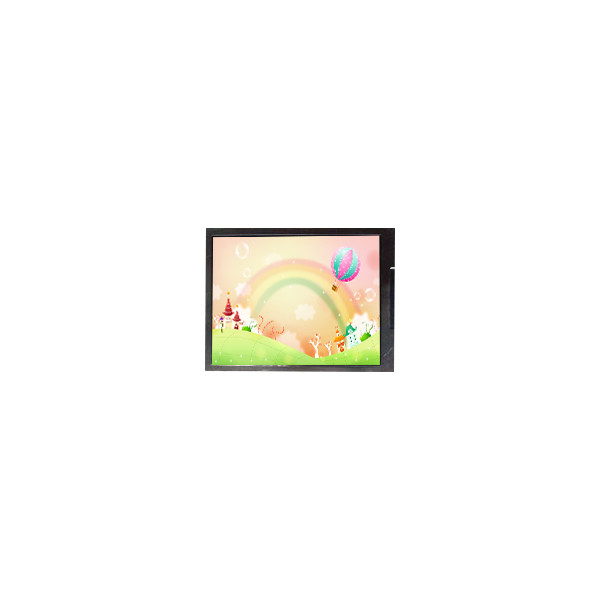

F050A12-602 5.0 inch tft LCD Screen for Mobile Phone
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | F050A12-602 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | F050A12-602 | Diagonal Size: | 5.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, Q-CUT (Full Cell) | Resolution: | 480(RGB)×854, FWVGA 198PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 61.56(W)×109.53(H) Mm |
| Application: | Mobile Phone | Environment: | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| Support Color: | 16.7M 71%NTSC | Transmittance: | 4.0% (Typ.)(with Polarizer) |
Product Description
F050A12-602 5.0 inch tft LCD Screen for Mobile Phone
F050A12-602 LCD Panel Product details :
| Brand | Innolux |
| Model P/N | F050A12-602 |
| Diagonal Size | 5.0" |
| Panel Type | a-Si TFT-LCD, CELL, Q-CUT (Full Cell) |
| Resolution | 480(RGB)×854, FWVGA 198PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 61.56(W)×109.53(H) mm |
| Bezel Opening | - |
| Outline Dim. | 64.46(H)×116.8(V)×0.8(D) mm |
| Treatment | Without Polarizer |
| Luminance | 0 cd/m² |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| View Direction | - |
| Response Time | 5/15 (Typ.)(Tr/Td) |
| Viewing Angle | 45/45/50/25 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Plate Thickness | 0.40+0.40 mm |
| Transmittance | 4.0% (Typ.)(with Polarizer) |
| Support Color | 16.7M 71%NTSC |
| Light Source | No B/L |
| Weight | - |
| Designed For | Mobile Phone |
| Frame Rate | - |
| Touch Panel | Without |
| D-IC Detail | COG Suggest OTM8009A |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
F050A12-602 LCD Display Features :
High Quality:
Highest quality touch LCD screen replacement parts.
Repair Utility:
Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.
Thorough Testing:
Each assembly is tested before shipping to ensure 100% functionality.
Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.
F050A12-602 LCD Panel Shipping and Package :
F050A12-602 LCD Display Shipping Policy :
Shipping Method:
If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.
Specified Logistics:
If you require a specific logistics company, please inform us in advance.
F050A12-602 LCD Display Return Policy :
Product Status:
The product's condition (new or old) will be indicated in the product title.
Return and Exchange Conditions:
If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.
Return Procedure:
When returning the product, please provide a detailed explanation of the issues encountered.
Include actual photos showing the problems with the product.
F050A12-602 LCD Panel FAQ :
Q: Can You declare my order of F050A12-602 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Can I pay my order of F050A12-602 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of F050A12-602 ?
A: Of course!If you make a large order, we will give you a discount.
Want to Know more details about this product
