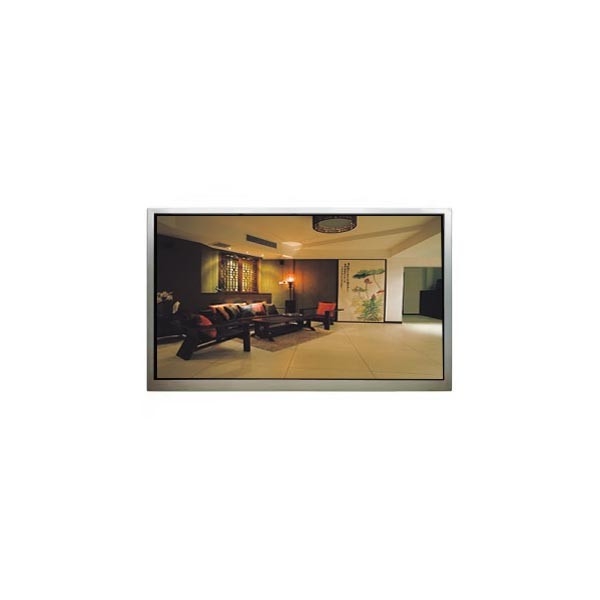

BM5940LB1-2 5.9 inch 720*1560 lcd Screen Display
Product Details:
| Place of Origin: | China |
| Brand Name: | CSOT |
| Model Number: | BM5940LB1-2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | BM5940LB1-2 | Diagonal Size: | 5.9" |
|---|---|---|---|
| Panel Type: | LTPS TFT-LCD, CELL, Q-CUT (Full Cell) | Resolution: | 720(RGB)×1560 289PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 63.2232(W)×136.984(H) Mm |
| Used For: | Mobile Phone | Touchscreen: | In-Cell Touch |
| Color Depth: | 16.7M 71%NTSC | Backlight: | No B/L |
Product Description
BM5940LB1-2 5.9 inch 720*1560 lcd Screen Display
BM5940LB1-2 LCD Panel Product details :
| Brand | CSOT |
| Model P/N | BM5940LB1-2 |
| Diagonal Size | 5.9" |
| Panel Type | LTPS TFT-LCD, CELL, Q-CUT (Full Cell) |
| Resolution | 720(RGB)×1560 289PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 63.2232(W)×136.984(H) mm |
| Bezel Opening | - |
| Outline Size | 64.6232(W)×141.084(H)(D) mm |
| Treatment | - |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1500 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 25 (Typ.)(Tr/+Td) ms |
| Good View at | Symmetry |
| Work Mode | FFS, Normally Black, Transmissive |
| Glass Thickness | - |
| Transmissivity | 6.0% (Typ.)(with Polarizer) |
| Color Depth | 16.7M 71%NTSC |
| Backlight | No B/L |
| Mass | TBD |
| Used for | Mobile Phone |
| Refresh Rate | - |
| Touchscreen | In-Cell Touch |
| Driver IC list | Suggest COG NT36672-A, NT36572-A, TD4320, FT8719, FT8615, HX83112-A, HX83104-A |
| Max. Ratings | Storage Temp.: -40 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
BM5940LB1-2 LCD Display Features :
High Quality:
Highest quality touch LCD screen replacement parts.
Repair Utility:
Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.
Thorough Testing:
Each assembly is tested before shipping to ensure 100% functionality.
Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.
BM5940LB1-2 LCD Panel Shipping and Package :
BM5940LB1-2 LCD Display Shipping Policy :
Shipping Method:
If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.
Specified Logistics:
If you require a specific logistics company, please inform us in advance.
BM5940LB1-2 LCD Display Return Policy :
Product Status:
The product's condition (new or old) will be indicated in the product title.
Return and Exchange Conditions:
If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.
Return Procedure:
When returning the product, please provide a detailed explanation of the issues encountered.
Include actual photos showing the problems with the product.
BM5940LB1-2 LCD Panel FAQ :
Q: How to make payment of BM5940LB1-2 ?
A: We accept T/T , Paypal , western union .
Q: Can you give me a discount if I need a large quantity of BM5940LB1-2 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of BM5940LB1-2 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can I pay my order of BM5940LB1-2 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Want to Know more details about this product
