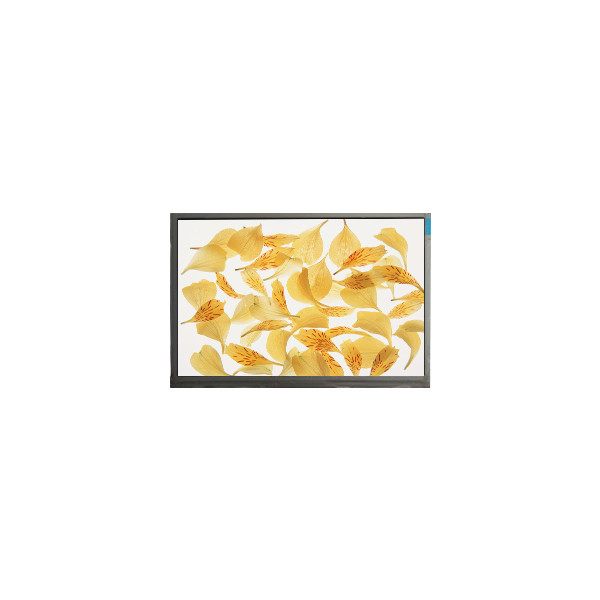

11.6 inch C116NWR7-2 1366*768 lcd Screen for Laptop
Product Details:
| Place of Origin: | China |
| Brand Name: | IVO |
| Model Number: | C116NWR7-2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | C116NWR7-2 | Diagonal Size: | 11.6" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, Full Cell | Resolution: | 1366(RGB)×768, WXGA 135PPI |
| Pixel Format: | RGBW Vertical Stripe | Active Area: | 256.125(W)×144(H) Mm |
| Used For: | Laptop | Refresh Rate: | 60Hz |
| Driver IC List: | SuggestCOGHX8695-B01 + RM91862 | Max. Ratings: | Storage Temp.: -30 ~ 70 °C Operating Temp.: 0 ~ 60 °C |
Product Description
11.6 inch C116NWR7-2 1366*768 lcd Screen for Laptop
C116NWR7-2 LCD Panel Product details :
| Brand | IVO |
| Model P/N | C116NWR7-2 |
| Diagonal Size | 11.6" |
| Panel Type | a-Si TFT-LCD, CELL, Full Cell |
| Resolution | 1366(RGB)×768, WXGA 135PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 256.125(W)×144(H) mm |
| Bezel Opening | - |
| Outline(mm) | 264.3 × 154.3× 0.8 (H×V×D) |
| Treatment | - |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1200 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 30 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | IPS, Normally Black, Transmissive |
| Glass Thickness | 0.40+0.40 mm |
| Transmissivity | 6.3% (Typ.)(with Polarizer) |
| Color Depth | 262K 54%NTSC |
| Backlight | No B/L |
| Outline Shape | - |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Driver IC list | SuggestCOGHX8695-B01 + RM91862 |
| Max. Ratings | Storage Temp.: -30 ~ 70 °C Operating Temp.: 0 ~ 60 °C |
C116NWR7-2 LCD Display efficacy :
Its startup speed is faster than that of ordinary computers, fast loading and cache, bid farewell to the long startup waiting, save time and work efficiently. Our display screen effectively reduces blue light emission, optimizes visual comfort, and helps reduce eye fatigue,
especially when viewing the screen for a long time. Our use of streamlined design, lines return to fresh, light and thin, combined with streamlined modeling, showing elegance. Both home and office reflect the beauty of art.
Our LCD Panel Display has high-definition resolution to accurately show every small detail. The screen flicker is reduced, and the picture remains clear and smooth. At the same time, the blue light filtering function is added to realize the filtering of high-energy short wave blue light. The simplified design structure allows users to get started quickly and complete rapid assembly and disassembly in a short time.
C116NWR7-2 LCD Panel Shipping and Package :
C116NWR7-2 LCD Display Shipping Policy :
Shipping Method:
If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.
Specified Logistics:
If you require a specific logistics company, please inform us in advance.
C116NWR7-2 LCD Display Return Policy :
Product Status:
The product's condition (new or old) will be indicated in the product title.
Return and Exchange Conditions:
If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.
Return Procedure:
When returning the product, please provide a detailed explanation of the issues encountered.
Include actual photos showing the problems with the product.
C116NWR7-2 LCD Panel FAQ :
Q: Can you give me a discount if I need a large quantity of C116NWR7-2 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of C116NWR7-2 ?
A: we will give you tracking number then you can trace your order from website.
Q: How to make payment of C116NWR7-2 ?
A: We accept T/T , Paypal , western union .
Q: Do you accept sample orders of C116NWR7-2 ?
A: Of course!sample order is welcome !
Want to Know more details about this product
