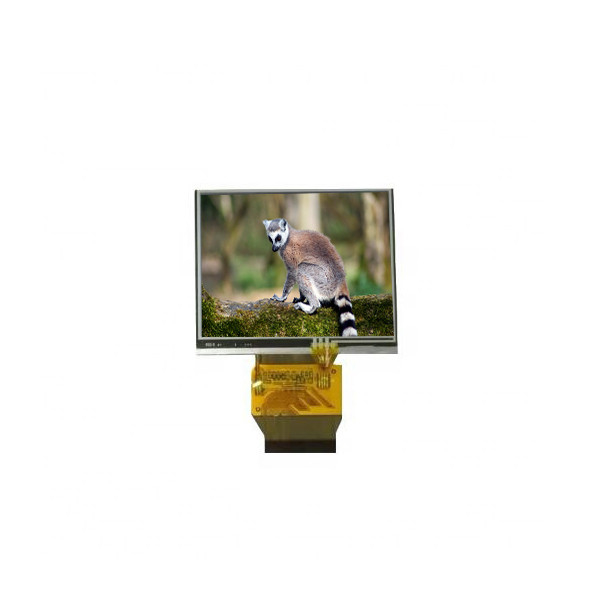

TM035KBH02-09 3.5 inch 320*240 TFT LCD SCREEN for Industrial
Product Details:
| Place of Origin: | China |
| Brand Name: | TIANMA |
| Model Number: | TM035KBH02-09 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TM035KBH02-09 | Diagonal Size: | 3.5" |
|---|---|---|---|
| Panel Type: | LCM , A-Si TFT-LCD | Resolution: | 320(RGB)×240 (QVGA) 115PPI |
| Pixel Format: | RGBW Vertical Stripe | Active Area: | 70.08 × 52.56 (H×V) |
| Used For: | Industrial Digital Still Camera Digital Video Camera | Touchscreen: | Without |
Product Description
TM035KBH02-09 3.5 inch 320*240 TFT LCD SCREEN for Industrial
TM035KBH02-09 LCD Panel Product details :
| TIANMA LCD SCREEN TM035KBH02-09 | |
| Manufacturer | TIANMA |
| Model Name | TM035KBH02-09 |
| Screen Size | 3.5 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 320(RGB)×240 (QVGA) 115PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 70.08 × 52.56 (H×V) |
| Outline(mm) | 76.9 × 63.9 × 4.2 (H×V×D) |
| Bezel Area(mm) | 72.08 × 54.56 (H×V) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 420 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 70/70/60/70 (Typ.)(CR≥10) |
| Response | 25 (Typ.)(Tr+Td) ms |
| Good View at | 12 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 16.7M 50% NTSC |
| Backlight | 6S1P WLED , 20K hours , No Driver |
| Mass | 40.0g |
| Used for | Industrial Digital Still Camera Digital Video Camera |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | Digital RGB (8/24-bit) + SPI, CCIR601/656 , 54 pins FPC |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 70 °C Operating Temp.: -20 ~ 60 °C |
| TM035KBH02-09 3.5 inch 320*240 TFT LCD SCREEN for Industrial | |
TM035KBH02-09 LCD Display Features :
High Quality:
Highest quality touch LCD screen replacement parts.
Repair Utility:
Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.
Thorough Testing:
Each assembly is tested before shipping to ensure 100% functionality.
Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.
TM035KBH02-09 LCD Panel Shipping and Package :
TM035KBH02-09 LCD Display Shipping Policy :
Shipping Method:
If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.
Specified Logistics:
If you require a specific logistics company, please inform us in advance.
TM035KBH02-09 LCD Display Return Policy :
Product Status:
The product's condition (new or old) will be indicated in the product title.
Return and Exchange Conditions:
If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.
Return Procedure:
When returning the product, please provide a detailed explanation of the issues encountered.
Include actual photos showing the problems with the product.
TM035KBH02-09 LCD Panel FAQ :
Q:Can I pay my order of TM035KBH02-09 via credit card ?
A:Yes!you can use your credit card through your Paypal account.
Q: How long will I receive my goods TM035KBH02-09 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How long is the warranty ?
A: We offer 90days warranty .
Q:Can You declare my order of TM035KBH02-09 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
