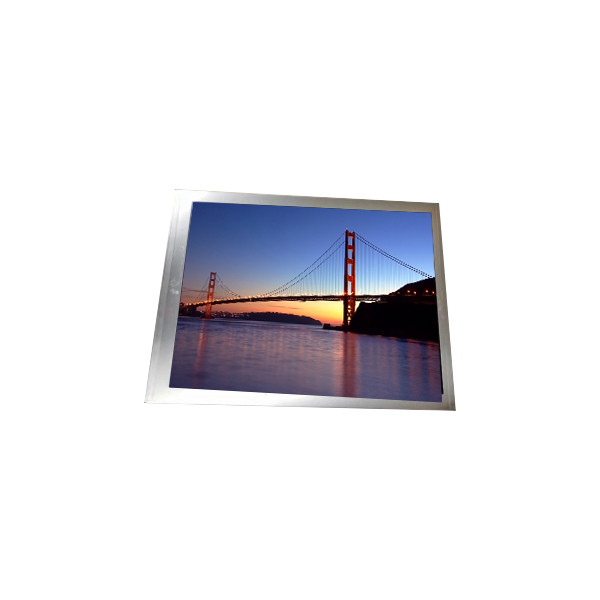

TM123XDKP15-00 12.3 inch lcd Screen for Outdoor High Brightness
Product Details:
| Place of Origin: | China |
| Brand Name: | TIANMA |
| Model Number: | TM123XDKP15-00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TM123XDKP15-00 | Diagonal Size: | 12.3" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1920(RGB)×720 166PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 292.32(W)×109.62(H) Mm |
| Used For: | Outdoor High Brightness ,Automotive Display | Light Source: | 10S3P WLED , 10K Hours , No Driver |
Product Description
TM123XDKP15-00 12.3 inch lcd Screen for Outdoor High Brightness
TM123XDKP15-00 LCD Panel Product details :
| Brand | TIANMA |
| Model P/N | TM123XDKP15-00 |
| Diagonal Size | 12.3" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×720 166PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 292.32(W)×109.62(H) mm |
| Bezel Opening | - |
| Outline Dim. | 310 × 131 (H×V×D) |
| Treatment | Antiglare, Hard coating (2H), Antireflection |
| Luminance | 800 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 25 (Max.)(Tr+Td) ms |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
| Operating Mode | SFT, Normally Black, Transmissive |
| Support Color | 16.7M 74% NTSC |
| Light Source | 10S3P WLED , 10K hours , No Driver |
| Weight | TBD |
| Designed For | Outdoor High Brightness ,Automotive Display |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (2 ch, 8-bit) , 50 pins FPC |
| Power Supply | 3.3V (Typ.) |
| Environment | Storage Temp.: -40 ~ 95 °C Operating Temp.: -40 ~ 85 °C |
TM123XDKP15-00 LCD Display Features :
High Quality:
Highest quality touch LCD screen replacement parts.
Repair Utility:
Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.
Thorough Testing:
Each assembly is tested before shipping to ensure 100% functionality.
Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.
TM123XDKP15-00 LCD Panel Shipping and Package :
TM123XDKP15-00 LCD Display Shipping Policy :
Shipping Method:
If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.
Specified Logistics:
If you require a specific logistics company, please inform us in advance.
TM123XDKP15-00 LCD Display Return Policy :
Product Status:
The product's condition (new or old) will be indicated in the product title.
Return and Exchange Conditions:
If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.
Return Procedure:
When returning the product, please provide a detailed explanation of the issues encountered.
Include actual photos showing the problems with the product.
TM123XDKP15-00 LCD Panel FAQ :
Q: Can you test the lcd panel TM123XDKP15-00 before shipping ?
A: Yes , of course , don't worry , our item was tested ok before shipping .
Q: Do you accept the sample order TM123XDKP15-00 ?
A: Yes , sample order is welcome.
Q: Can you declared low value of my order TM123XDKP15-00 ?
A: Yes , we can , you can tell us before shipping .
Q: How long the warranty of lcd TM123XDKP15-00 ?
A: 90 days .
