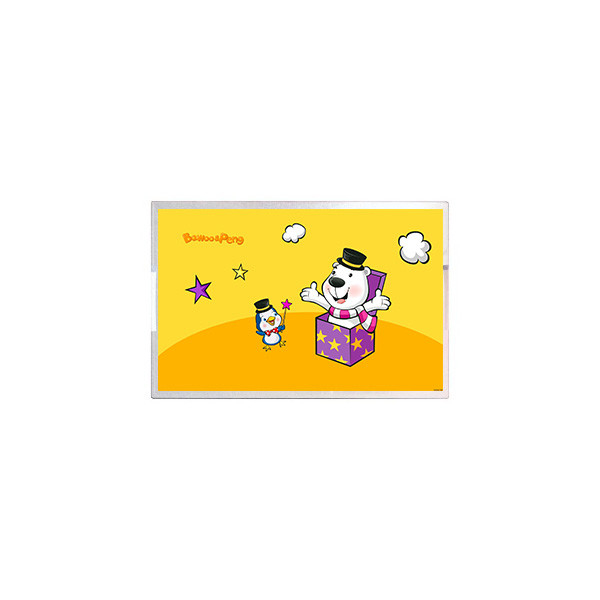

1080*1920 TL070VVGP04-00 7.0 inch 40 pins lcd Screen Monitor
Product Details:
| Place of Origin: | China |
| Brand Name: | TIANMA |
| Model Number: | TL070VVGP04-00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TL070VVGP04-00 | Diagonal Size: | 7.0" |
|---|---|---|---|
| Panel Type: | LTPS TFT-LCD, Assembly | Resolution: | 1080(RGB)×1920, FHD 315PPI |
| Pixel Format: | RGBW Vertical Stripe | Active Area: | 86.832(W)×154.368(H) Mm |
| Used For: | Industrial、Handheld & PDA | Touch Panel: | PCAP, I²C |
Product Description
1080*1920 TL070VVGP04-00 7.0 inch 40 pins lcd Screen Monitor
TL070VVGP04-00 LCD Panel Product details :
| Brand | TIANMA |
| Model P/N | TL070VVGP04-00 |
| Diagonal Size | 7.0" |
| Panel Type | LTPS TFT-LCD, Assembly |
| Resolution | 1080(RGB)×1920, FHD 315PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 86.832(W)×154.368(H) mm |
| Bezel Opening | - |
| Outline(mm) | 99.556 × 172× 2.56 (H×V×D) |
| Treatment | Hard coating |
| Luminance | 450 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Min.)(CR≥10) |
| Response | 30 (Max.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | FFS, Normally Black, Transmissive |
| Color Depth | 16.7M 70%NTSC |
| Backlight | 7S3PWLED, No Driver |
| Mass | 85.5g (Typ.) |
| Used for | Industrial,Handheld & PDA |
| Refresh Rate | 60Hz |
| Touchscreen | PCAP, I²C |
| Signal Type | MIPI (4 data lanes), 40 pinsConnector |
| Voltage Supply | 1.8/5.5/-5.5V (Typ.)(IOVCC/VSP/VSN) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| 1080*1920 TL070VVGP04-00 7.0 inch 40 pins lcd Screen Monitor | |
TL070VVGP04-00 LCD Display Features :
High Quality:
Highest quality touch LCD screen replacement parts.
Repair Utility:
Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.
Thorough Testing:
Each assembly is tested before shipping to ensure 100% functionality.
Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.
TL070VVGP04-00 LCD Panel Shipping and Package :
TL070VVGP04-00 LCD Display Shipping Policy :
Shipping Method:
If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.
Specified Logistics:
If you require a specific logistics company, please inform us in advance.
TL070VVGP04-00 LCD Display Return Policy :
Product Status:
The product's condition (new or old) will be indicated in the product title.
Return and Exchange Conditions:
If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.
Return Procedure:
When returning the product, please provide a detailed explanation of the issues encountered.
Include actual photos showing the problems with the product.
TL070VVGP04-00 LCD Panel FAQ :
Q: How to make payment of TL070VVGP04-00 ?
A: We accept T/T , Paypal , western union .
Q: Do you accept sample orders of TL070VVGP04-00 ?
A: Of course!sample order is welcome !
Q: Can I pay my order of TL070VVGP04-00 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: If I place order now,when will you ship the goods of TL070VVGP04-00 ?
A: The order will be shipped within 2-3 working days after received your payment.
