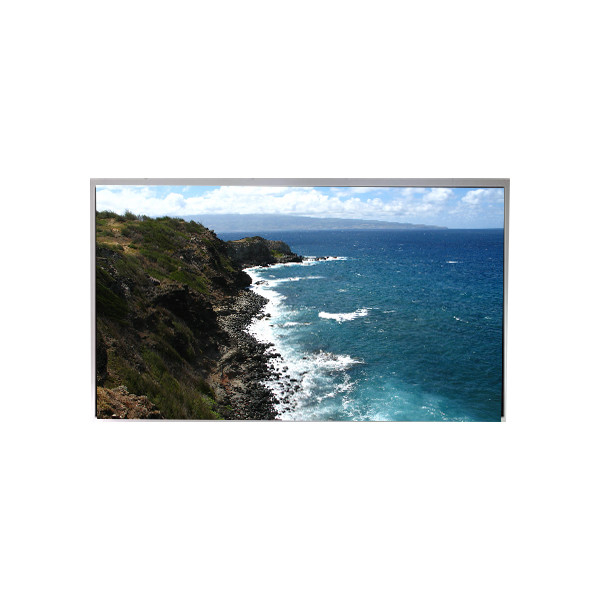

Name: 18.5 inch 1920*1080 P1850FHF1MB01 LVDS lcd Panel Screen Monitor
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: P1850FHF1MB01
Availability: InStock

Brand Name:	TIANMA
Model Number:	P1850FHF1MB01
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

P1850FHF1MB01

Diagonal Size:

18.5"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1920(RGB)×1080, FHD 119PPI

Pixel Format:

RGBW Vertical Stripe

Active Area:

408.96(W)×230.04(H) Mm

Used For:

Industrial

Touch Panel:

Without

Supply Ability:

100000 Unit/Units per Month

Product Description

18.5 inch 1920*1080 P1850FHF1MB01 LVDS lcd Panel Screen Monitor

P1850FHF1MB01 LCD Panel Product details :

Brand	TIANMA
Model P/N	P1850FHF1MB01
Diagonal Size	18.5"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1080, FHD 119PPI
Pixel Format	RGB Vertical Stripe
Active Area	408.96(W)×230.04(H) mm
Bezel Opening	-
Outline Size	430.4(W)×254.6(H)×14(D) mm
Treatment	Antiglare, Hard coating
Luminance	400 cd/m² (Typ.)
Contrast Ratio	1000 : 1 (Typ.) (TM)
Viewing Angle	88/88/88/88 (Typ.)(CR≥10)
Response	25 (Typ.)(Tr+Td) ms
Good View at	Symmetry
Work Mode	SFT, Normally Black, Transmissive
Color Depth	16.7M 72%NTSC
Backlight	9S6PWLED, 50K hours, With LED Driver
Mass	1.55Kgs
Used for	Industrial
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	LVDS (2 ch, 8-bit), 30 pinsConnector
Voltage Supply	5.0V (Typ.)
Max. Ratings	Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C
18.5 inch 1920*1080 P1850FHF1MB01 LVDS lcd Panel Screen Monitor

P1850FHF1MB01 LCD Display Features :

High Quality:

Highest quality touch LCD screen replacement parts.

Repair Utility:

Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.

Thorough Testing:

Each assembly is tested before shipping to ensure 100% functionality.

Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.

P1850FHF1MB01 LCD Panel Shipping and Package :

18.5 inch 1920*1080 P1850FHF1MB01 LVDS lcd Panel Screen Monitor 0

P1850FHF1MB01 LCD Display Shipping Policy :

Shipping Method:

If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.

Specified Logistics:

If you require a specific logistics company, please inform us in advance.

P1850FHF1MB01 LCD Display Return Policy :

Product Status:

The product's condition (new or old) will be indicated in the product title.

Return and Exchange Conditions:

If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.

Return Procedure:

When returning the product, please provide a detailed explanation of the issues encountered.

Include actual photos showing the problems with the product.

P1850FHF1MB01 LCD Panel FAQ :

Q: Do you accept sample orders of P1850FHF1MB01 ?

A: Of course!sample order is welcome !

Q: Can I pay my order of P1850FHF1MB01 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: If I place order now,when will you ship the goods of P1850FHF1MB01 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: How to make payment of P1850FHF1MB01 ?

A: We accept T/T , Paypal , western union .
