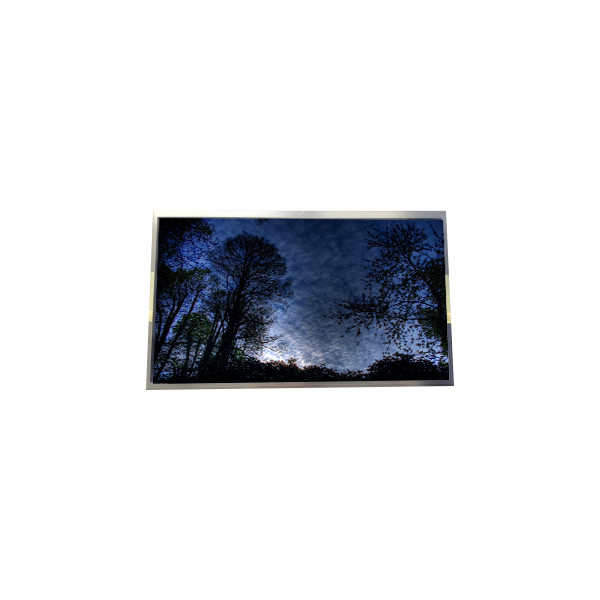

Name: P1560FHF1MB00 15.6 inch 1920*1080 60Hz lcd Panel Screen
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: P1560FHF1MB00
Availability: InStock

Brand Name:	TIANMA
Model Number:	P1560FHF1MB00
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

P1560FHF1MB00

Diagonal Size:

15.6"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1920(RGB)×1080, FHD 141PPI

Pixel Format:

RGBW Vertical Stripe

Active Area:

344.16(W)×193.59(H) Mm

Used For:

Industrial

Touch Panel:

Without

Supply Ability:

100000 Unit/Units per Month

Product Description

P1560FHF1MB00 15.6 inch 1920*1080 60Hz lcd Panel Screen

P1560FHF1MB00 LCD Panel Product details :

Brand	TIANMA
Model P/N	P1560FHF1MB00
Diagonal Size	15.6"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1080, FHD 141PPI
Pixel Format	RGB Vertical Stripe
Active Area	344.16(W)×193.59(H) mm
Bezel Opening	347.55(W)×196.75(H) mm
Outline Size	363.8(W)×215.9(H) mm
Surface	Antiglare, Hard coating (3H)
Brightness	400 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
Viewing Angle	88/88/88/88 (Typ.)(CR≥10)
Display Mode	SFT, Normally Black, Transmissive
Best View on	Symmetry
Response Time	12/13 (Typ.)(Tr/Td)
Display Colors	16.7M 72%NTSC
Lamp Type	WLED, 50K hours, With LED Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	610g (Typ.)
Application	Industrial
Signal Interface	LVDS (2 ch, 8-bit), 30 pins Connector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -20 ~ 70 °C
P1560FHF1MB00 15.6 inch 1920*1080 60Hz lcd Panel Screen

P1560FHF1MB00 LCD Display Features :

High Quality:

Highest quality touch LCD screen replacement parts.

Repair Utility:

Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.

Thorough Testing:

Each assembly is tested before shipping to ensure 100% functionality.

Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.

P1560FHF1MB00 LCD Panel Shipping and Package :

P1560FHF1MB00 15.6 inch 1920*1080 60Hz lcd Panel Screen 0

P1560FHF1MB00 LCD Display Shipping Policy :

Shipping Method:

If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.

Specified Logistics:

If you require a specific logistics company, please inform us in advance.

P1560FHF1MB00 LCD Display Return Policy :

Product Status:

The product's condition (new or old) will be indicated in the product title.

Return and Exchange Conditions:

If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.

Return Procedure:

When returning the product, please provide a detailed explanation of the issues encountered.

Include actual photos showing the problems with the product.

P1560FHF1MB00 LCD Panel FAQ :

Q: Can I pay my order of P1560FHF1MB00 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: If I place order now,when will you ship the goods of P1560FHF1MB00 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: How to make payment of P1560FHF1MB00 ?

A: We accept T/T , Paypal , western union .

Q: Do you accept sample orders of P1560FHF1MB00 ?

A: Of course!sample order is welcome !
