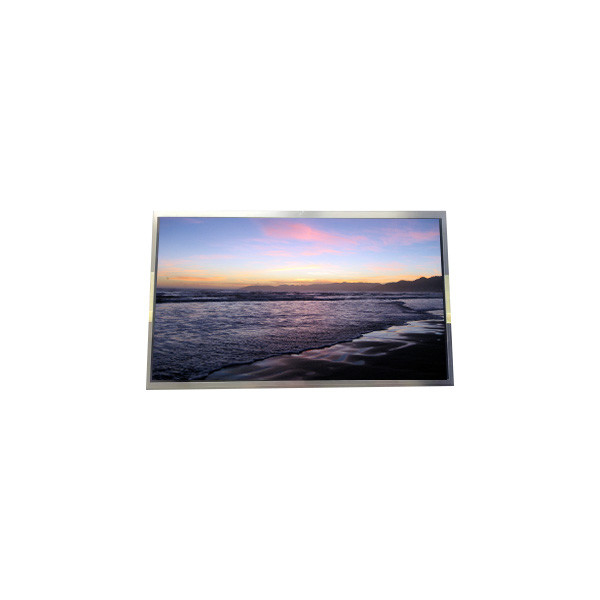

P1330FHF1MA00 13.3 inch 1920*1080 lcd Screen Panel Display
Product Details:
| Place of Origin: | China |
| Brand Name: | TIANMA |
| Model Number: | P1330FHF1MA00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | P1330FHF1MA00 | Diagonal Size: | 13.3" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1920(RGB)×1080, FHD 166PPI |
| Pixel Format: | RGBW Vertical Stripe | Active Area: | 293.76(W)×165.24(H) Mm |
| Used For: | Industrial | Touch Panel: | Without |
Product Description
P1330FHF1MA00 13.3 inch 1920*1080 lcd Screen Panel Display
P1330FHF1MA00 LCD Panel Product details :
| Brand | TIANMA |
| Model P/N | P1330FHF1MA00 |
| Diagonal Size | 13.3" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 166PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 293.76(W)×165.24(H) mm |
| Bezel Opening | - |
| Outline Dim. | 308(H)×186(V)×9.7(D)mm |
| Treatment | Hard coating |
| Luminance | 1000 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
| Operating Mode | SFT, Normally Black, Transmissive |
| Support Color | 16.7M 72%NTSC |
| Light Source | WLED, 50K hours, W/O Driver |
| Weight | 561g (Typ.) |
| Designed For | Industrial |
| Frame Rate | - |
| Touch Panel | Without |
| Interface Type | LVDS (2 ch, 8-bit), 40 pinsConnector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| P1330FHF1MA00 13.3 inch 1920*1080 lcd Screen Panel Display | |
P1330FHF1MA00 LCD Panel Shipping and Package :
P1330FHF1MA00 LCD Panel FAQ :
Q:Can you declared low value for my order when shipping?
A:Yes, We can do it for you if you need.
Q: What happen if the lcd panel P1330FHF1MA00 I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: Are you manufactory or trade company?
A: Shenzhen YONG SHENG INNOVATIVE TECHNOLOGY Co, Ltd is a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: When will my order P1330FHF1MA00 ship?
A: The order are shipped within 1-2 working days after received the payment.
