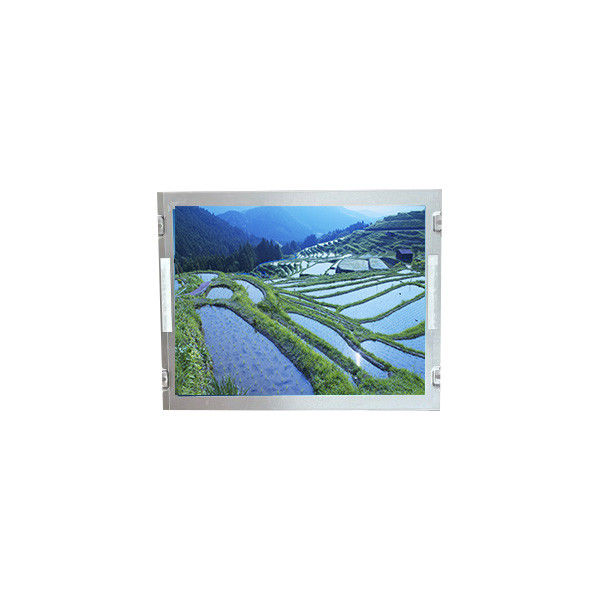

new 12.1 inch P1210XGF1MB00 LVDS lcd Screen for TIANMA
Product Details:
| Place of Origin: | China |
| Brand Name: | TIANMA |
| Model Number: | P1210XGF1MB00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | P1210XGF1MB00 | Diagonal Size: | 12.1" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1024(RGB)×768, XGA 105PPI |
| Pixel Format: | RGBW Vertical Stripe | Active Area: | 245.76(W)×184.32(H) Mm |
| Used For: | Industrial | Refresh Rate: | 60Hz |
Product Description
new 12.1 inch P1210XGF1MB00 LVDS lcd Screen for TIANMA
P1210XGF1MB00 LCD Panel Product details :
| Brand | TIANMA |
| Model P/N | P1210XGF1MB00 |
| Diagonal Size | 12.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×768, XGA 105PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 245.76(W)×184.32(H) mm |
| Bezel Opening | 249(W)×187.5(H) mm |
| Outline Size | 260.5(W)×203(H)×10(D) mm |
| Surface | Hard coating |
| Brightness | 500 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
| Display Mode | SFT, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Display Colors | 262K/16.7M 72%NTSC |
| Lamp Type | WLED, 50K hours, With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 550g (Typ.) |
| Application | Industrial |
| Signal Interface | LVDS (1 ch, 6/8-bit), 20 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -30 ~ 80 °C ;Storage Temp.: -40 ~ 90 °C; Vibration Level: 2.0G (19.6 m/s²) |
| new 12.1 inch P1210XGF1MB00 LVDS lcd Screen for TIANMA | |
P1210XGF1MB00 LCD Panel Shipping and Package :
P1210XGF1MB00 LCD Panel FAQ :
Q: Are you manufactory or trade company?
A: Shenzhen YONG SHENG INNOVATIVE TECHNOLOGY Co, Ltd is a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: When will my order P1210XGF1MB00 ship?
A: The order are shipped within 1-2 working days after received the payment.
Q:Can you declared low value for my order when shipping?
A:Yes, We can do it for you if you need.
Q: What happen if the lcd panel P1210XGF1MB00 I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
