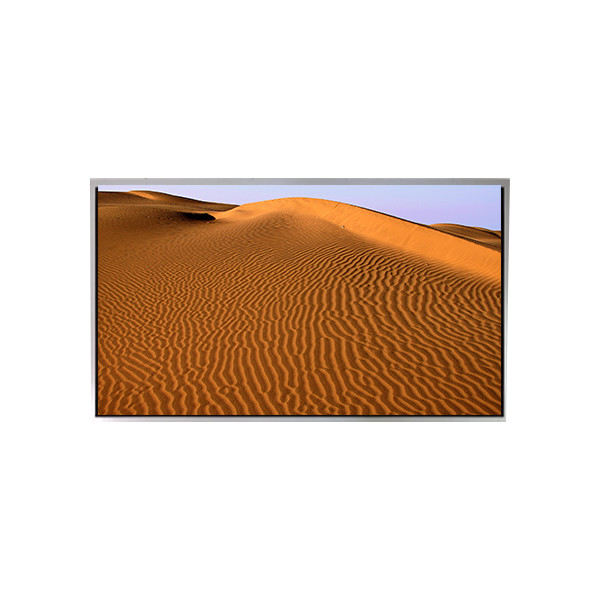

Name: P1040XGF1MA00DA011024*768 10.4 inch PCAP 262K lcd Screen Panel
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: P1040XGF1MA00DA01
Availability: InStock

Brand Name:	TIANMA
Model Number:	P1040XGF1MA00DA01
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

P1040XGF1MA00DA01

Diagonal Size:

10.4"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1024(RGB)×768, XGA 123PPI

Pixel Format:

RGBW Vertical Stripe

Active Area:

210.432(W)×157.824(H) Mm

Used For:

Industrial、Outdoor High Brightness

Refresh Rate:

60Hz

Supply Ability:

100000 Unit/Units per Month

Product Description

P1040XGF1MA00DA01 1024*768 10.4 inch PCAP 262K lcd Screen Panel

P1040XGF1MA00DA01 LCD Panel Product details :

Brand	TIANMA
Model P/N	P1040XGF1MA00DA01
Diagonal Size	10.4"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)×768, XGA 123PPI
Pixel Format	RGB Vertical Stripe
Active Area	210.432(W)×157.82(H) mm
Bezel Opening	-
Outline Size	250(W)×200(H)×13.15(D) mm
Treatment	Antiglare
Luminance	1000 cd/m² (Min.)
Contrast Ratio	1000 : 1 (Typ.) (TM)
Viewing Angle	88/88/88/88 (Typ.)(CR≥10)
Response	-
Good View at	-
Work Mode	SFT, Normally Black, Transmissive
Color Depth	262K/16.7M 45%NTSC
Backlight	6S4PWLED, 50K hours, No Driver
Mass	TBD
Used for	Industrial,Outdoor High Brightness
Refresh Rate	60Hz
Touchscreen	PCAP, Air Bonding, USB
Signal Type	LVDS (1 ch, 6/8-bit), 20 pinsConnector
Voltage Supply	3.3V (Typ.)
Max. Ratings	Storage Temp.: -40 ~ 85 °C Operating Temp.: -30 ~ 70 °C
P1040XGF1MA00DA01 1024*768 10.4 inch PCAP 262K lcd Screen Panel

P1040XGF1MA00DA01 LCD Display Features :

High Quality:

Highest quality touch LCD screen replacement parts.

Repair Utility:

Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.

Thorough Testing:

Each assembly is tested before shipping to ensure 100% functionality.

Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.

P1040XGF1MA00DA01 LCD Panel Shipping and Package :

P1040XGF1MA00DA011024*768 10.4 inch PCAP 262K lcd Screen Panel 0

P1040XGF1MA00DA01 LCD Display Shipping Policy :

Shipping Method:

If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.

Specified Logistics:

If you require a specific logistics company, please inform us in advance.

P1040XGF1MA00DA01 LCD Display Return Policy :

Product Status:

The product's condition (new or old) will be indicated in the product title.

Return and Exchange Conditions:

If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.

Return Procedure:

When returning the product, please provide a detailed explanation of the issues encountered.

Include actual photos showing the problems with the product.

P1040XGF1MA00DA01 LCD Panel FAQ :

Q: Can You declare my order of P1040XGF1MA00DA01 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How long will I receive my goods P1040XGF1MA00DA01 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: If I place order now,when will you ship the goods of P1040XGF1MA00DA01 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Can I pay my order of P1040XGF1MA00DA01 via credit card ?

A: Yes!you can use your credit card through your Paypal account.
