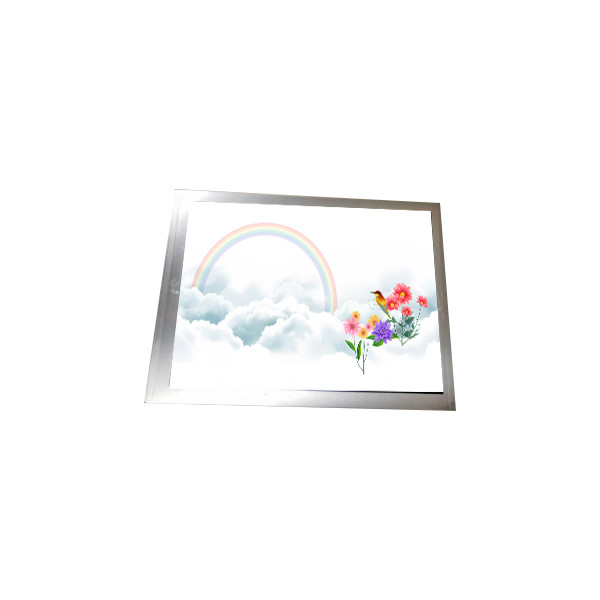

Name: P1040VGF1MB00 640*480 10.4 inch 40 pins lcd Screen Monitor
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: P1040VGF1MB00
Availability: InStock

Brand Name:	TIANMA
Model Number:	P1040VGF1MB00
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

P1040VGF1MB00

Diagonal Size:

10.4"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

640(RGB)×480, VGA 76PPI

Pixel Format:

RGBW Vertical Stripe

Active Area:

211.2(W)×158.4(H) Mm

Used For:

Industrial

Refresh Rate:

60Hz

Supply Ability:

100000 Unit/Units per Month

Product Description

P1040VGF1MB00 640*480 10.4 inch 40 pins lcd Screen Monitor

P1040VGF1MB00 LCD Panel Product details :

Brand	TIANMA
Model P/N	P1040VGF1MB00
Diagonal Size	10.4"
Panel Type	a-Si TFT-LCD, LCM
Resolution	640(RGB)×480, VGA 76PPI
Pixel Format	RGB Vertical Stripe
Active Area	211.2(W)×158.4(H) mm
Bezel Opening	215.4(W)×161.8(H) mm
Outline(mm)	243 × 185.1× 11.47 (H×V×D)
Treatment	Antiglare
Luminance	450 cd/m² (Typ.)
Contrast Ratio	1000 : 1 (Typ.) (TM)
Viewing Angle	88/88/88/88 (Typ.)(CR≥10)
Response	25 (Typ.)(Tr+Td) ms
Good View at	Symmetry
Work Mode	SFT, Normally Black, Transmissive
Color Depth	262K 50%NTSC
Backlight	WLED, 70K hours, No Driver
Mass	475g (Typ.)
Used for	Industrial
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	CMOS (1 ch, 6-bit), 40 pinsConnector
Voltage Supply	3.3V (Typ.)
Max. Ratings	Storage Temp.: -35 ~ 90 °C Operating Temp.: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 m/s²)
P1040VGF1MB00 640*480 10.4 inch 40 pins lcd Screen Monitor

P1040VGF1MB00 LCD Display Features :

High Quality:

Highest quality touch LCD screen replacement parts.

Repair Utility:

Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.

Thorough Testing:

Each assembly is tested before shipping to ensure 100% functionality.

Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.

P1040VGF1MB00 LCD Panel Shipping and Package :

P1040VGF1MB00 640*480 10.4 inch 40 pins lcd Screen Monitor 0

P1040VGF1MB00 LCD Display Shipping Policy :

Shipping Method:

If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.

Specified Logistics:

If you require a specific logistics company, please inform us in advance.

P1040VGF1MB00 LCD Display Return Policy :

Product Status:

The product's condition (new or old) will be indicated in the product title.

Return and Exchange Conditions:

If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.

Return Procedure:

When returning the product, please provide a detailed explanation of the issues encountered.

Include actual photos showing the problems with the product.

P1040VGF1MB00 LCD Panel FAQ :

Q: If I place order now,when will you ship the goods of P1040VGF1MB00 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Can I pay my order of P1040VGF1MB00 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: Can You declare my order of P1040VGF1MB00 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How long will I receive my goods P1040VGF1MB00 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
