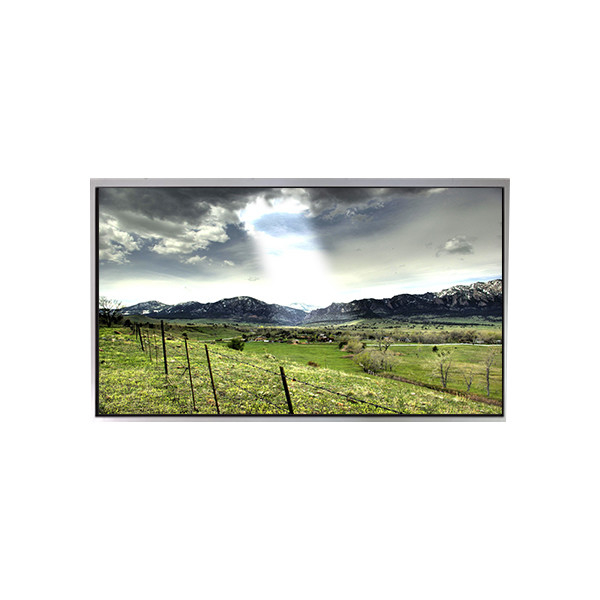

Name: P1010WXF1MA01 10.1 inch lcd Screen FOR Outdoor High Brightness
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: P1010WXF1MA01
Availability: InStock

Brand Name:	TIANMA
Model Number:	P1010WXF1MA01
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

P1010WXF1MA01

Diagonal Size:

10.1"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1280(RGB)×800, WXGA 149PPI

Pixel Format:

RGBW Vertical Stripe

Active Area:

216.96(W)×135.6(H) Mm

Used For:

Industrial、Outdoor High Brightness

Touch Screen:

Without

Supply Ability:

100000 Unit/Units per Month

Product Description

P1010WXF1MA01 10.1 inch lcd Screen FOR Outdoor High Brightness

P1010WXF1MA01 LCD Panel Product details :

Brand	TIANMA
Model P/N	P1010WXF1MA01
Diagonal Size	10.1"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)×800, WXGA 149PPI
Pixel Format	RGB Vertical Stripe
Active Area	216.96(W)×135.6(H) mm
Bezel Opening	219.96(W)×138.6(H) mm
Outline Size	229.8(W)×149(H)×9.61(D) mm
Surface	Hard coating
Brightness	1000 cd/m² (Typ.)
Contrast Ratio	700:1 (Typ.) (TM)
Viewing Angle	88/88/88/88 (Typ.)(CR≥10)
Display Mode	SFT, Normally Black, Transmissive
Best View on	Symmetry
Response Time	25 (Typ.)(Tr+Td)
Display Colors	262K/16.7M 50%NTSC
Lamp Type	WLED, 50K hours, With LED Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	-
Application	Industrial,Outdoor High Brightness
Signal Interface	LVDS (1 ch, 6/8-bit), 40 pins Connector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: -30 ~ 80 °C ;Storage Temp.: -40 ~ 85 °C
P1010WXF1MA01 10.1 inch lcd Screen FOR Outdoor High Brightness

P1010WXF1MA01 LCD Display Features :

High Quality:

Highest quality touch LCD screen replacement parts.

Repair Utility:

Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.

Thorough Testing:

Each assembly is tested before shipping to ensure 100% functionality.

Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.

P1010WXF1MA01 LCD Panel Shipping and Package :

P1010WXF1MA01 10.1 inch lcd Screen FOR Outdoor High Brightness 0

P1010WXF1MA01 LCD Display Shipping Policy :

Shipping Method:

If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.

Specified Logistics:

If you require a specific logistics company, please inform us in advance.

P1010WXF1MA01 LCD Display Return Policy :

Product Status:

The product's condition (new or old) will be indicated in the product title.

Return and Exchange Conditions:

If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.

Return Procedure:

When returning the product, please provide a detailed explanation of the issues encountered.

Include actual photos showing the problems with the product.

P1010WXF1MA01 LCD Panel FAQ :

Q: Can I pay my order of P1010WXF1MA01 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: Can You declare my order of P1010WXF1MA01 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How long will I receive my goods P1010WXF1MA01 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: If I place order now,when will you ship the goods of P1010WXF1MA01 ?

A: The order will be shipped within 2-3 working days after received your payment.
