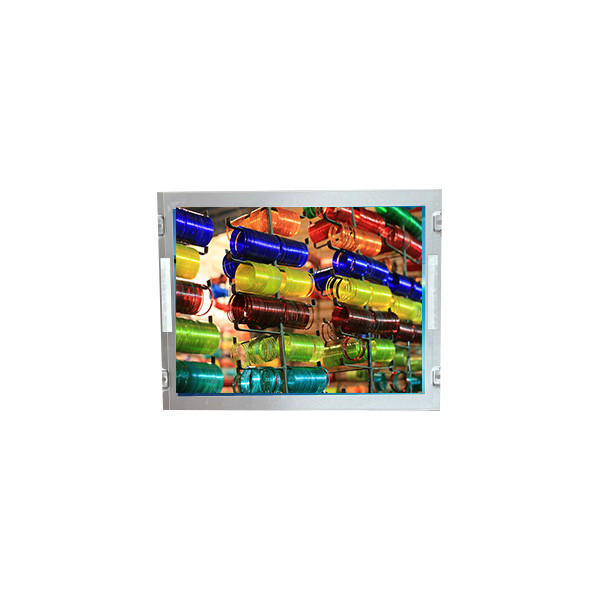

Name: 1024*768 8.4 inch P0840XGF1MA00 20 pins lcd Screen lcd Panel
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: P0840XGF1MA00
Availability: InStock

Brand Name:	TIANMA
Model Number:	P0840XGF1MA00
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

P0840XGF1MA00

Diagonal Size:

8.4"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1024(RGB)×768, XGA 152PPI

Pixel Format:

RGBW Vertical Stripe

Active Area:

170.496(W)×127.872(H) Mm

Used For:

Industrial

Touch Screen:

Without

Supply Ability:

100000 Unit/Units per Month

Product Description

1024*768 8.4 inch P0840XGF1MA00 20 pins lcd Screen lcd Panel

P0840XGF1MA00 LCD Panel Product details :

Brand	TIANMA
Model P/N	P0840XGF1MA00
Diagonal Size	8.4"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)×768, XGA 152PPI
Pixel Format	RGB Vertical Stripe
Active Area	170.496(W)×127.872(H) mm
Bezel Opening	173.5(W)×130.87(H) mm
Outline Size	199.5(W)×149(H)×10.2(D) mm
Surface	Antiglare
Brightness	1000 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
Viewing Angle	88/88/88/88 (Typ.)(CR≥10)
Display Mode	SFT, Normally Black, Transmissive
Best View on	Symmetry
Response Time	25 (Typ.)(Tr+Td)
Display Colors	262K/16.7M 70%NTSC
Lamp Type	7S3PWLED, 100K hours, Without Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	303g (Typ.)
Application	Industrial
Signal Interface	LVDS (1 ch, 6/8-bit), 20 pinsConnector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -40 ~ 90 °C ; Vibration Level: 2.0G (19.6 m/s²)
1024*768 8.4 inch P0840XGF1MA00 20 pins lcd Screen lcd Panel

P0840XGF1MA00 LCD Display Features :

High Quality:

Highest quality touch LCD screen replacement parts.

Repair Utility:

Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.

Thorough Testing:

Each assembly is tested before shipping to ensure 100% functionality.

Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.

P0840XGF1MA00 LCD Panel Shipping and Package :

1024*768 8.4 inch P0840XGF1MA00 20 pins lcd Screen lcd Panel 0

P0840XGF1MA00 LCD Display Shipping Policy :

Shipping Method:

If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.

Specified Logistics:

If you require a specific logistics company, please inform us in advance.

P0840XGF1MA00 LCD Display Return Policy :

Product Status:

The product's condition (new or old) will be indicated in the product title.

Return and Exchange Conditions:

If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.

Return Procedure:

When returning the product, please provide a detailed explanation of the issues encountered.

Include actual photos showing the problems with the product.

P0840XGF1MA00 LCD Panel FAQ :

Q: How long will I receive my goods of lcd P0840XGF1MA00 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: When will my order P0840XGF1MA00 ship?

A: The order are shipped within 1-2 working days after received the payment.

Q: Do you accept the sample order?

A: Yes , sample order is welcome.

Q: What does "We may ship a 100% compatible part number for your screen" mean?

A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
