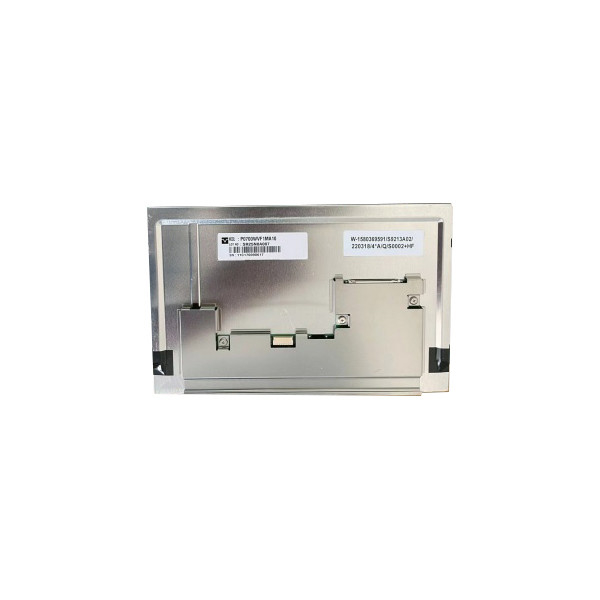

Name: Original 7.0 inch P0700WVF1MA10 800*480 LCD Module Screen monitor
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: P0700WVF1MA10
Availability: InStock

Brand Name:	TIANMA
Model Number:	P0700WVF1MA10
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

P0700WVF1MA10

Diagonal Size:

7.0"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

800(RGB)×480, WVGA 133PPI

Pixel Format:

RGBW Vertical Stripe

Active Area:

152.4(W)×91.44(H) Mm

Used For:

Industrial、Outdoor High Brightness

Touch Screen:

Without

Supply Ability:

100000 Unit/Units per Month

Product Description

Original 7.0 inch P0700WVF1MA10 800*480 LCD Module Screen monitor

P0700WVF1MA10 LCD Panel Product details :

Brand	TIANMA
Model P/N	P0700WVF1MA10
Diagonal Size	7.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×480, WVGA 133PPI
Pixel Format	RGB Vertical Stripe
Active Area	152.4(W)×91.44(H) mm
Bezel Opening	155.4(W)×94.94(H) mm
Outline Dim.	169.8(H)×109.7(V)×9.2(D) mm
Treatment	Antiglare
Luminance	1000 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	25 (Typ.)(Tr+Td)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Operating Mode	SFT, Normally Black, Transmissive
Support Color	262K/16.7M 70%NTSC
Light Source	WLED [7S2P], 70K hours, With LED Driver
Weight	183g (Typ.)
Designed For	Industrial,Outdoor High Brightness
Frame Rate	60Hz
Touch Panel	Without
Interface Type	LVDS (1 ch, 6/8-bit), 20 pinsConnector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -40 ~ 90 °C
Original 7.0 inch P0700WVF1MA10 800*480 LCD Module Screen monitor

P0700WVF1MA10 LCD Display Features :

High Quality:

Highest quality touch LCD screen replacement parts.

Repair Utility:

Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.

Thorough Testing:

Each assembly is tested before shipping to ensure 100% functionality.

Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.

P0700WVF1MA10 LCD Panel Shipping and Package :

Original 7.0 inch P0700WVF1MA10 800*480 LCD Module Screen monitor 0

P0700WVF1MA10 LCD Display Shipping Policy :

Shipping Method:

If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.

Specified Logistics:

If you require a specific logistics company, please inform us in advance.

P0700WVF1MA10 LCD Display Return Policy :

Product Status:

The product's condition (new or old) will be indicated in the product title.

Return and Exchange Conditions:

If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.

Return Procedure:

When returning the product, please provide a detailed explanation of the issues encountered.

Include actual photos showing the problems with the product.

P0700WVF1MA10 LCD Panel FAQ :

Q: If I place order now,when will you ship the goods of P0700WVF1MA10 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Can you give me a discount if I need a large quantity of P0700WVF1MA10 ?

A: Of course!If you make a large order, we will give you a discount.

Q: How long will I receive my goods P0700WVF1MA10 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: How to make payment of P0700WVF1MA10 ?

A: We accept T/T , Paypal , western union .
