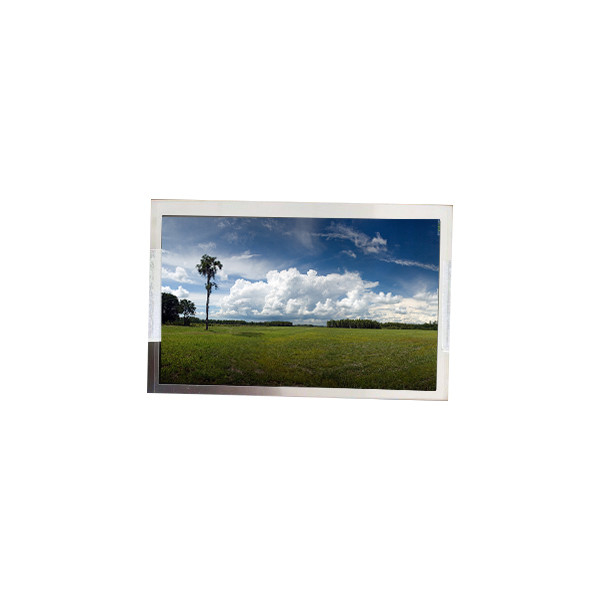

Name: 7.0 inch 800*480 P0700WVF1MA00 LVDS 1000:1 LCD Module Screen Parts
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: P0700WVF1MA00
Availability: InStock

Brand Name:	TIANMA
Model Number:	P0700WVF1MA00
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

P0700WVF1MA00

Diagonal Size:

7.0"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

800(RGB)×480, WVGA 133PPI

Pixel Format:

RGBW Vertical Stripe

Active Area:

152.4(W)×91.44(H) Mm

Used For:

Industrial、Outdoor High Brightness

Touch Screen:

Without

Supply Ability:

100000 Unit/Units per Month

Product Description

7.0 inch 800*480 P0700WVF1MA00 LVDS 1000:1 LCD Module Screen Parts

P0700WVF1MA00 LCD Panel Product details :

Brand	TIANMA
Model P/N	P0700WVF1MA00
Diagonal Size	7.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×480, WVGA 133PPI
Pixel Format	RGB Vertical Stripe
Active Area	152.4(W)×91.44(H) mm
Bezel Opening	155.4(W)×94.94(H) mm
Outline Dim.	169.8(W)×109.7(H)×10.87(D) mm
Luminance	1500 cd/m² (Typ.)
View Direction	Symmetry
Viewing Angle	88/88/88/88 (Typ.)(CR≥10)
Support Color	262K/16.7M 70% NTSC
Weight	210g (Typ.)
Frame Rate	60Hz
Treatment	Antiglare
Contrast Ratio	1000:1 (Typ.) (TM)
Response Time	25/35 (Typ./Max.)(Tr+Td)
Operating Mode	SFT, Normally Black, Transmissive
Light Source	WLED [7S2P] , 100K hours , W/O Driver
Designed For	Industrial,Outdoor High Brightness
Touch Panel	Without
Interface Type	LVDS (1 ch, 6/8-bit)20 pins Connector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: -30 ~ 80 °C; Storage Temperature: -40 ~ 90 °C
7.0 inch 800*480 P0700WVF1MA00 LVDS 1000:1 LCD Module Screen Parts

P0700WVF1MA00 LCD Display Features :

High Quality:

Highest quality touch LCD screen replacement parts.

Repair Utility:

Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.

Thorough Testing:

Each assembly is tested before shipping to ensure 100% functionality.

Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.

P0700WVF1MA00 LCD Panel Shipping and Package :

7.0 inch 800*480 P0700WVF1MA00 LVDS 1000:1 LCD Module Screen Parts 0

P0700WVF1MA00 LCD Display Shipping Policy :

Shipping Method:

If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.

Specified Logistics:

If you require a specific logistics company, please inform us in advance.

P0700WVF1MA00 LCD Display Return Policy :

Product Status:

The product's condition (new or old) will be indicated in the product title.

Return and Exchange Conditions:

If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.

Return Procedure:

When returning the product, please provide a detailed explanation of the issues encountered.

Include actual photos showing the problems with the product.

P0700WVF1MA00 LCD Panel FAQ :

Q: Why big order delivery time are long?

A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!

Q:Can you declared low value for my order when shipping?

A:Yes, We can do it for you if you need.

Q: What happen if the lcd panel P0700WVF1MA00 I received can't work ?

A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.

Q: How to do if I can't find the screen that I require in your listings?

A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
