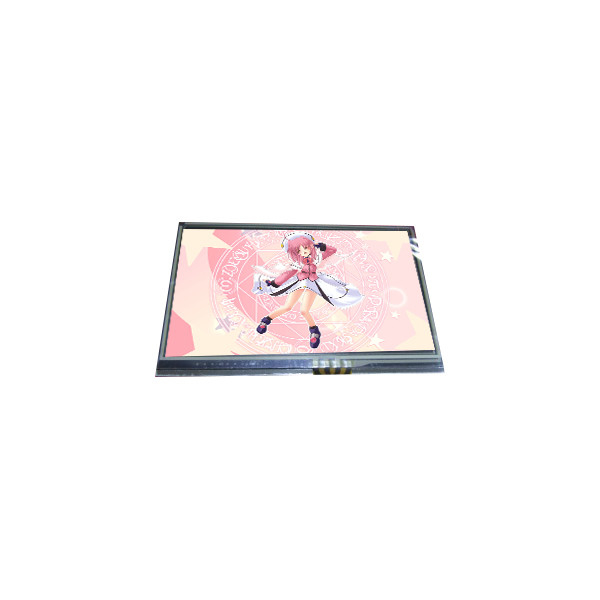

P0567VQF1ME00 320*240 5.7 inch LCD Screen Module Display
Product Details:
| Place of Origin: | China |
| Brand Name: | TIANMA |
| Model Number: | P0567VQF1ME00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | P0567VQF1ME00 | Diagonal Size: | 5.7" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 320(RGB)×240, QVGA 70PPI |
| Pixel Format: | RGBW Vertical Stripe | Active Area: | 115.2(W)×86.4(H) Mm |
| Used For: | Industrial | Touch Screen: | Without |
Product Description
P0567VQF1ME00 320*240 5.7 inch LCD Screen Module Display
P0567VQF1ME00 LCD Panel Product details :
| Brand | TIANMA |
| Model P/N | P0567VQF1ME00 |
| Diagonal Size | 5.7" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 320(RGB)×240, QVGA 70PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 115.2(W)×86.4(H) mm |
| Bezel Opening | - |
| Outline Size | 144(W)×104(H)×5.4(D) mm |
| Surface | Antiglare |
| Brightness | 500 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Display Mode | SFT, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 35 (Typ.)(Tr+Td) |
| Display Colors | 16.7M 65%NTSC |
| Lamp Type | WLED, 50K hours, Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | TBD |
| Application | Industrial |
| Signal Interface | Parallel RGB (1 ch, 8-bit), 50 pinsFPC |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -25 ~ 80 °C |
| P0567VQF1ME00 320*240 5.7 inch LCD Screen Module Display | |
P0567VQF1ME00 LCD Display Features :
High Quality:
Highest quality touch LCD screen replacement parts.
Repair Utility:
Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.
Thorough Testing:
Each assembly is tested before shipping to ensure 100% functionality.
Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.
P0567VQF1ME00 LCD Panel Shipping and Package :
P0567VQF1ME00 LCD Display Shipping Policy :
Shipping Method:
If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.
Specified Logistics:
If you require a specific logistics company, please inform us in advance.
P0567VQF1ME00 LCD Display Return Policy :
Product Status:
The product's condition (new or old) will be indicated in the product title.
Return and Exchange Conditions:
If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.
Return Procedure:
When returning the product, please provide a detailed explanation of the issues encountered.
Include actual photos showing the problems with the product.
P0567VQF1ME00 LCD Panel FAQ :
Q: Can you give me a discount if I need a large quantity of P0567VQF1ME00 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of P0567VQF1ME00 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: How long will I receive my goods P0567VQF1ME00 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
