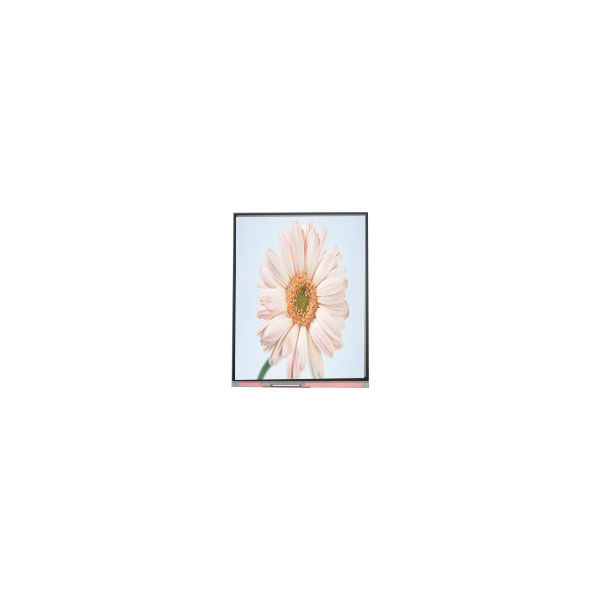

Name: new 720*1280 C050HWA5-1 5.0 inch LCD Screen Module
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: C050HWA5-1
Availability: InStock

Brand Name:	IVO
Model Number:	C050HWA5-1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

C050HWA5-1

Diagonal Size:

5.0"

Panel Type:

A-Si TFT-LCD, CELL, Q-CUT (Full Cell)

Resolution:

720(RGB)×1280, WXGA 294PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

62.1(W)×110.4(H) Mm

Used For:

Mobile Phone

Driver IC:

COG Suggest OTM1283A

Display Mode:

IPS, Normally Black, Transmissive

Best View On:

Symmetry

Supply Ability:

100000 Unit/Units per Month

Product Description

new 720*1280 C050HWA5-1 5.0 inch LCD Screen Module

C050HWA5-1 LCD Panel Product details :

Brand	IVO
Model P/N	C050HWA5-1
Diagonal Size	5.0"
Panel Type	a-Si TFT-LCD, CELL, Q-CUT (Full Cell)
Resolution	720(RGB)×1280, WXGA 294PPI
Pixel Format	RGB Vertical Stripe
Active Area	62.1(W)×110.4(H) mm
Bezel Opening	-
Outline Size	65.1(W)×118.3(H)×0.4(D) mm
Surface	Without Polarizer
Brightness	0 cd/m²
Contrast Ratio	1000:1 (Typ.) (TM)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Display Mode	IPS, Normally Black, Transmissive
Best View on	Symmetry
Response Time	35 (Typ.)(Tr+Td)
Glass Depth	0.20+0.20 mm
Transmissivity	3.6% (Typ.)(with Polarizer)
Display Colors	16.7M 71%NTSC
Lamp Type	No B/L
Frequency	-
Touch Screen	Without
Driver IC	COG Suggest OTM1283A
Panel Weight	7.63g (Typ.)
Application	Mobile Phone
Environment	Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C

C050HWA5-1 LCD Display Features :

High Quality:

Highest quality touch LCD screen replacement parts.

Repair Utility:

Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.

Thorough Testing:

Each assembly is tested before shipping to ensure 100% functionality.

Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.

C050HWA5-1 LCD Panel Shipping and Package :

new 720*1280 C050HWA5-1 5.0 inch LCD Screen Module 0

C050HWA5-1 LCD Display Shipping Policy :

Shipping Method:

If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.

Specified Logistics:

If you require a specific logistics company, please inform us in advance.

C050HWA5-1 LCD Display Return Policy :

Product Status:

The product's condition (new or old) will be indicated in the product title.

Return and Exchange Conditions:

If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.

Return Procedure:

When returning the product, please provide a detailed explanation of the issues encountered.

Include actual photos showing the problems with the product.

C050HWA5-1 LCD Panel FAQ :

Q: Can You declare my order of C050HWA5-1 at a very low value ?

A: Yes , we can . pls inform us before shipping .

Q: How long is the warranty of C050HWA5-1 ?

A: 90days warranty .

Q: Can you give me a discount if I need a large quantity of C050HWA5-1 ?

A: Of course!If you make a large order, we will give you a discount.

Q: If I order C050HWA5-1 now,when will you ship the goods ?

A: The order will be shipped within 2-3 working days after received your payment.
