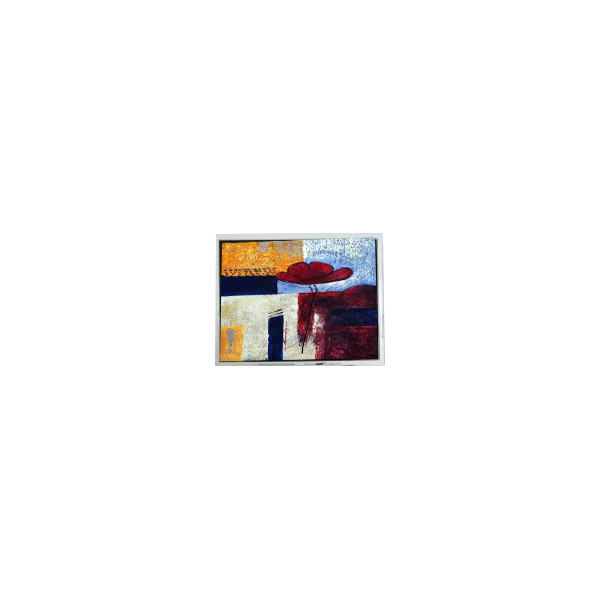

8.4 inch T-55549D084J-LW-A-AAN LVDS LCD Screen Panel Display
Product Details:
| Place of Origin: | China |
| Brand Name: | OPTREX |
| Model Number: | T-55549D084J-LW-A-AAN |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | T-55549D084J-LW-A-AAN | Diagonal Size: | 8.4" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1024(RGB)×768, XGA 152PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 170.496(W)×127.872(H) Mm |
| Frequency: | 60Hz | Designed For: | Industrial |
Product Description
8.4 inch T-55549D084J-LW-A-AAN LVDS LCD Screen Panel Display
T-55549D084J-LW-A-AAN LCD Panel Product details :
| Brand | OPTREX |
| Model P/N | T-55549D084J-LW-A-AAN |
| Diagonal Size | 8.4" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×768, XGA 152PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 170.496(W)×127.872(H) mm |
| Bezel Opening | 174.9(W)×132.2(H) mm |
| Outline Dim. | 199.5(W)×149(H)×12(D) mm |
| Luminance | 500 cd/m² (Typ.) |
| View Direction | 6 o'clock |
| Viewing Angle | 80/80/80/60 (Typ.)(CR≥10) |
| Support Color | 262K/16.7M 40% NTSC |
| Weight | 370g (Typ.) |
| Frame Rate | 60Hz |
| Treatment | Antiglare, Hard coating (3H) |
| Contrast Ratio | 600:1 (Typ.) (TM) |
| Response Time | 4/12(Typ.)(Tr/Td) |
| Operating Mode | TN, Normally White, Transmissive |
| Light Source | WLED [2 strings] , 60K hours , W/O Driver |
| Designed For | Industrial |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 6/8-bit)20 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -30 ~ 80 °C; Storage Temperature: -30 ~ 80 °C |
| 8.4 inch T-55549D084J-LW-A-AAN LVDS LCD Screen Panel Display | |
