Industrial LCD Panel Display

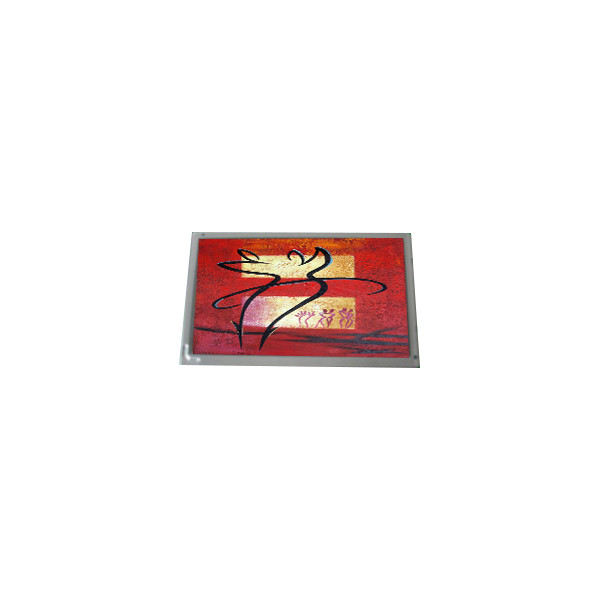

T-55519D150J-LW-A-ABN 15.0 inch 1024*768 1100 cd/m2 LCD Monitor screen

All Category

Floor Standing Digital Signage

T-55519D150J-LW-A-ABN 15.0 inch 1024*768 1100 cd/m2 LCD Monitor screen

Brand Name:	OPTREX
Model Number:	T-55519D150J-LW-A-ABN
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

T-55519D150J-LW-A-ABN

Diagonal Size:

15.0"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1024(RGB)×768, XGA 85PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

304.128(W)×228.096(H) Mm

Frequency:

Designed For:

Industrial、Outdoor High Brightness

Supply Ability:

100000 Unit/Units per Month

Product Description

T-55519D150J-LW-A-ABN 15.0 inch 1024*768 1100 cd/m2 LCD Monitor screen

T-55519D150J-LW-A-ABN LCD Panel Product details :

Brand	OPTREX
Model P/N	T-55519D150J-LW-A-ABN
Diagonal Size	15.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)×768, XGA 85PPI
Pixel Format	RGB Vertical Stripe
Active Area	304.128(W)×228.096(H) mm
Bezel Opening	308.1(W)×232.1(H) mm
Outline Dim.	326(W)×255(H)×17.1(D) mm
Treatment	Antiglare, Hard coating (3H)
Luminance	1100 cd/m² (Typ.)
Contrast Ratio	1100:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	12/12 (Typ.)(Tr/Td)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Operating Mode	IPS, Normally Black, Transmissive
Support Color	262K/16.7M 72%NTSC
Light Source	WLED [5 strings × 2CN], 60K hours, W/O Driver
Weight	1.28Kgs (Typ.)
Designed For	Industrial,Outdoor High Brightness
Frame Rate	60Hz
Touch Panel	Without
Interface Type	LVDS (1 ch, 6/8-bit), 20 pinsConnector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -20 ~ 80 °C
T-55519D150J-LW-A-ABN 15.0 inch 1024*768 1100 cd/m2 LCD Monitor screen

T-55519D150J-LW-A-ABN LCD Screen Regarding Us:

For over a decade, we have been a trusted name in the Chinese market, specializing in the sale of high-quality LCD screens. Our extensive experience and dedication have allowed us to cater to a diverse range of industries, particularly focusing on industrial and medical applications. Whether you need compact screens as small as 0.5 inches or larger displays up to 88 inches, we have a broad selection to meet your requirements.

Our Product Range

We offer a comprehensive range of LCD screens from some of the most renowned and reliable brands in the industry. Our inventory includes:

Hitachi: Known for their durable and high-performance displays.

Samsung: Leading the market with cutting-edge technology and innovation.

Sharp: Renowned for their crystal-clear display quality and reliability.

NEC: A preferred choice for professional-grade monitors and displays.

Tianma: Recognized for their advanced industrial display solutions.

AUO: Providing a wide range of sizes and applications.

Fujitsu: Offering robust and efficient LCD solutions.

Kyocera: Known for their long-lasting and high-quality displays.

Technical Support

Beyond just providing screens, we also offer partial technical support to ensure that you can make the most out of your purchase. Our technical team is always ready to assist you with installation, troubleshooting, and any other technical queries you might have. We are committed to ensuring that our customers not only receive top-tier products but also the support they need to operate them efficiently.

T-55519D150J-LW-A-ABN LCD Panel Shipping and Package :

T-55519D150J-LW-A-ABN 15.0 inch 1024*768 1100 cd/m2 LCD Monitor screen 0

T-55519D150J-LW-A-ABN LCD Screen Shipping Information:

Quality Assurance

Before shipping, we conduct rigorous testing on all our LCD screens to ensure they meet our high standards of quality and performance. This thorough testing process helps us guarantee that you receive a product that is in perfect working condition.

Shipping Timeline

Once your payment is confirmed, we will proceed with the shipping process. Typically, we ship orders within 1-3 working days. Please be assured that we prioritize efficiency and aim to get your order to you as quickly as possible.

Shipping Address

We ship orders according to the shipping address provided at the time of purchase. If you need to change the shipping address, please contact us promptly to update your information before we dispatch your order. It's crucial to inform us in advance to avoid any shipping delays or errors.

Estimated Delivery Time

The delivery time for your order may vary depending on your location. Generally, you can expect your package to arrive within 7-30 days. Delivery times can differ significantly between countries due to factors such as customs processing and local postal services.

T-55519D150J-LW-A-ABN LCD Screen Returns Policy :

30-Day Money Back Guarantee

If you are not entirely satisfied with your LCD screen purchase, you can return it within 30 days of the purchase date for a full refund.

Return Process

Contact Us: To initiate a return, please contact our customer service team. Provide your purchasing information, including the order number and any other details that were sent to you at the time of purchase. This information helps us process your return efficiently.

Return Period: Ensure that your return is made within 30 days from the date of purchase. Returns made after this period may not be eligible for a refund.

Important Notes

The returned item must be in its original condition, including all accessories and packaging materials.

We recommend using a trackable shipping method for your return to ensure that it reaches us safely.

Once we receive and inspect the returned item, we will process your refund. Please allow a few business days for the refund to appear in your account.

T-55519D150J-LW-A-ABN LCD Panel FAQ :

Q: What does "We may ship a 100% compatible part number for your screen" mean?

A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.

Q: How long will I receive my goods of lcd T-55519D150J-LW-A-ABN ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: When will my order T-55519D150J-LW-A-ABN ship?

A: The order are shipped within 1-2 working days after received the payment.

Q: Do you accept the sample order?

A: Yes , sample order is welcome.
