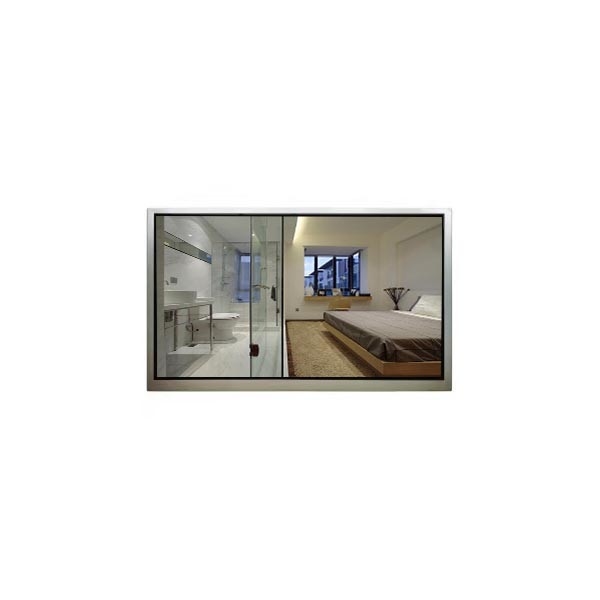

CM570X1-003 5.7 inch 720*1440 LCD Display Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | CSOT |
| Model Number: | CM570X1-003 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | CM570X1-003 | Diagonal Size: | 5.7" |
|---|---|---|---|
| Panel Type: | LTPS TFT-LCD, CELL, Full Cell | Resolution: | 720(RGB)×1440 282PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 64.8(W)×129.6(H) Mm |
| Designed For: | Mobile Phone | Touch Screen: | In-Cell Touch |
| Signal Interface: | MIPI (4 Data Lanes) | Environment: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
Product Description
CM570X1-003 5.7 inch 720*1440 LCD Display Screen
CM570X1-003 LCD Panel Product details :
| Brand | CSOT |
| Model P/N | CM570X1-003 |
| Diagonal Size | 5.7" |
| Panel Type | LTPS TFT-LCD, CELL, Full Cell |
| Resolution | 720(RGB)×1440 282PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 64.8(W)×129.6(H) mm |
| Bezel Opening | - |
| Outline Size | 66.36(W)×134.9(H)×0.46(D) mm |
| Surface | Glare (Haze 0%) |
| Brightness | 0 cd/m² |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Min.)(CR≥10) |
| Display Mode | FFS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 30 (Typ.)(Tr+Td) |
| Glass Depth | 0.15+0.15 mm |
| Transmissivity | 6.0% (Typ.)(with Polarizer) |
| Display Colors | 16.7M 69%NTSC |
| Lamp Type | No B/L |
| Frequency | - |
| Touch Screen | In-Cell Touch |
| Driver IC | COG Built-in FT8613 |
| Panel Weight | TBD |
| Application | Mobile Phone |
| Signal Interface | MIPI (4 data lanes) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
When considering the purchase of the CM570X1-003 LCD screen, it is essential to undertake a few key steps to ensure compatibility and a seamless integration into your device. Here are some important points to confirm before making your purchase:
1. Verification of Model, Screen Size, and Part Number:
Before finalizing your decision, carefully check your device's model, screen size, and part number. Confirming these details is crucial in guaranteeing that the CM570X1-003 LCD screen is the appropriate replacement for your current display. In case of uncertainty regarding compatibility, feel free to reach out to us by providing the specific model number along with clear photos of your original screen. This additional information will aid us in verifying compatibility and recommending the most suitable product for your needs.
2. Compatibility Assurance:
It's important to note that while the CM570X1-003 LCD screen may not have an identical model number to your original screen, we assure you that the panel we send is designed to be fully compatible with your device. We take measures to ensure that the replacement screen aligns perfectly with your model, guaranteeing a seamless fit. Our commitment is to provide you with a replacement screen that not only meets but exceeds the performance standards of your original display.
3. Quality Testing and Adhesive Tape:
Prior to shipment, each CM570X1-003 LCD screen undergoes rigorous testing to ensure its functionality and performance. This testing process is in place to identify and address any potential issues before the product reaches your hands. It is worth noting that adhesive tape is not included with the screen by default. If you require adhesive tape for the installation process, kindly leave a message specifying your need during the ordering process. This way, we can include the necessary adhesive tape to facilitate a smooth and secure installation of your new LCD screen.
CM570X1-003 LCD Panel Shipping and Package :
CM570X1-003 LCD Panel FAQ :
Q: Can you give me a discount if I need a large quantity of CM570X1-003 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of CM570X1-003 ?
A: we will give you tracking number then you can trace your order from website.
Q: How to make payment of CM570X1-003 ?
A: We accept T/T , Paypal , western union .
Q: Do you accept sample orders of CM570X1-003 ?
A: Of course!sample order is welcome !
