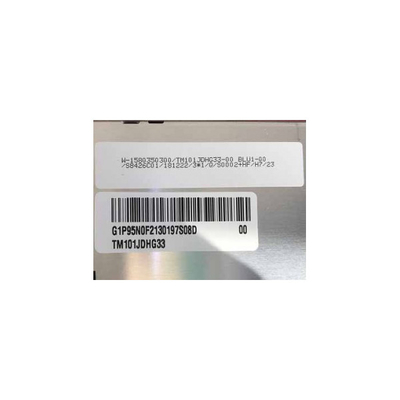

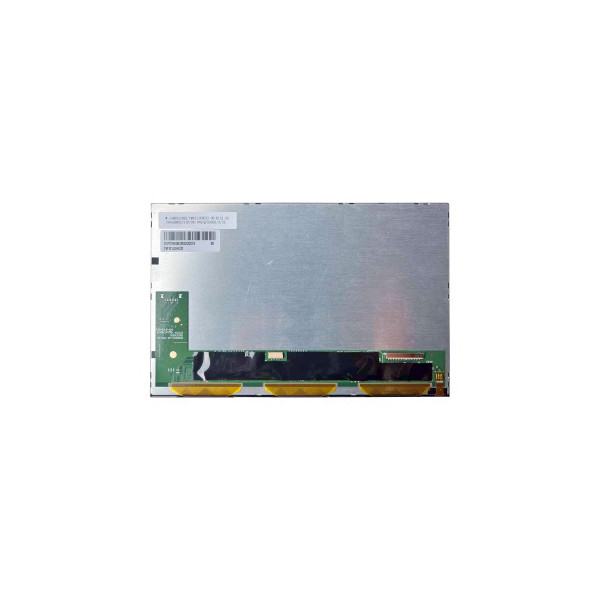

TM101JDHG33-00 1280*800 10.1 inch LCD Screen for Industrial
Product Details:
| Place of Origin: | China |
| Brand Name: | TIANMA |
| Model Number: | TM101JDHG33-00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TM101JDHG33-00 | Diagonal Size: | 10.1" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1280(RGB)×800, WXGA 149PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 216.96(W)×135.6(H) Mm |
| Designed For: | Industrial、Outdoor High Brightness、Healthcare | Frequency: | 60Hz |
| Display Colors: | 262K/16.7M 50%NTSC | Lamp Type: | WLED, 40K Hours, With LED Driver |
Product Description
TM101JDHG33-00 1280*800 10.1 inch LCD Screen for Industrial
TM101JDHG33-00 LCD Panel Product details :
| Brand | TIANMA |
| Model P/N | TM101JDHG33-00 |
| Diagonal Size | 10.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×800, WXGA 149PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 216.96(W)×135.6(H) mm |
| Bezel Opening | 219.96(W)×138.6(H) mm |
| Outline Size | 229.8(W)×149(H)×9.6(D) mm |
| Surface | Hard coating |
| Brightness | 900 cd/m² (Typ.) |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Display Mode | SFT, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Display Colors | 262K/16.7M 50%NTSC |
| Lamp Type | WLED, 40K hours, With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 280g (Typ.) |
| Application | Industrial,Outdoor High Brightness,Healthcare |
| Signal Interface | LVDS (1 ch, 6/8-bit), 40 pinsConnector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -40 ~ 80 °C |
