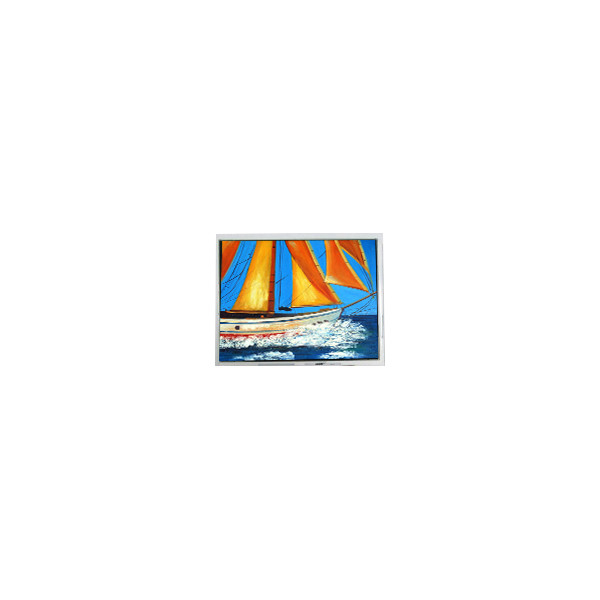

Original T-55335D150J-FW-A-AAN 1024*768 15.0inch LCD Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | OPTREX |
| Model Number: | T-55335D150J-FW-A-AAN |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | T-55335D150J-FW-A-AAN | Diagonal Size: | 15.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1024(RGB)×768, XGA 85PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 304.128(W)×228.096(H) Mm |
| Designed For: | Industrial、Outdoor High Brightness | Touch Screen: | Without |
Product Description
Original T-55335D150J-FW-A-AAN 1024*768 15.0inch LCD Screen
T-55335D150J-FW-A-AAN LCD Panel Product details :
| Brand | OPTREX |
| Model P/N | T-55335D150J-FW-A-AAN |
| Diagonal Size | 15.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×768, XGA 85PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 304.128(W)×228.096(H) mm |
| Bezel Opening | 308.1(W)×232.1(H) mm |
| Outline Size | 326(W)×267(H)×21(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 1500 cd/m² (Typ.) |
| Contrast Ratio | 650:1 (Typ.) (TM) |
| Viewing Angle | 70/70/50/60 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 6/19 (Typ.)(Tr/Td) |
| Display Colors | 262K/16.7M 50%NTSC |
| Lamp Type | 6 pcsCCFL, 50K hours, Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 1.90Kgs (Typ.) |
| Application | Industrial,Outdoor High Brightness |
| Signal Interface | LVDS (1 ch, 6/8-bit), 20 pinsConnector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -20 ~ 80 °C |
| Original T-55335D150J-FW-A-AAN 1024*768 15.0inch LCD Screen | |
