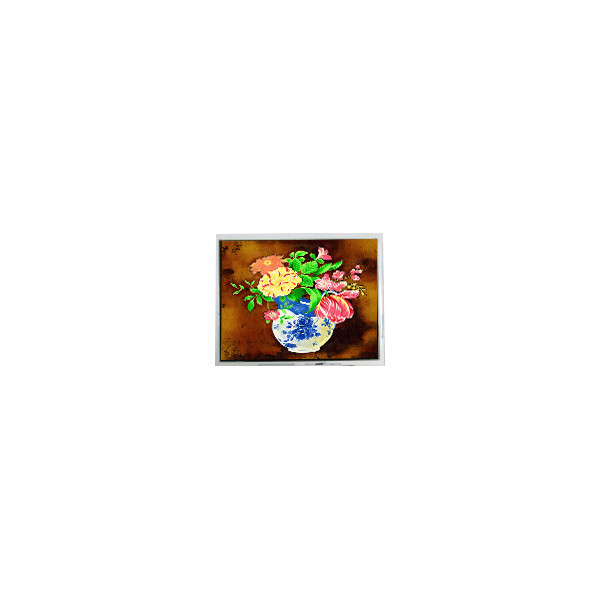

T-55265GD057J-LW-ACN 5.7 inch 262K LCD Touch Screen Display

All Category

Floor Standing Digital Signage

T-55265GD057J-LW-ACN 5.7 inch 262K LCD Touch Screen Display

Brand Name:	OPTREX
Model Number:	T-55265GD057J-LW-ACN
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

T-55265GD057J-LW-ACN

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

320(RGB)×240, QVGA 70PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

115.2(W)×86.4(H) Mm

Designed For:

Industrial

Touch Screen:

4-wire Resistive Touch

Supply Ability:

100000 Unit/Units per Month

Product Description

T-55265GD057J-LW-ACN 5.7 inch 262K LCD Touch Screen Display

T-55265GD057J-LW-ACN LCD Panel Product details :

Brand	OPTREX
Model P/N	T-55265GD057J-LW-ACN
Diagonal Size	5.7"
Panel Type	a-Si TFT-LCD, LCM
Resolution	320(RGB)×240, QVGA 70PPI
Pixel Format	RGB Vertical Stripe
Active Area	115.2(W)×86.4(H) mm
Bezel Opening	119.8(W)×91.0(H) mm
Outline Size	144(W)×104.6(H)×15.1(D) mm
Surface	-
Brightness	400 cd/m² (Typ.)
Contrast Ratio	350:1 (Typ.) (TM)
Viewing Angle	70/70/70/70 (Typ.)(CR≥5)
Display Mode	TN, Normally White, Transmissive
Best View on	6 o'clock
Response Time	21/10 (Typ.)(Tr/Td)
Display Colors	262K 56%NTSC
Lamp Type	4S3PWLED, Without Driver
Frequency	60Hz
Touch Screen	4-wire Resistive Touch
Panel Weight	306.0g (Max.)
Application	Industrial
Signal Interface	Parallel RGB (1 ch, 6-bit), 33 pins Connector
Input Voltage	3.3V (Typ.)(VCC)
Environment	Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C
T-55265GD057J-LW-ACN 5.7 inch 262K LCD Touch Screen Display

T-55265GD057J-LW-ACN LCD Panel Payment Instructions :

Accepted Payment Methods:

We prioritize the safety and convenience of our customers by accepting payments through Escrow, which allows you to pay securely online using your Credit Card.

Payment Timeline:

To ensure the timely processing and shipping of your order, please make your payment within 3 days of placing the order. Prompt payment is appreciated and helps us maintain efficient service. If you encounter any issues or delays with your payment, please don't hesitate to contact us immediately. We are here to assist you and resolve any problems to ensure a smooth transaction.

T-55265GD057J-LW-ACN LCD Panel Shipping and Package :

T-55265GD057J-LW-ACN LCD Panel Shipment Information :

Shipping Address:

We will ship your order to the address provided at the time of payment. Please ensure the address you entered is correct and up-to-date to avoid any delivery issues.

Estimated Delivery Time:

Typically, your order will arrive within 15-35 days. For orders shipped to Brazil, the estimated delivery time is 20-40 days. Some countries or regions may experience longer shipping times.

Delayed Shipments:

If your parcel has not arrived within the expected timeframe, please contact us first before taking any further action. We are here to assist you and will work to provide a satisfactory resolution.

Dispute Policy:

Please refrain from opening a dispute within the first 60 days after placing your order. If your order has not arrived after 60 days, you may contact us to request a refund or a resend of the product.

Customs Duty and Import Tax:

We are not responsible for any customs duties or import taxes that may be applicable in your country. Please check your local customs regulations for more information.

Important Instructions for Receiving and Handling Your T-55265GD057J-LW-ACN LCD Panel :

Inspecting the Package Upon Arrival:

When you receive the package, carefully inspect its condition.

If you notice any obvious damage, dents, or deformities, prepare to record a video as you open the package. This evidence is crucial for any potential claims.

Reporting Damaged Goods:

If you find that the LCD panel is damaged, immediately take detailed images and videos showing the damage.

Send these visuals to us to document the issue.

Our team will handle shipping-related damages but not those caused during installation. To secure your rights, provide the requested evidence and initiate a dispute for a refund if necessary.

Testing Before Installation:

After confirming the screen is undamaged, thoroughly test its functionality before proceeding with installation.

Do not attempt to install the screen yourself unless you are a professional. We recommend that installation be carried out by qualified technical personnel. We are not responsible for damages resulting from unprofessional installation.

Product Authenticity and Labels:

Each product from our store includes a unique anti-tear label.

Do not remove this label, as it verifies the product's authenticity and origin from our store.

Documenting Product Issues:

If you encounter any issues with the product, ensure that your video proof includes the labels as evidence.

Following these guidelines will help ensure a smooth process and protect your purchase rights. Thank you for your cooperation.

T-55265GD057J-LW-ACN LCD Panel FAQ :

Q: What does "We may ship a 100% compatible part number for your screen" mean?

A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.

Q: When will my order T-55265GD057J-LW-ACN ship?

A: The order are shipped within 1-2 working days after received the payment.

Q: How long will I receive my goods of lcd T-55265GD057J-LW-ACN ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: Do you accept the sample order?

A: Yes , sample order is welcome.
