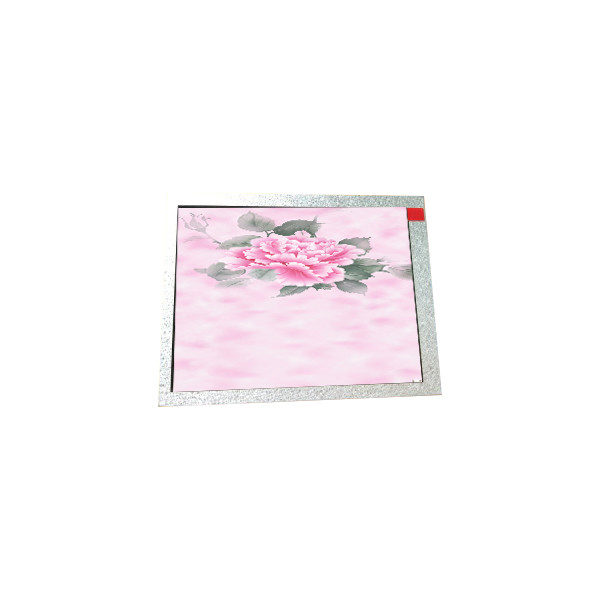

TM070RDHG11-40 7.0 inch 800*480 LCD display FOR Digital Photo Frame
Product Details:
| Place of Origin: | China |
| Brand Name: | TIANMA |
| Model Number: | TM070RDHG11-40 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TM070RDHG11-40 | Diagonal Size: | 7.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 800(RGB)×480, WVGA 134PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 154.08(W)×85.92(H) Mm |
| Designed For: | Digital Photo Frame、Portable DVD Player | Frequency: | 60Hz |
| Viewing Angle: | 70/70/60/70 (Typ.)(CR≥10) | Response: | 25 (Typ.)(Tr+Td) Ms |
Product Description
TM070RDHG11-40 7.0 inch 800*480 LCD display FOR Digital Photo Frame
TM070RDHG11-40 LCD Panel Product details :
| Brand | TIANMA |
| Model P/N | TM070RDHG11-40 |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 134PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 154.08(W)×85.92(H) mm |
| Bezel Opening | 157.08(W)×89.39(H) mm |
| Outline(mm) | 164.9 × 100× 5.9 (H×V×D) |
| Treatment | Antiglare |
| Luminance | 350 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | 70/70/60/70 (Typ.)(CR≥10) |
| Response | 25 (Typ.)(Tr+Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 16.7M 50%NTSC |
| Backlight | 3S7PWLED, 50K hours, No Driver |
| Mass | 160g (Typ.) |
| Used for | Digital Photo Frame,Portable DVD Player |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | Parallel RGB (1 ch, 8-bit), 50 pins FPC |
| Voltage Supply | 3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
TM070RDHG11-40 LCD Panel Shipping and Package :
It is important to provide accurate and complete destination address during order payment. This ensures that your parcel is dispatched to the right location and arrives safely at its destination. Providing incomplete or incorrect address details can cause delays in delivery or even result in your parcel being returned to the sender.
Therefore, to avoid any inconvenience, please double check your address details before finalizing your order. We take pride in ensuring timely and efficient delivery of all our parcels, so we appreciate your cooperation in providing us with the correct destination address.
Thank you for choosing our service and we look forward to serving you in the future.
TM070RDHG11-40 LCD Panel FAQ :
Q: Can you tested the TM070RDHG11-40 before shipping ?
A: Of course , our lcd panel TM070RDHG11-40 was Strictly tested before shipping.
Q: How to order TM070RDHG11-40 ?
A: We accept T/T , Paypal , western union .
Q: What happen if the lcd panel TM070RDHG11-40 received can't work ?
A:TM070RDHG11-40 was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
