LCD Screen Display Panel

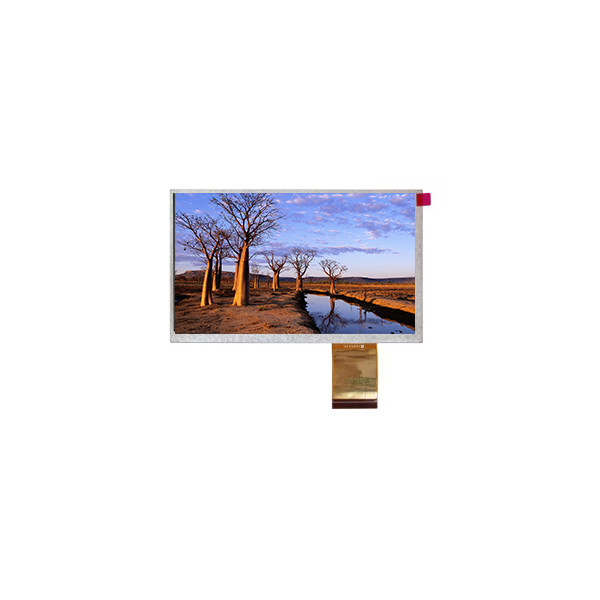

NEW 8.0 inch TM080JDKP99 1280*720 LCD Screen display

All Category

Floor Standing Digital Signage

NEW 8.0 inch TM080JDKP99 1280*720 LCD Screen display

Brand Name:	TIANMA
Model Number:	TM080JDKP99
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TM080JDKP99

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1280(RGB)×720, WXGA 184PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

176.64(W)×99.36(H) Mm

Designed For:

Automotive Display

Frequency:

Signal Interface:

LVDS (1 Ch, 8-bit), 30 PinsFPC

Input Voltage:

3.3V (Typ.)

Supply Ability:

100000 Unit/Units per Month

Product Description

NEW 8.0 inch TM080JDKP99 1280*720 LCD Screen display

TM080JDKP99 LCD Panel Product details :

Brand	TIANMA
Model P/N	TM080JDKP99
Diagonal Size	8.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)×720, WXGA 184PPI
Pixel Format	RGB Vertical Stripe
Active Area	176.64(W)×99.36(H) mm
Bezel Opening	179.64(W)×102.36(H) mm
Outline Size	192.8(W)×116.9(H) mm
Brightness	800 cd/m² (Typ.)
Viewing Angle	88/88/88/88 (Typ.)(CR≥10)
Best View on	Symmetry
Display Colors	16.7M 74%NTSC
Frequency	60Hz
Weight	TBD
Surface	Hard coating
Contrast Ratio	1300:1 (Typ.) (TM)
Display Mode	IPS, Normally Black, Transmissive
Response Time	25 (Typ.)(Tr+Td)
Lamp Type	6S3P WLED , 30K hours , Without Driver
Touch Screen	Without
Application	Automotive Display
Signal Interface	LVDS (1 ch, 8-bit), 30 pinsFPC
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: -30 ~ 85 °C ;Storage Temp.: -40 ~ 90 °C; Vibration Level: 3.0G (29.4 m/s²)

TM080JDKP99 LCD Panel Payment Instructions :

Accepted Payment Methods:

We prioritize the safety and convenience of our customers by accepting payments through Escrow, which allows you to pay securely online using your Credit Card.

Payment Timeline:

To ensure the timely processing and shipping of your order, please make your payment within 3 days of placing the order. Prompt payment is appreciated and helps us maintain efficient service. If you encounter any issues or delays with your payment, please don't hesitate to contact us immediately. We are here to assist you and resolve any problems to ensure a smooth transaction.

TM080JDKP99 LCD Panel Shipping and Package :

TM080JDKP99 LCD Panel Shipment Information :

Shipping Address:

We will ship your order to the address provided at the time of payment. Please ensure the address you entered is correct and up-to-date to avoid any delivery issues.

Estimated Delivery Time:

Typically, your order will arrive within 15-35 days. For orders shipped to Brazil, the estimated delivery time is 20-40 days. Some countries or regions may experience longer shipping times.

Delayed Shipments:

If your parcel has not arrived within the expected timeframe, please contact us first before taking any further action. We are here to assist you and will work to provide a satisfactory resolution.

Dispute Policy:

Please refrain from opening a dispute within the first 60 days after placing your order. If your order has not arrived after 60 days, you may contact us to request a refund or a resend of the product.

Customs Duty and Import Tax:

We are not responsible for any customs duties or import taxes that may be applicable in your country. Please check your local customs regulations for more information.

Important Instructions for Receiving and Handling Your TM080JDKP99 LCD Panel :

Inspecting the Package Upon Arrival:

When you receive the package, carefully inspect its condition.

If you notice any obvious damage, dents, or deformities, prepare to record a video as you open the package. This evidence is crucial for any potential claims.

Reporting Damaged Goods:

If you find that the LCD panel is damaged, immediately take detailed images and videos showing the damage.

Send these visuals to us to document the issue.

Our team will handle shipping-related damages but not those caused during installation. To secure your rights, provide the requested evidence and initiate a dispute for a refund if necessary.

Testing Before Installation:

After confirming the screen is undamaged, thoroughly test its functionality before proceeding with installation.

Do not attempt to install the screen yourself unless you are a professional. We recommend that installation be carried out by qualified technical personnel. We are not responsible for damages resulting from unprofessional installation.

Product Authenticity and Labels:

Each product from our store includes a unique anti-tear label.

Do not remove this label, as it verifies the product's authenticity and origin from our store.

Documenting Product Issues:

If you encounter any issues with the product, ensure that your video proof includes the labels as evidence.

Following these guidelines will help ensure a smooth process and protect your purchase rights. Thank you for your cooperation.

TM080JDKP99 LCD Panel FAQ :

Q: How do you ship my goods TM080JDKP99 ?

A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.

Q: Are you manufactory or trade company ?

A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.

Q: Can You declare my order of lcd display screen TM080JDKP99 at a very low value ?

A: Yes , we can . pls inform us before shipping .

Q: How long is the warranty of TM080JDKP99 ?

A: 90 days warranty .
