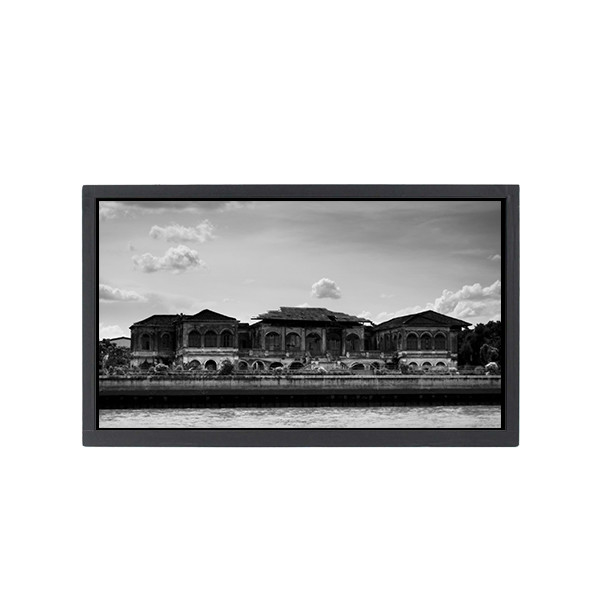

15.0 inch NV150FHB-T30 1920*1080 FHD LCD Screen Display Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | NV150FHB-T30 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | NV150FHB-T30 | Diagonal Size: | 15.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, FOB | Resolution: | 1920(RGB)×1080, FHD 146PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 332.064(W)×186.786(H) Mm |
| Touch Panel: | On-Cell Touch, I²C | Designed For: | Laptop |
| Interface Type: | EDP (2 Lanes)40 Pins Connector | Power Supply: | 3.3V (Typ.) |
Product Description
15.0 inch NV150FHB-T30 1920*1080 FHD LCD Screen Display Panel
NV150FHB-T30 LCD Panel Product details :
| Brand | BOE |
| Model P/N | NV150FHB-T30 |
| Diagonal Size | 15.0" |
| Panel Type | a-Si TFT-LCD, CELL, FOB |
| Resolution | 1920(RGB)×1080, FHD 146PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 332.064(W)×186.786(H) mm |
| Outline Dim. | 343.24(W)×197.21(H)×1.82(D) mm |
| Luminance | 0 cd/m² |
| View Direction | Symmetry |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Plate Thickness | 0.40+0.40 mm |
| Support Color | 16.7M 100% sRGB |
| Frame Rate | 60Hz |
| Treatment | Anti-Scatter |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Response Time | 30 (Typ.)(Tr+Td) |
| Operating Mode | ADS, Normally Black, Transmissive |
| Transmittance | 5.6% (Typ.) |
| Light Source | No B/L |
| Designed For | Laptop |
| Touch Panel | On-Cell Touch, I²C |
| D-IC Detail | COG Built-in 3 source chips |
| Interface Type | eDP (2 Lanes)40 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C |
NV150FHB-T30 LCD Screen Report Item :
Product Overview:
We specialize in the sale of industrial LCD panels and touch screens, offering a wide range of products and technical support. Our inventory includes LCD screens and touch screens from 5.7 inches to 42 inches, suitable for numerous industrial purposes.
Product Information and Services:
Comprehensive Product Information: We provide detailed product information for all types of LCD screens and touch screens, including specifications, features, and compatibility.
Technical Consultation: Our team of experts is available to offer technical consultations, helping you select the right screen for your specific needs and ensuring optimal performance.
Stock and Availability:
Our extensive stock ranges from 5.7 inches to 42 inches, catering to various industrial requirements. Whether you need a display for vehicles, medical equipment, injection molding machines, or other industrial equipment, we have the right solution for you.
Why Choose Us:
Extensive Inventory: A wide range of sizes and specifications to meet diverse industrial needs.
Expert Support: Professional technical consultation to guide you through the selection process.
Quality Assurance: High-quality products designed for durability and reliability in industrial applications.
NV150FHB-T30 LCD Panel Shipping and Package :
NV150FHB-T30 LCD Screen Goods Inspection Agreement:
After receiving the goods from the transportation company, we kindly request that you thoroughly inspect the package in the presence of the delivery personnel. It is necessary to check whether there are any signs of damage to the packaging or the product itself. If you discover any such damage, we recommend that you refuse delivery and request photographic evidence to support the claim. From the perspective of the courier company, these photos are third-party evidence.
Once you have obtained two sets of photos, please forward them to us for review. We will carefully evaluate the extent of the damage and determine responsibility accordingly. It must be noted that without third-party evidence from the courier company, we cannot compensate for any damages caused.
By adhering to this protocol, our goal is to ensure a transparent and fair resolution process in the event of unfortunate incidents of cargo damage during transportation.
Photographic evidence should be provided in two parts:
Customer evidence:
Take clear and detailed photos of damaged packaging or products as evidence.
These photos can serve as proof of your perspective as a customer.
Evidence from the courier company:
Please ask the courier company to take photos of the damaged package or product.
NV150FHB-T30 LCD Screen Feedback :
- If you are satisfied with your purchase, please leave us a positive feedback when you receive the item. We will be happy.
- If there is any problem with the item, please contact me at the first time. We will help you solve the problem and do our best to make you satisfied.
- I believe communication will solve all problems. So, please don't hesitate to contact me.
- Glad to do business with you! Have a nice day!
NV150FHB-T30 LCD Panel FAQ :
Q: Can You declare my order of NV150FHB-T30 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: If I place order now,when will you ship the goods of NV150FHB-T30 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can I pay my order of NV150FHB-T30 via credit card ?
A:Yes!you can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90days warranty .
