Brand Name: | OPTREX |
Model Number: | T-51750GD065J-LW-ANN |
MOQ: | 1 pcs |
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Payment Terms: | T/T, Western Union |

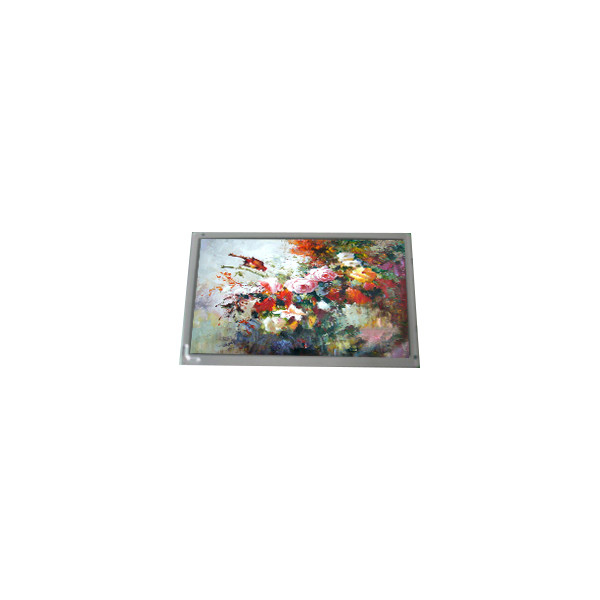

640*480 T-51750GD065J-LW-ANN 6.5 inch 262K LCD Screen Display
T-51750GD065J-LW-ANN LCD Panel Product details :
Brand | OPTREX |
Model P/N | T-51750GD065J-LW-ANN |
Diagonal Size | 6.5" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 640(RGB)×480, VGA 122PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 132.48(W)×99.36(H) mm |
Bezel Opening | 135.46(W)×101.9(H) mm |
Outline (mm) | 158×120.36×11.05 (H×V×D) |
Treatment | Antireflection |
Luminance | 600 cd/m² (Typ.) |
Contrast Ratio | 300 : 1 (Typ.) (TM) |
Viewing Angle | 55/55/30/55 (Typ.)(CR≥10) |
Response | 15/16 (Typ.)(Tr/Td) ms |
Good View at | 6 o'clock |
Work Mode | TN, Normally White, Transmissive |
Color Depth | 262K 41%NTSC |
Backlight | 8S2P×2CNWLED, No Driver |
Mass | 230g (Typ.) |
Used for | Industrial |
Refresh Rate | 60Hz |
Touchscreen | Without |
Signal Type | Parallel RGB (1 ch, 6-bit), Connector31 pins |
Voltage Supply | 3.3/5.0V (Typ.)(VCC) |
Max. Ratings | Storage Temp.: -25 ~ 85 °C Operating Temp.: -20 ~ 70 °C |
640*480 T-51750GD065J-LW-ANN 6.5 inch 262K LCD Screen Display |
T-51750GD065J-LW-ANN LCD Panel Shipping and Package :
T-51750GD065J-LW-ANN LCD Panel FAQ :
Q: Can you give me a discount if I need a large quantity of T-51750GD065J-LW-ANN ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of T-51750GD065J-LW-ANN to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: How long will I receive my goods T-51750GD065J-LW-ANN ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
