LCD Screen Display Panel

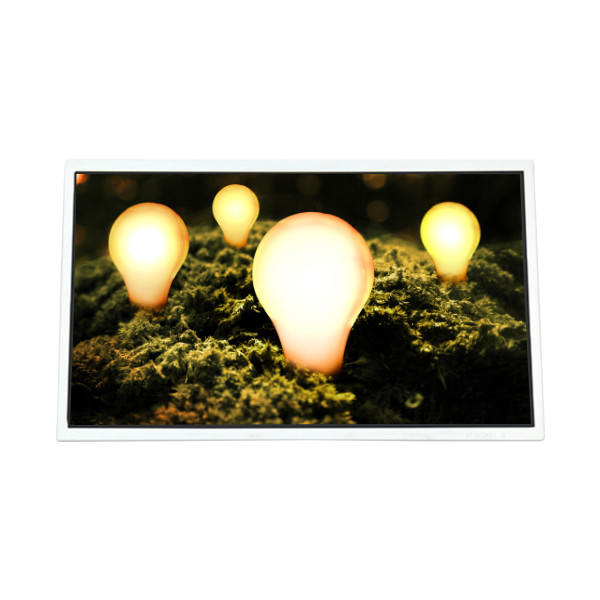

MV230FHM-N20 23.0 inch 1920*1080 WLED LCD screen Panel

All Category

Floor Standing Digital Signage

MV230FHM-N20 23.0 inch 1920*1080 WLED LCD screen Panel

Brand Name:	BOE
Model Number:	MV230FHM-N20
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

MV230FHM-N20

Diagonal Size:

23.0"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1920(RGB)×1080, FHD 95PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

509.184(W)×286.416(H) Mm

Brightness:

250 Cd/m² (Typ.)

Designed For:

Desktop Monitor

Surface:

Antiglare (Haze 25%), Hard Coating (3H)

Display Mode:

ADS, Normally Black, Transmissive

Supply Ability:

100000 Unit/Units per Month

Product Description

MV230FHM-N20 23.0 inch 1920*1080 WLED LCD screen Panel

MV230FHM-N20 LCD Panel Product details :

Brand	BOE
Model P/N	MV230FHM-N20
Diagonal Size	23.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1080, FHD 95PPI
Pixel Format	RGB Vertical Stripe
Active Area	509.184(W)×286.416(H) mm
Bezel Opening	-
Outline Size	517.2(W)×302.8(H)×12.7(D) mm
Brightness	250 cd/m² (Typ.)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Best View on	Symmetry
Display Colors	16.7M 72%NTSC
Frequency	60Hz
Weight	2.10Kgs (Typ.)
Surface	Antiglare (Haze 25%), Hard coating (3H)
Contrast Ratio	1000:1 (Min.) (TM)
Display Mode	ADS, Normally Black, Transmissive
Response Time	14 (Typ.)(G to G)
Lamp Type	18S3P WLED , 30K hours , Without Driver
Touch Screen	Without
Application	Desktop Monitor
Signal Interface	LVDS (2 ch, 8-bit), 30 pinsConnector
Input Voltage	5.0V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C

MV230FHM-N20 LCD Display About Us :

Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.

Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.

Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.

MV230FHM-N20 LCD Display Product Details :

Condition:

Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.

Order Guidance:

If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.

Product Authenticity:

The LCD screens are original and are thoroughly tested before being sent to you.

MV230FHM-N20 LCD Display Friendly Reminder :

- Installation Guide:

- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.

- Professional Installation Recommended:

- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.

- Disassembly Knowledge:

- Make sure you understand the disassembly procedure before making a purchase.

- Return Policy:

- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.

MV230FHM-N20 LCD Panel Shipping and Package :

MV230FHM-N20 LCD Panel FAQ :

Q: Can I pay my order of MV230FHM-N20 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: Can you give me a discount if I need a large quantity of MV230FHM-N20 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Do you accept sample orders of MV230FHM-N20 ?

A: Of course!sample order is welcome !

Q: How can I trace my order of MV230FHM-N20 ?

A: we will give you tracking number then you can trace your order from website.
