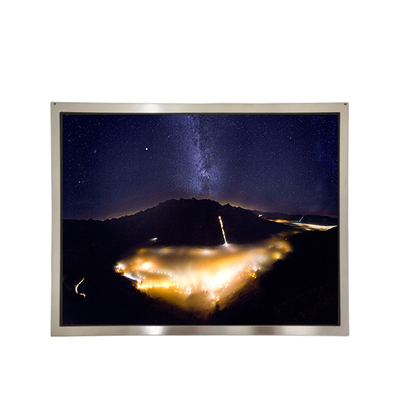

Original 1366*768 B116XTN02.2 HW2A 11.6 inch LCD screen Monitor
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B116XTN02.2 HW2A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B116XTN02.2 HW2A | Diagonal Size: | 11.6" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1366(RGB)×768, WXGA 135PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 256.125(W)×144(H) Mm |
| Touch Screen: | 6 O'clock | Designed For: | Laptop ，Netbook PC |
| Shape Style: | Slim (PCBA Flat, T≤3.2mm) | Frame Rate: | 60Hz |
Product Description
Original 1366*768 B116XTN02.2 HW2A 11.6 inch LCD screen Monitor
B116XTN02.2 HW2A LCD Panel Product details :
| Brand | AUO |
| Model P/N | B116XTN02.2 HW2A |
| Diagonal Size | 11.6" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1366(RGB)×768, WXGA 135PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 256.125(W)×144(H) mm |
| Bezel Opening | - |
| Outline Dim. | 278(W)×172(H) ×3(D) mm |
| Treatment | Glare (Haze 0%), Hard coating (3H) |
| Luminance | 220 cd/m² (Typ.) |
| Contrast Ratio | 400:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 8 (Typ.)(Tr+Td) |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K 45% NTSC |
| Light Source | WLED , 10K hours , With LED Driver |
| Shape Style | Slim (PCBA Flat, T≤3.2mm) |
| Designed For | Laptop ,Netbook PC |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | eDP (1 Lane) , eDP1.2 , 40 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
B116XTN02.2 HW2A LCD Display About Us :
Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.
Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.
Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.
B116XTN02.2 HW2A LCD Display Product Details :
Condition:
Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.
Order Guidance:
If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.
Product Authenticity:
The LCD screens are original and are thoroughly tested before being sent to you.
B116XTN02.2 HW2A LCD Display Friendly Reminder :
- Installation Guide:
- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.
- Professional Installation Recommended:
- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.
- Disassembly Knowledge:
- Make sure you understand the disassembly procedure before making a purchase.
- Return Policy:
- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.
B116XTN02.2 HW2A LCD Panel Shipping and Package :
B116XTN02.2 HW2A LCD Panel FAQ :
Q: Can you give me a discount if I need a large quantity of B116XTN02.2 HW2A ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of B116XTN02.2 HW2A to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How to make payment of B116XTN02.2 HW2A ?
A: We accept T/T , Paypal , western union .
Q: How long is the warranty ?
A: We offer 90 days warranty .
Want to Know more details about this product
