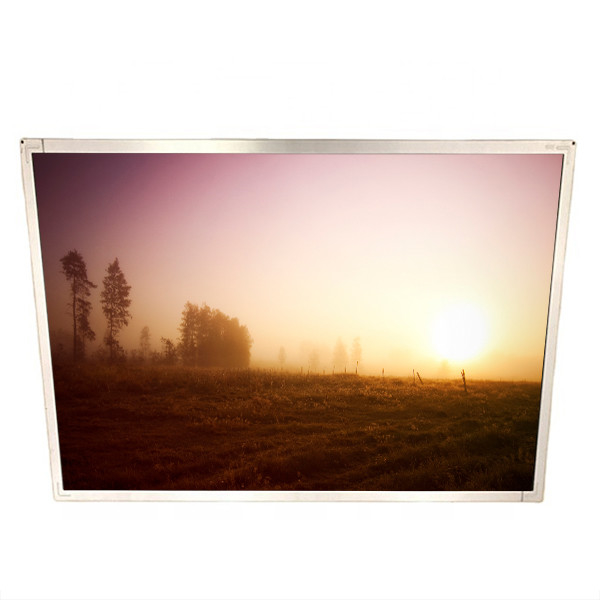

17.3 inch B173HAN01.1 HW0A LCD screen FOR Laptop
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B173HAN01.1 HW0A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B173HAN01.1 HW0A | Diagonal Size: | 17.3" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1920(RGB)×1080, FHD 127PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 381.888(W)×214.812(H) Mm |
| View Direction: | Symmetry | Designed For: | Laptop |
| Response Time: | 25 (Typ.)(Tr+Td) Ms | Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) |
Product Description
17.3 inch B173HAN01.1 HW0A LCD screen FOR Laptop
B173HAN01.1 HW0A LCD Panel Product details :
| Brand | AUO |
| Model P/N | B173HAN01.1 HW0A |
| Diagonal Size | 17.3" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 127PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 381.888(W)×214.812(H) mm |
| Bezel Opening | - |
| Outline Dim. | 398.1(W)×250.5(H)×4(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 700 : 1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) ms |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | AHVA, Normally Black, Transmissive |
| Support Color | 16.2M 72% NTSC |
| Light Source | WLED , 15K hours , With LED Driver |
| Outline Shape | Flat (PCBA Flat, T3.4~4.0mm) |
| Designed For | Laptop |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | eDP (2 Lanes) , eDP1.3 , 30 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
B173HAN01.1 HW0A LCD Display About Us :
Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.
Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.
Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.
B173HAN01.1 HW0A LCD Display Product Details :
Condition:
Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.
Order Guidance:
If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.
Product Authenticity:
The LCD screens are original and are thoroughly tested before being sent to you.
B173HAN01.1 HW0A LCD Display Friendly Reminder :
- Installation Guide:
- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.
- Professional Installation Recommended:
- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.
- Disassembly Knowledge:
- Make sure you understand the disassembly procedure before making a purchase.
- Return Policy:
- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.
B173HAN01.1 HW0A LCD Panel Shipping and Package :
B173HAN01.1 HW0A LCD Panel FAQ :
Q: Can you test the lcd panel B173HAN01.1 HW0A before shipping ?
A: Yes , of course , don't worry , our item was tested ok before shipping .
Q: Do you accept the sample order B173HAN01.1 HW0A ?
A: Yes , sample order is welcome.
Q: Can you declared low value of my order B173HAN01.1 HW0A ?
A: Yes , we can , you can tell us before shipping .
Q: How long the warranty of lcd B173HAN01.1 HW0A ?
A: 90 days .
Want to Know more details about this product
