LCD Screen Display Panel

8.0 inch 800*480 M080AWP4 R3 LCD screen FOR Automotive Display

All Category

Floor Standing Digital Signage

8.0 inch 800*480 M080AWP4 R3 LCD screen FOR Automotive Display

Brand Name:	IVO
Model Number:	M080AWP4 R3
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

M080AWP4 R3

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

800(RGB)×480, WVGA 116PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

176.64(W)×99.36(H) Mm

Lamp Type:

3S10PWLED, 30K Hours, Without Driver

Designed For:

Automotive Display

Brightness:

450 Cd/m² (Typ.)

Contrast Ratio:

500:1 (Typ.) (TM)

Supply Ability:

100000 Unit/Units per Month

Product Description

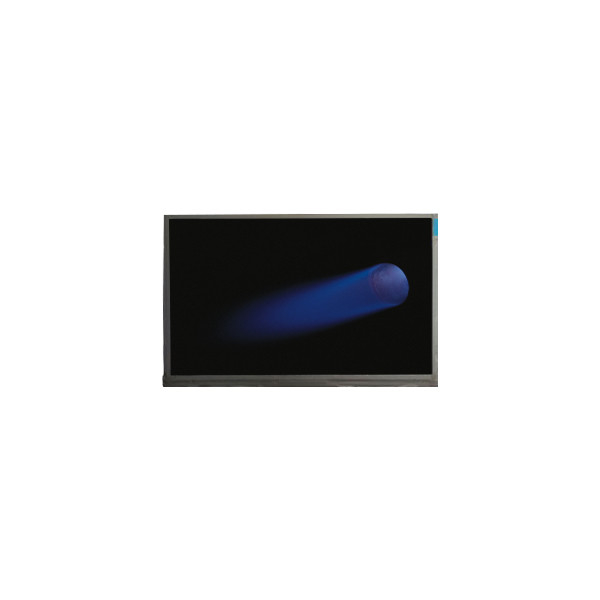

8.0 inch 800*480 M080AWP4 R3 LCD screen FOR Automotive Display

M080AWP4 R3 LCD Panel Product details :

Brand	IVO
Model P/N	M080AWP4 R3
Diagonal Size	8.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×480, WVGA 116PPI
Pixel Format	RGB Vertical Stripe
Active Area	176.64(W)×99.36(H) mm
Bezel Opening	180.1(W)×102.4(H) mm
Outline Size	192.8(W)×116.9(H)×6.7(D) mm
Surface	Antiglare, Hard coating (3H)
Brightness	450 cd/m² (Typ.)
Contrast Ratio	500:1 (Typ.) (TM)
Viewing Angle	75/75/60/70 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Best View on	-
Response Time	25 (Typ.)(Tr+Td)
Display Colors	262K/16.2M 48%NTSC
Lamp Type	3S10PWLED, 30K hours, Without Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	222g (Max.)
Application	Automotive Display
Signal Interface	Parallel RGB (1 ch, 6/8-bit), 60 pins FPC
Input Voltage	3.3/12/18/-6V (Typ.)(VCC/AVDD/VGH/VGL)
Environment	Operating Temp.: -30 ~ 85 °C ;Storage Temp.: -40 ~ 95 °C

M080AWP4 R3 LCD Display About Us :

Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.

Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.

Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.

M080AWP4 R3 LCD Display Product Details :

Condition:

Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.

Order Guidance:

If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.

Product Authenticity:

The LCD screens are original and are thoroughly tested before being sent to you.

M080AWP4 R3 LCD Display Friendly Reminder :

- Installation Guide:

- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.

- Professional Installation Recommended:

- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.

- Disassembly Knowledge:

- Make sure you understand the disassembly procedure before making a purchase.

- Return Policy:

- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.

M080AWP4 R3 LCD Panel Shipping and Package :

M080AWP4 R3 LCD Panel FAQ :

Q: How to order M080AWP4 R3 ?

A: We accept the T/T , Western union , paypal .

Q: How long the warranty of M080AWP4 R3 ?

A: 90 days .

Q: Can you declared low value for my order M080AWP4 R3 when shipping?

A: Yes, Pls leave the value you want .

Q: What happen if the lcd panel M080AWP4 R3 I received can't work ?

A: Our M080AWP4 R3 was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
