LCD Screen Display Panel

Hot Sell 23.6 inch HM236WU1-400 1920*1080 LCD Panel display

All Category

Floor Standing Digital Signage

Stretched Bar LCD Display

chance

info@yongs-hk.com

86-18575563918

Contact Now

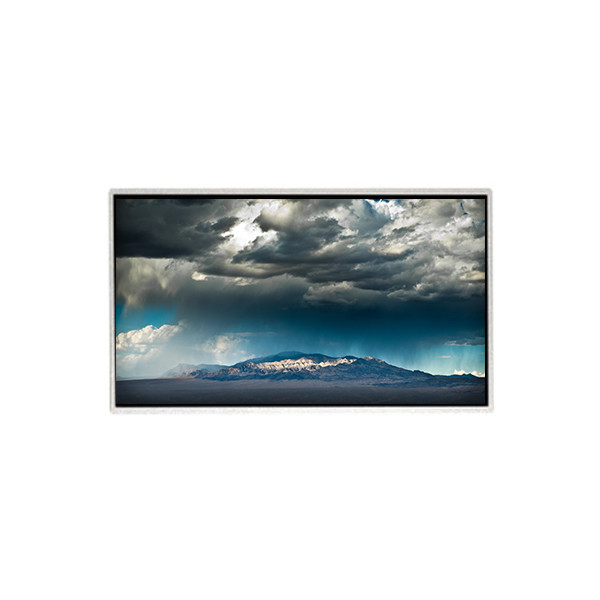

Hot Sell 23.6 inch HM236WU1-400 1920*1080 LCD Panel display

Brand Name:	BOE
Model Number:	HM236WU1-400
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

HM236WU1-400

Diagonal Size:

23.6"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1920(RGB)×1080, FHD 93PPI

Operating Mode:

RGB Vertical Stripe

Active Area:

521.28(W)×293.22(H) Mm

Light Source:

WLED [4 Strings] , 30K Hours , W/O Driver

Designed For:

Desktop Monitor

Interface Type:

LVDS (2 Ch, 8-bit)30 Pins Connector

Environment:

Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C

Supply Ability:

100000 Unit/Units per Month

Product Description

Hot Sell 23.6 inch HM236WU1-400 1920*1080 LCD Panel display

HM236WU1-400 LCD Panel Product details :

Brand	BOE
Model P/N	HM236WU1-400
Diagonal Size	23.6"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1080, FHD 93PPI
Pixel Format	RGB Vertical Stripe
Active Area	521.28(W)×293.22(H) mm
Bezel Opening	525.22(W)×297.22(H) mm
Outline Dim.	544.8(W)×320.5(H)×9.6(D) mm
Luminance	250 cd/m² (Typ.)
View Direction	6 o'clock
Viewing Angle	85/85/80/80 (Typ.)(CR≥10)
Support Color	16.7M 72% NTSC
Weight	2.20Kgs (Typ.)
Frame Rate	60Hz
Treatment	Antiglare (Haze 25%), Hard coating (3H)
Contrast Ratio	1000:1 (Typ.) (TM)
Response Time	1.5/3.5 (Typ.)(Tr/Td)
Operating Mode	TN, Normally White, Transmissive
Light Source	WLED [4 strings] , 30K hours , W/O Driver
Designed For	Desktop Monitor
Touch Panel	Without
Interface Type	LVDS (2 ch, 8-bit)30 pins Connector
Power Supply	5.0V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C

HM236WU1-400 LCD Panel Shipment :

· We're not responsible for any accidents delays or other issues that are the resposibility of the shipping service.But we will help you to track the package until you get.

· Please make sure to double check your address before completing your payment.

· An email will be sent as package is process for shipment .We will provide tracking number for you to check the package online.

· Customers are responsible for customs taxes and duties where applicable.

· Any import charges or fees are the buyer's responsibility. If the package can't be delivered because of the buyers reason(including refusing to sign), buyer should afford all the extra cost!

HM236WU1-400 LCD Panel Shipping and Package :

Hot Sell 23.6 inch HM236WU1-400 1920*1080 LCD Panel display 0

HM236WU1-400 LCD Panel Shipment Information :

Shipment Policies

Responsibility for Delays and Issues: While we are committed to helping you track your package, please note that we are not responsible for any accidents, delays, or other issues that are the responsibility of the shipping service. We will, however, assist you in tracking your package until it reaches you.

Address Verification: It is crucial to double-check your shipping address before completing your payment. Ensuring that the address is accurate helps prevent delivery issues and delays.

Shipping Notification: Once your package is processed for shipment, you will receive an email notification. This email will include the tracking number, which you can use to monitor your package's status online.

Customs Taxes and Duties: Customers are responsible for any customs taxes and duties applicable in their country. Please be aware of your local regulations regarding import charges to avoid unexpected fees.

Import Charges: Any additional import charges or fees imposed by your country are the buyer's responsibility. If a package cannot be delivered due to reasons attributable to the buyer (such as refusal to sign for the package), the buyer will be responsible for any additional costs incurred.

HM236WU1-400 LCD Panel Return and Warranty Information :

Return Policy

Inspection and Exchange: All goods undergo two inspections before shipment to guarantee quality. If you are not satisfied with your purchase, you may exchange the item within one week. To initiate an exchange, please contact us within 24 hours of receiving your purchase.

Condition of Return Items: Items must be returned in their original condition, including the box and all accessories. Items showing signs of man-made defects, such as breakage or scratches, are not eligible for return or exchange.

Return Shipping: For returning any items, please use EMS (Express Mail Service) or your local postal service to send the item back to us.

Warranty Policy

Warranty Duration: All items come with a six-month warranty, covering any issues not caused by human error or damage. If your item has a defect not caused by man-made problems, we will replace it for you free of charge.

Best After-Sale Service: We pride ourselves on providing excellent after-sale service. Should any problems arise, we are dedicated to resolving them to ensure customer satisfaction.

HM236WU1-400 LCD Panel FAQ :

Q: How long is the warranty of HM236WU1-400 ?

A: 90days warranty .

Q: How can I trace my order of HM236WU1-400 ?

A: we will give you tracking number then you can trace your order from website.

Q: Can I pay my goods HM236WU1-400 by credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: Do you accept sample orders for HM236WU1-400 ?

A: Of course!sample order is welcome !
