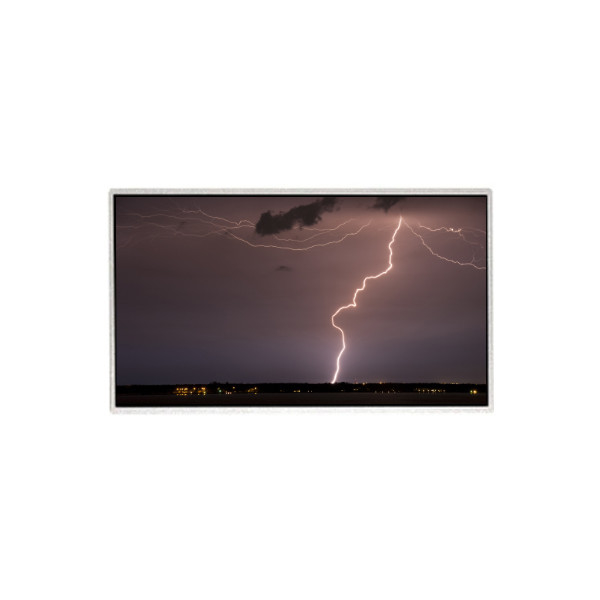

HM236WU1-200 23.6 inch 1920*1080 30 pins LCD Screen Panel Parts

Brand Name:	BOE
Model Number:	HM236WU1-200
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

HM236WU1-200

Diagonal Size:

23.6"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1920(RGB)×1080, FHD 93PPI

Operating Mode:

RGB Vertical Stripe

Active Area:

521.28(W)×293.22(H) Mm

Light Source:

4 StringsWLED, 30K Hours, Without Driver

Designed For:

Desktop Monitor

Signal Interface:

LVDS (2 Ch, 8-bit), 30 Pins Connector

Environment:

Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C

Supply Ability:

100000 Unit/Units per Month

Product Description

HM236WU1-200 23.6 inch 1920*1080 30 pins LCD Screen Panel Parts

HM236WU1-200 LCD Panel Product details :

Brand	BOE
Model P/N	HM236WU1-200
Diagonal Size	23.6"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1080, FHD 93PPI
Pixel Format	RGB Vertical Stripe
Active Area	521.28(W)×293.22(H) mm
Bezel Opening	525.22(W)×297.22(H) mm
Outline Size	544.8(W)×320.5(H)×9.6(D) mm
Surface	Antiglare (Haze 25%), Hard coating (3H)
Brightness	200 cd/m² (Typ.)
Contrast Ratio	700:1 (Typ.) (TM)
Viewing Angle	45/45/15/35 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Best View on	6 o'clock
Response Time	1.5/3.5 (Typ.)(Tr/Td)
Display Colors	16.7M 72%NTSC
Lamp Type	4 stringsWLED, 30K hours, Without Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	2.20Kgs (Typ.)
Application	Desktop Monitor
Signal Interface	LVDS (2 ch, 8-bit), 30 pins Connector
Input Voltage	5.0V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C

HM236WU1-200 LCD Panel Shipment :

· We're not responsible for any accidents delays or other issues that are the resposibility of the shipping service.But we will help you to track the package until you get.

· Please make sure to double check your address before completing your payment.

· An email will be sent as package is process for shipment .We will provide tracking number for you to check the package online.

· Customers are responsible for customs taxes and duties where applicable.

· Any import charges or fees are the buyer's responsibility. If the package can't be delivered because of the buyers reason(including refusing to sign), buyer should afford all the extra cost!

HM236WU1-200 LCD Panel Shipping and Package :

HM236WU1-200 23.6 inch 1920*1080 30 pins LCD Screen Panel Parts 0

HM236WU1-200 LCD Panel Shipment Information :

Shipment Policies

Responsibility for Delays and Issues: While we are committed to helping you track your package, please note that we are not responsible for any accidents, delays, or other issues that are the responsibility of the shipping service. We will, however, assist you in tracking your package until it reaches you.

Address Verification: It is crucial to double-check your shipping address before completing your payment. Ensuring that the address is accurate helps prevent delivery issues and delays.

Shipping Notification: Once your package is processed for shipment, you will receive an email notification. This email will include the tracking number, which you can use to monitor your package's status online.

Customs Taxes and Duties: Customers are responsible for any customs taxes and duties applicable in their country. Please be aware of your local regulations regarding import charges to avoid unexpected fees.

Import Charges: Any additional import charges or fees imposed by your country are the buyer's responsibility. If a package cannot be delivered due to reasons attributable to the buyer (such as refusal to sign for the package), the buyer will be responsible for any additional costs incurred.

HM236WU1-200 LCD Panel Return and Warranty Information :

Return Policy

Inspection and Exchange: All goods undergo two inspections before shipment to guarantee quality. If you are not satisfied with your purchase, you may exchange the item within one week. To initiate an exchange, please contact us within 24 hours of receiving your purchase.

Condition of Return Items: Items must be returned in their original condition, including the box and all accessories. Items showing signs of man-made defects, such as breakage or scratches, are not eligible for return or exchange.

Return Shipping: For returning any items, please use EMS (Express Mail Service) or your local postal service to send the item back to us.

Warranty Policy

Warranty Duration: All items come with a six-month warranty, covering any issues not caused by human error or damage. If your item has a defect not caused by man-made problems, we will replace it for you free of charge.

Best After-Sale Service: We pride ourselves on providing excellent after-sale service. Should any problems arise, we are dedicated to resolving them to ensure customer satisfaction.

HM236WU1-200 LCD Panel FAQ :

Q: Can you tested the HM236WU1-200 before shipping ?

A: Of course , our lcd panel HM236WU1-200 was Strictly tested before shipping.

Q: How to order HM236WU1-200 ?

A: We accept T/T , Paypal , western union .

Q: How long the warranty of the lcd HM236WU1-200 ?

A: 90 days .

Q: What happen if the lcd panel HM236WU1-200 I received can't work ?

A: HM236WU1-200 was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .
