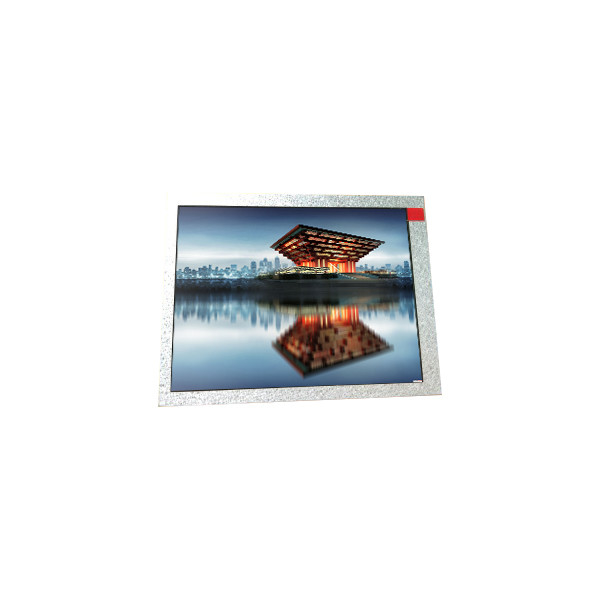

TM070RBHG04-40 7.0 inch 800*480 LCD Touch Screen for Automotive Display

All Category

Floor Standing Digital Signage

TM070RBHG04-40 7.0 inch 800*480 LCD Touch Screen for Automotive Display

Brand Name:	TIANMA
Model Number:	TM070RBHG04-40
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TM070RBHG04-40

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

800(RGB)×480, WVGA 134PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

154.08(W)×85.92(H) Mm

Touchscreen:

4-wire Resistive Touch

Used For:

Automotive Display

Interface Type:

Parallel RGB (1 Ch, 6/8-bit), 50 PinsFPC

Power Supply:

3.3V (Typ.)

Supply Ability:

100000 Unit/Units per Month

Product Description

TM070RBHG04-40 7.0 inch 800*480 LCD Touch Screen for Automotive Display

TM070RBHG04-40 LCD Panel Product details :

Brand	TIANMA
Model P/N	TM070RBHG04-40
Diagonal Size	7.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×480, WVGA 134PPI
Pixel Format	RGB Vertical Stripe
Active Area	154.08(W)×85.92(H) mm
Bezel Opening	-
Outline Dim.	164.9(W)×100(H)×7.1(D) mm
Treatment	Antiglare
Luminance	280 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
View Direction	12 o'clock
Response Time	25 (Typ.)(Tr+Td)
Viewing Angle	80/80/60/80 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	262K/16.7M 50%NTSC
Light Source	WLED [3S8P], W/O Driver
Weight	198g (Typ.)
Designed For	Automotive Display
Frame Rate	-
Touch Panel	4-wire Resistive Touch
Interface Type	Parallel RGB (1 ch, 6/8-bit), 50 pinsFPC
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C

TM070RBHG04-40 LCD Panel Note :

Model Verification:

Please ensure that the model number you need is exactly the same as the model number you have ordered. We will ship the LCD panel based strictly on the model specified in your order. Ensuring the correct model number is crucial to avoid any compatibility issues.

Comprehensive Testing:

We conduct 100% testing on each LCD panel to ensure it meets our stringent quality standards. This thorough testing process guarantees that you receive a fully functional and reliable product. Our commitment to quality ensures that each panel is meticulously checked before it is shipped to you.

TM070RBHG04-40 LCD Panel Shipping and Package :

TM070RBHG04-40 7.0 inch 800*480 LCD Touch Screen for Automotive Display 0

TM070RBHG04-40 LCD Panel Shipping Guidelines:

Address Confirmation:

It is crucial to verify that the shipping address provided in your order is accurate. We will ship the LCD panel to the address listed in the order. If you need the panel to be shipped to a different address, please email us the new address immediately after making the payment to avoid any shipping errors.

Shipment Timeline:

Your order will be processed and shipped within three business days after we have received your payment. Please note that business days do not include weekends or public holidays, so take this into account when estimating your delivery date.

TM070RBHG04-40 LCD Panel ESTIMATED DELIVERY TIME :

Standard Shipping:

The estimated delivery time for standard shipping is between 10 to 35 working days. This timeframe may vary depending on the destination and other factors such as customs processing and local postal services.

Expedited Shipping:

For a faster delivery option, expedited shipping is available with an estimated delivery time of 4 to 7 working days. This option is ideal if you need the LCD panel urgently and prefer a quicker shipping method.

TM070RBHG04-40 LCD Panel FAQ :

Q: Can you give me a discount if I need a large quantity of TM070RBHG04-40 ?

A: Of course!If you make a large order, we will give you a discount.

Q: If I place order now,when will you ship the goods of TM070RBHG04-40 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: How can I trace my order of TM070RBHG04-40 ?

A: we will give you tracking number then you can trace your order from website.

Q: Do you accept sample orders of TM070RBHG04-40 ?

A: Of course!sample order is welcome !
