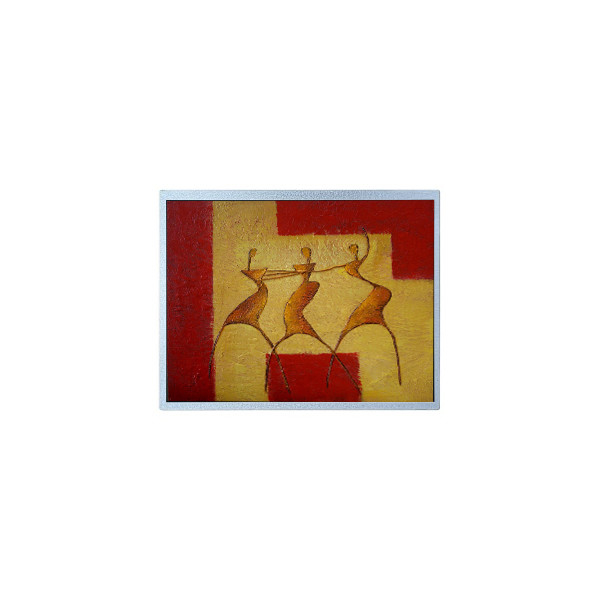

AM-19201200FTZQW-T05 1920*1200 10.1 inch PCAP LCD Screen Module

Brand Name:	AMPIRE
Model Number:	AM-19201200FTZQW-T05
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

AM-19201200FTZQW-T05

Diagonal Size:

10.1"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1920(RGB)×1200, WUXGA 224PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

216.806(W)×135.504(H) Mm

Frame Rate:

Used For:

Industrial

Supply Ability:

100000 Unit/Units per Month

Product Description

AM-19201200FTZQW-T05 1920*1200 10.1 inch PCAP LCD Screen Module

AM-19201200FTZQW-T05 LCD Panel Product details :

Brand	AMPIRE
Model P/N	AM-19201200FTZQW-T05
Diagonal Size	10.1"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1200, WUXGA 224PPI
Pixel Format	RGB Vertical Stripe
Active Area	216.806(W)×135.504(H) mm
Bezel Opening	-
Outline(mm)	227.72(W)×146.13(H)×7.2(D)
Luminance	320 (Typ.)(cd/m²)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Good View at	Symmetry
Color Depth	16.7M 50% NTSC
Mass	-
Refresh Rate	60Hz
Treatment	-
Contrast Ratio	800 : 1 (Typ.) (TM)
Work Mode	AHVA, Normally Black, Transmissive
Response	25 (Typ.)(Tr+Td) ms
Backlight	WLED , 30K hours , With LED Driver
Used for	Industrial
Touchscreen	PCAP, I²C
Signal Type	eDP (2 Lanes), eDP1.2, 30 pins Connector
Voltage Supply	3.3V (Typ.)
Max. Ratings	Storage Temp.: -20 ~ 60 °C Operating Temp.: -10 ~ 60 °C
AM-19201200FTZQW-T05 1920*1200 10.1 inch PCAP LCD Screen Module

AM-19201200FTZQW-T05 LCD Panel Note :

Model Verification:

Please ensure that the model number you need is exactly the same as the model number you have ordered. We will ship the LCD panel based strictly on the model specified in your order. Ensuring the correct model number is crucial to avoid any compatibility issues.

Comprehensive Testing:

We conduct 100% testing on each LCD panel to ensure it meets our stringent quality standards. This thorough testing process guarantees that you receive a fully functional and reliable product. Our commitment to quality ensures that each panel is meticulously checked before it is shipped to you.

AM-19201200FTZQW-T05 LCD Panel Shipping and Package :

AM-19201200FTZQW-T05 1920*1200 10.1 inch PCAP LCD Screen Module 0

AM-19201200FTZQW-T05 LCD Panel Shipping Guidelines:

Address Confirmation:

It is crucial to verify that the shipping address provided in your order is accurate. We will ship the LCD panel to the address listed in the order. If you need the panel to be shipped to a different address, please email us the new address immediately after making the payment to avoid any shipping errors.

Shipment Timeline:

Your order will be processed and shipped within three business days after we have received your payment. Please note that business days do not include weekends or public holidays, so take this into account when estimating your delivery date.

AM-19201200FTZQW-T05 LCD Panel ESTIMATED DELIVERY TIME :

Standard Shipping:

The estimated delivery time for standard shipping is between 10 to 35 working days. This timeframe may vary depending on the destination and other factors such as customs processing and local postal services.

Expedited Shipping:

For a faster delivery option, expedited shipping is available with an estimated delivery time of 4 to 7 working days. This option is ideal if you need the LCD panel urgently and prefer a quicker shipping method.

AM-19201200FTZQW-T05 LCD Panel FAQ :

Q: How long will I receive my goods of lcd AM-19201200FTZQW-T05 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: When will my order AM-19201200FTZQW-T05 ship?

A: The order are shipped within 1-2 working days after received the payment.

Q: Do you accept the sample order?

A: Yes , sample order is welcome.

Q: What does "We may ship a 100% compatible part number for your screen" mean?

A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
