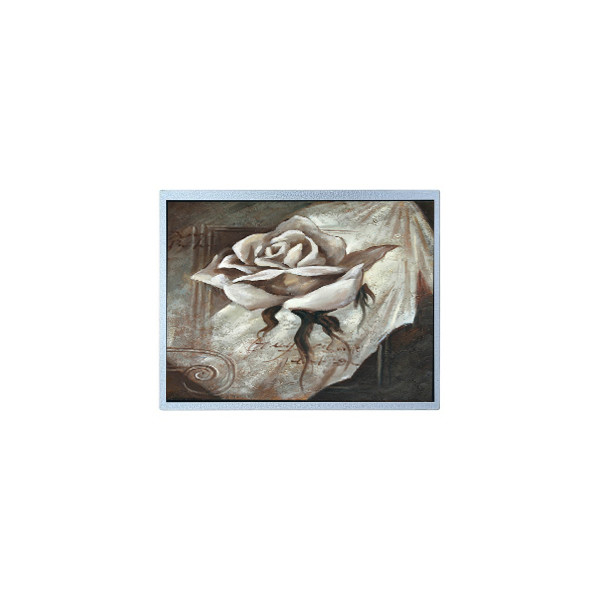

Hot Sell 10.1 inch AM-1280800W4TZQW-T99H 16.7M LCD Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | AMPIRE |
| Model Number: | AM-1280800W4TZQW-T99H |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | AM-1280800W4TZQW-T99H | Diagonal Size: | 10.1" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1280(RGB)×800, WXGA 149PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 216.96(W)×135.6(H) Mm |
| Frame Rate: | 60Hz | Used For: | Industrial、Outdoor High Brightness |
Product Description
Hot Sell 10.1 inch AM-1280800W4TZQW-T99H 16.7M LCD Screen
AM-1280800W4TZQW-T99H LCD Panel Product details :
| Brand | AMPIRE |
| Model P/N | AM-1280800W4TZQW-T99H |
| Diagonal Size | 10.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×800, WXGA 149PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 216.96(W)×135.6(H) mm |
| Bezel Opening | - |
| Outline Size | 247(W)×166(H)×10.7(D) mm |
| Surface | - |
| Brightness | 850 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Display Mode | IPS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Display Colors | 16.7M NTSC |
| Lamp Type | 7S4PWLED, 50K hours, Without Driver |
| Frequency | 60Hz |
| Touch Screen | PCAP, I²C |
| Panel Weight | - |
| Application | Industrial,Outdoor High Brightness |
| Signal Interface | LVDS (1 ch, 8-bit), 40 pinsConnector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| Hot Sell 10.1 inch AM-1280800W4TZQW-T99H 16.7M LCD Screen | |
AM-1280800W4TZQW-T99H LCD Panel Shipping and Package :
AM-1280800W4TZQW-T99H LCD Panel FAQ :
Q:Can you declared low value for my order when shipping?
A:Yes, We can do it for you if you need.
Q: What happen if the lcd panel AM-1280800W4TZQW-T99H I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
