Brand Name: | AMPIRE |
Model Number: | AM-1280800N2TZQW-T48H |
MOQ: | 1 pcs |
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Payment Terms: | T/T, Western Union |

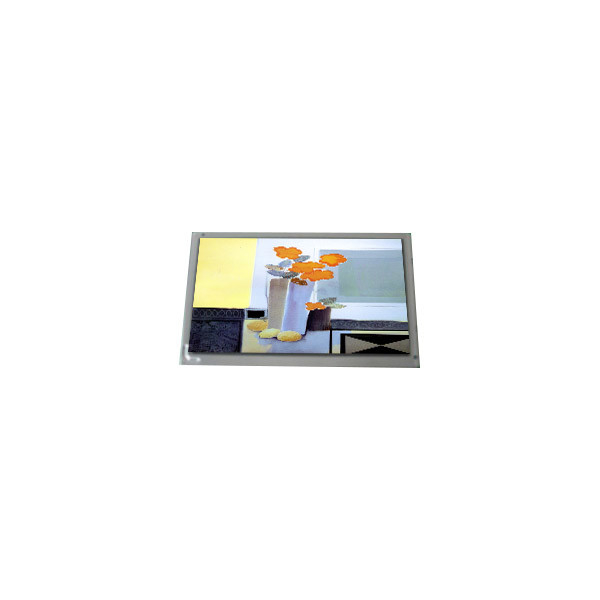

AM-1280800N2TZQW-T48H 10.1 inch TFT 60Hz LCD Screen Display Monitor
AM-1280800N2TZQW-T48H LCD Panel Product details :
Brand | AMPIRE |
Model P/N | AM-1280800N2TZQW-T48H |
Diagonal Size | 10.1" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1280(RGB)×800, WXGA 149PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 216.96(W)×135.6(H) mm |
Bezel Opening | 220.76(W)×140.4(H) mm |
Outline(mm) | 247(W)×166(H)×9.55(D) |
Luminance | 850 (Typ.)(cd/m²) |
Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
Good View at | Symmetry |
Color Depth | 16.7M 45% NTSC |
Mass | TBD |
Refresh Rate | 60Hz |
Treatment | - |
Contrast Ratio | 800 : 1 (Typ.) (TM) |
Work Mode | IPS, Normally Black, Transmissive |
Response | 25 (Typ.)(Tr+Td) ms |
Backlight | 7S6P WLED , 50K hours , No Driver |
Used for | Industrial,Outdoor High Brightness |
Touchscreen | PCAP, USB |
Signal Type | LVDS (1 ch, 8-bit), 40 pins Connector |
Voltage Supply | 3.3V (Typ.) |
Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
AM-1280800N2TZQW-T48H 10.1 inch TFT 60Hz LCD Screen Display Monitor |
AM-1280800N2TZQW-T48H LCD Panel Shipping and Package :
AM-1280800N2TZQW-T48H LCD Panel FAQ :
Q: How long is the warranty ?
A: We offer 90days warranty .
Q:Can You declare my order of AM-1280800N2TZQW-T48H to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q:Can I pay my order of AM-1280800N2TZQW-T48H via credit card ?
A:Yes!you can use your credit card through your Paypal account.
Q: How long will I receive my goods AM-1280800N2TZQW-T48H ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
