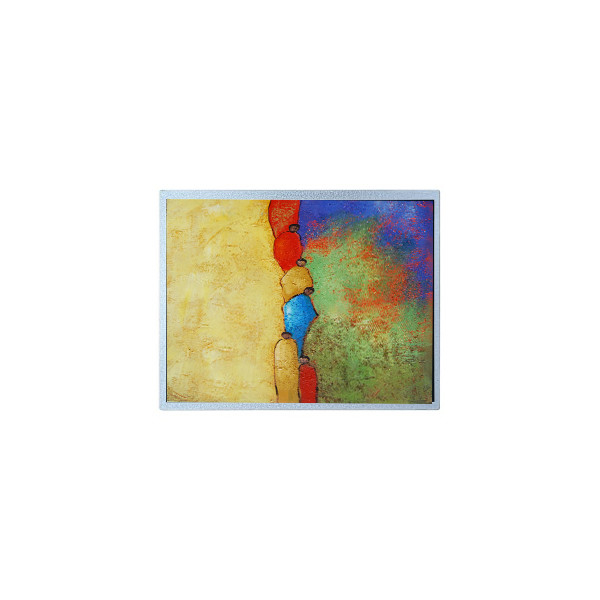

Name: Original 10.1 inch AM-1280800JTZQW-T01 TFT PCAP LCD Screen Parts
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: AM-1280800JTZQW-T01
Availability: InStock

Brand Name:	AMPIRE
Model Number:	AM-1280800JTZQW-T01
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

AM-1280800JTZQW-T01

Diagonal Size:

10.1"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1280(RGB)×800, WXGA 149PPI

Pixel Format:

RGBW Vertical Stripe

Active Area:

216.96(W)×135.6(H) Mm

Used For:

Industrial

Frequency:

60Hz

Supply Ability:

100000 Unit/Units per Month

Product Description

Original 10.1 inch AM-1280800JTZQW-T01 TFT PCAP LCD Screen Parts

AM-1280800JTZQW-T01 LCD Panel Product details :

Brand	AMPIRE
Model P/N	AM-1280800JTZQW-T01
Diagonal Size	10.1"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)×800, WXGA 149PPI
Pixel Format	RGB Vertical Stripe
Active Area	216.96(W)×135.6(H) mm
Bezel Opening	-
Outline Size	229.46(W)×149.1(H)×4.31(D) mm
Surface	-
Brightness	350 cd/m² (Typ.)
Contrast Ratio	800:1 (Typ.) (TM)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Display Mode	Normally Black, Transmissive
Best View on	Symmetry
Response Time	10/15 (Typ.)(Tr/Td)
Display Colors	16.7M
Lamp Type	WLED, With LED Driver
Frequency	60Hz
Touch Screen	PCAP, I²C
Panel Weight	TBD
Application	Industrial
Signal Interface	LVDS (1 ch, 8-bit), 40 pinsConnector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
Original 10.1 inch AM-1280800JTZQW-T01 TFT PCAP LCD Screen Parts

AM-1280800JTZQW-T01 LCD Display Features :

High Quality:

Highest quality touch LCD screen replacement parts.

Repair Utility:

Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.

Thorough Testing:

Each assembly is tested before shipping to ensure 100% functionality.

Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.

AM-1280800JTZQW-T01 LCD Panel Shipping and Package :

Original 10.1 inch AM-1280800JTZQW-T01 TFT PCAP LCD Screen Parts 0

AM-1280800JTZQW-T01 LCD Display Shipping Policy :

Shipping Method:

If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.

Specified Logistics:

If you require a specific logistics company, please inform us in advance.

AM-1280800JTZQW-T01 LCD Display Return Policy :

Product Status:

The product's condition (new or old) will be indicated in the product title.

Return and Exchange Conditions:

If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.

Return Procedure:

When returning the product, please provide a detailed explanation of the issues encountered.

Include actual photos showing the problems with the product.

AM-1280800JTZQW-T01 LCD Panel FAQ :

Q: Do you accept sample orders of AM-1280800JTZQW-T01 ?

A: Of course!sample order is welcome !

Q: Can I pay my order of AM-1280800JTZQW-T01 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: If I place order now,when will you ship the goods of AM-1280800JTZQW-T01 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: How to make payment of AM-1280800JTZQW-T01 ?

A: We accept T/T , Paypal , western union .
