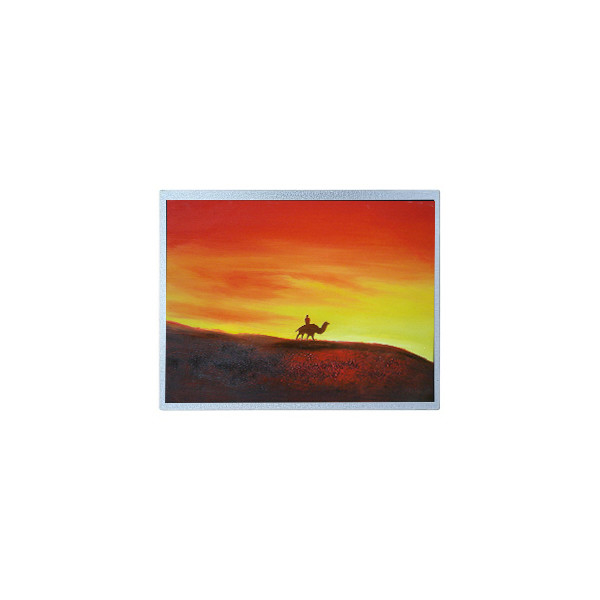

Name: NEW 1024*768 AM-1024768ZTZQW-00H 12.1 inch TFT LCD Screen Module
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: AM-1024768ZTZQW-00H
Availability: InStock

Brand Name:	AMPIRE
Model Number:	AM-1024768ZTZQW-00H
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

AM-1024768ZTZQW-00H

Diagonal Size:

12.1"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1024(RGB)×768, XGA 105PPI

Pixel Format:

RGBW Vertical Stripe

Active Area:

245.76(W)×184.32(H) Mm

Used For:

Industrial

Frequency:

60Hz

Supply Ability:

100000 Unit/Units per Month

Product Description

NEW 1024*768 AM-1024768ZTZQW-00H 12.1 inch TFT LCD Screen Module

AM-1024768ZTZQW-00H LCD Panel Product details :

Brand	AMPIRE
Model P/N	AM-1024768ZTZQW-00H
Diagonal Size	12.1"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)×768, XGA 105PPI
Pixel Format	RGB Vertical Stripe
Active Area	245.76(W)×184.32(H) mm
Bezel Opening	249(W)×187.5(H) mm
Outline Size	260.5(W)×204(H)×8.9(D) mm
Treatment	-
Luminance	600 cd/m² (Typ.)
Contrast Ratio	900 : 1 (Typ.) (TM)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Response	30 (Typ.)(Tr+Td) ms
Good View at	Symmetry
Work Mode	IPS, Normally Black, Transmissive
Color Depth	262K/16.7M
Backlight	WLED, 30K hours, With LED Driver
Mass	500g (Typ.)
Used for	Industrial
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	LVDS (1 ch, 6/8-bit), 20 pinsConnector
Voltage Supply	3.3V (Typ.)
Max. Ratings	Storage Temp.: -40 ~ 90 °C Operating Temp.: -30 ~ 85 °C
NEW 1024*768 AM-1024768ZTZQW-00H 12.1 inch TFT LCD Screen Module

AM-1024768ZTZQW-00H LCD Display Features :

High Quality:

Highest quality touch LCD screen replacement parts.

Repair Utility:

Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.

Thorough Testing:

Each assembly is tested before shipping to ensure 100% functionality.

Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.

AM-1024768ZTZQW-00H LCD Panel Shipping and Package :

NEW 1024*768 AM-1024768ZTZQW-00H 12.1 inch TFT LCD Screen Module 0

AM-1024768ZTZQW-00H LCD Display Shipping Policy :

Shipping Method:

If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.

Specified Logistics:

If you require a specific logistics company, please inform us in advance.

AM-1024768ZTZQW-00H LCD Display Return Policy :

Product Status:

The product's condition (new or old) will be indicated in the product title.

Return and Exchange Conditions:

If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.

Return Procedure:

When returning the product, please provide a detailed explanation of the issues encountered.

Include actual photos showing the problems with the product.

AM-1024768ZTZQW-00H LCD Panel FAQ :

Q: How to do if I can't find the screen that I require in your listings?

A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .

Q: Why big order delivery time are long?

A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!

Q:Can you declared low value for my order when shipping?

A:Yes, We can do it for you if you need.

Q: What happen if the lcd panel AM-1024768ZTZQW-00H I received can't work ?

A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
